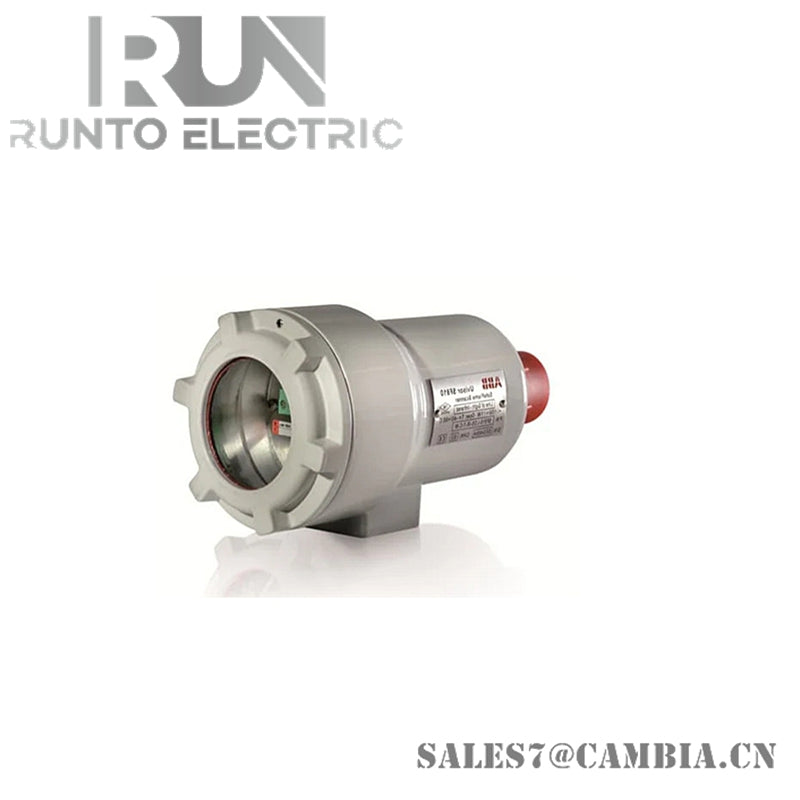

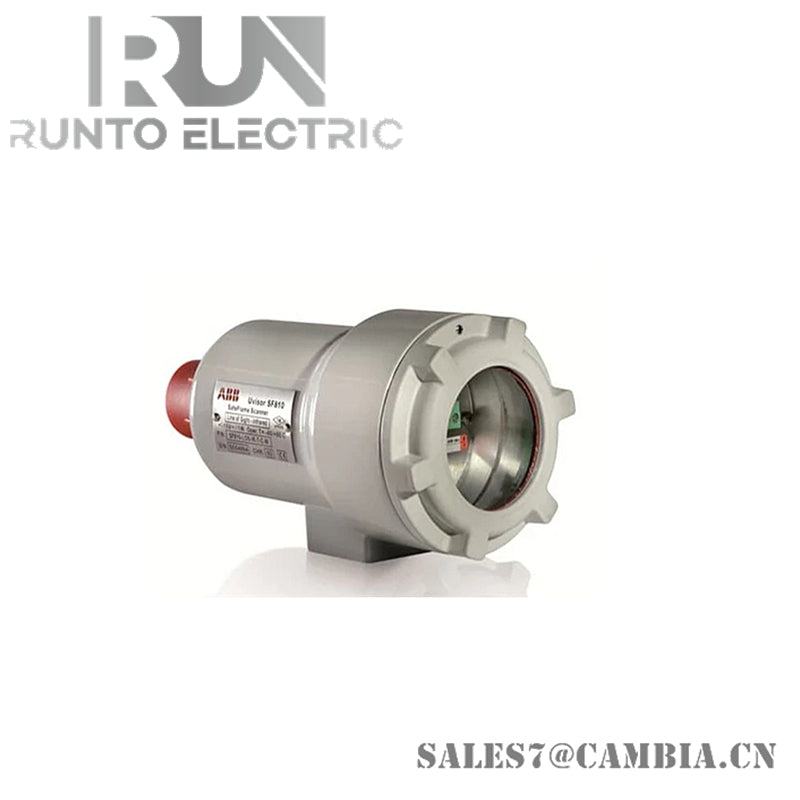

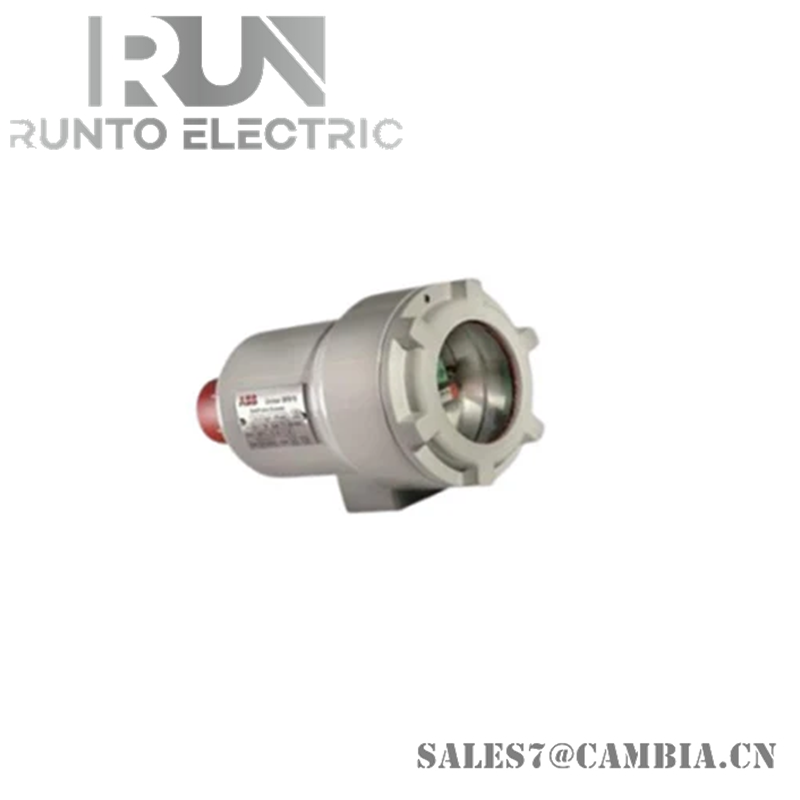

ABB SF810INT-LOS-UV-T-L UV Flame Scanner Module

Description

The ABB SF810INT-LOS-UV-T-L is a solid-state ultraviolet flame scanner module engineered for reliable flame presence detection in industrial and utility boiler applications. It utilizes advanced UV sensing technology to ensure accurate and responsive flame monitoring.

Specifications

• Sensor Type: SiC photodiode
• Spectral Response Peak: 280nm
• Power Supply Voltage: 24VDC (range: 18V to 29VDC)
• Power Supply Current: 150mA typical
• Power Consumption: 3.6W typical, 4W max
• Inrush Current: < 300mA
• Operating Temperature: -20°C to +70°C
• Dimensions: Height 138mm, Width 175mm
• Weight: Approx. 1.3kg (packaged)

Features

• UV Flame Detection: High sensitivity to UV radiation for precise flame monitoring
• Solid-State Design: Durable and maintenance-free SiC photodiode sensor
• Fast Response: Rapid signal processing for real-time flame status
• Wide Voltage Range: Operates reliably across industrial 24VDC systems
• Compact Form Factor: Suitable for tight installation spaces
• Robust Build: Designed for harsh industrial environments
• Flexible Integration: Compatible with ABB burner management systems
