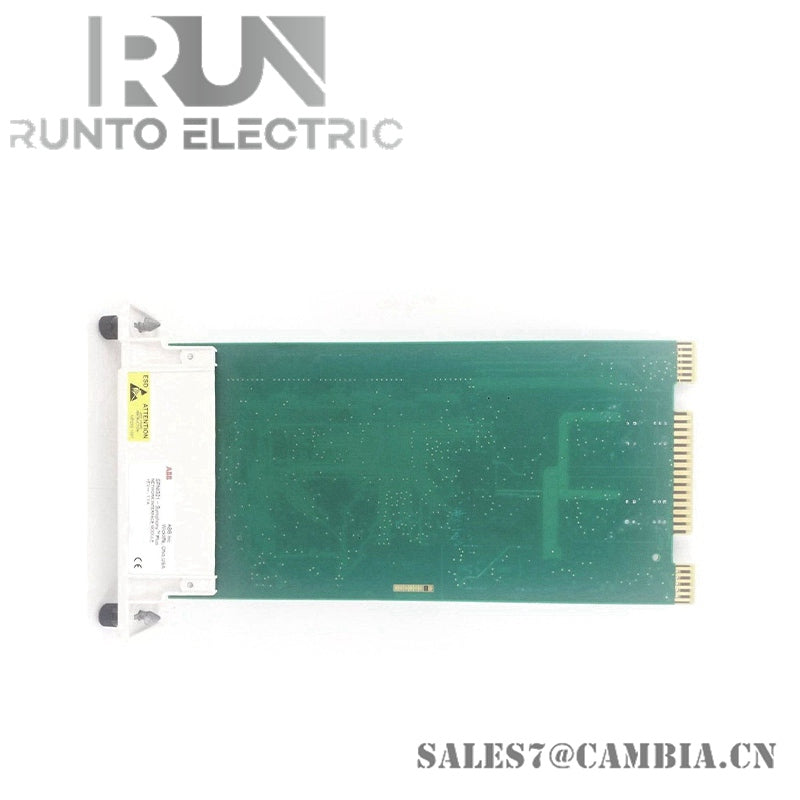

ABB SPBRC400 Communication Interface Module

Description

The ABB SPBRC400 is a communication interface module designed for use in ABB’s Substation Automation systems. It acts as a protocol converter and data concentrator, enabling seamless communication between protection relays, control systems, and SCADA networks.

• Part Number: SPBRC400
• Manufacturer: ABB
• Module Type: Communication Interface / Protocol Converter
• System Compatibility: ABB Substation Automation and protection systems
• Supported Protocols: IEC 61850, DNP3, Modbus, and others
• Processor: High-performance embedded processor for real-time data handling
• Memory: Sufficient onboard memory for data buffering and protocol translation
• Communication Ports: Multiple Ethernet and serial interfaces
• Power Supply: Typically 24–48V DC
• Mounting Style: DIN rail or panel-mounted
• Operating Temperature: -10°C to +55°C
• Compliance: Meets IEC and IEEE standards for substation communication

Features

• Protocol Conversion: Translates between multiple industrial communication protocols
• Data Concentration: Aggregates data from various devices for centralized access
• IEC 61850 Support: Enables modern substation communication with GOOSE messaging
• Flexible Connectivity: Offers Ethernet and serial ports for versatile integration
• Real-Time Processing: Ensures fast and reliable data exchange across systems
• Cybersecurity Features: Supports secure communication protocols and access control
• System Integration: Compatible with ABB’s protection relays and SCADA systems
• Remote Configuration: Allows setup and diagnostics via web-based or software tools
