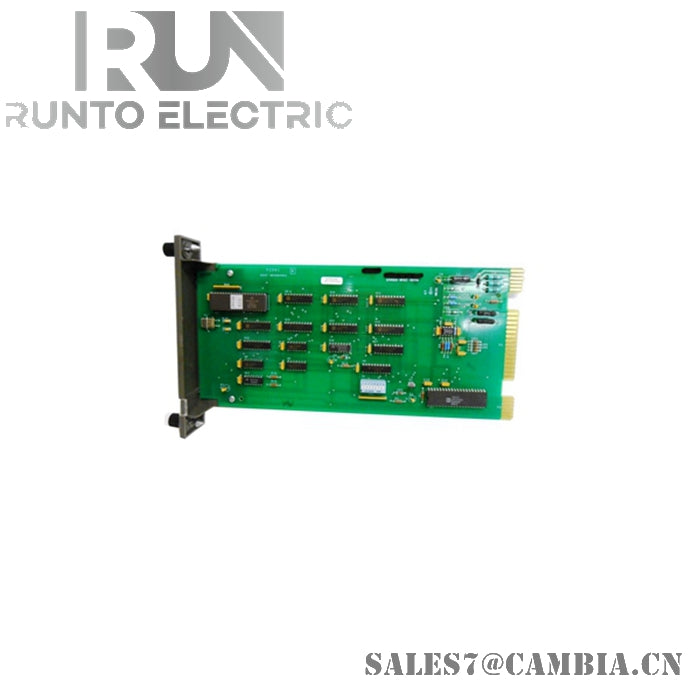

ABB SPSET01 Pulse Input Module

Product Overview

• Product ID: SPSET01
• ABB Type Designation: SPSET01
• Catalog Description: SOE DI and Time Synch Module, 16 Channels
• Long Description: The SPSET01 module provides the first 16 digital input (DI) channels and includes a high-accuracy time synchronization link to a BRC controller, enabling precise Sequence of Events (SOE) recording for critical monitoring and diagnostics in industrial systems.
• Product Type: I/O Module

Technical Specifications

• Channel Type: Digital Input (DI)
• Number of Input Channels: 16
• Functionality:
  • Captures high-resolution SOE data
  • Provides accurate time synchronization interface with BRC controllers

Mechanical Dimensions

• Depth / Length: 76.2 mm
• Height: 358.14 mm
• Width: 279.4 mm

Environmental & Compliance

• WEEE Category: 5 – Small Equipment (No external dimension exceeds 50 cm)
• Number of Batteries: 0

Battery Details (if present):

• Battery Type: Button Cell
• Chemical Composition: Lithium
• Battery Weight: 5 g
