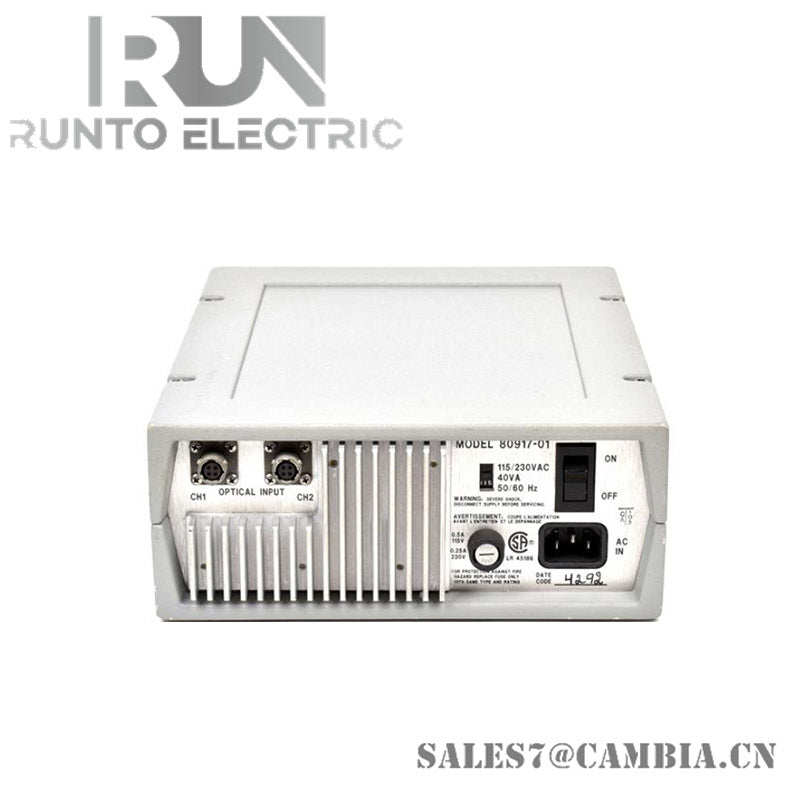

ABB TK15 80917-01 Keyphasor Conditioner and Power Supply

Description

The TK15 is a two-channel instrument that provides power to various transducer types, including proximity, velocity, acceleration, and optical pickup transducers. It also conditions signals for machinery diagnostics, making it a versatile tool for monitoring and troubleshooting.

Specifications

• Input Voltage: 95-125 VAC or 190-250 VAC (switch selectable).
• Input Frequency: 47-63 Hz, single phase.
• Output Voltage:
• +15 VDC (Nominal: +16.2 VDC ±1.2 VDC, Max Current: 150 mA).
• -18 VDC (Nominal: -18.9 VDC ±1.2 VDC, Max Current: 300 mA).
• -24 VDC (Nominal: -24.2 VDC ±1.5 VDC, Max Current: 350 mA).
• Operating Temperature: 0°C to +50°C (32°F to 122°F).
• Storage Temperature: -40°C to +85°C (-40°F to 185°F).
• Dimensions: 89 mm (H) x 221 mm (W) x 305 mm (D).
• Weight: Approximately 3.1 kg (6.8 lbs).

Features

• Keyphasor Signal Generation: Generates temporary Keyphasor signals for diagnostics.
• Signal Conditioning: Handles pre-recorded transducer signals for analysis.
• Rugged Design: Built to withstand harsh industrial environments.
• Wide Compatibility: Supports multiple transducer types for versatile applications.
• Diagnostics: Provides reliable data for machinery condition monitoring.
