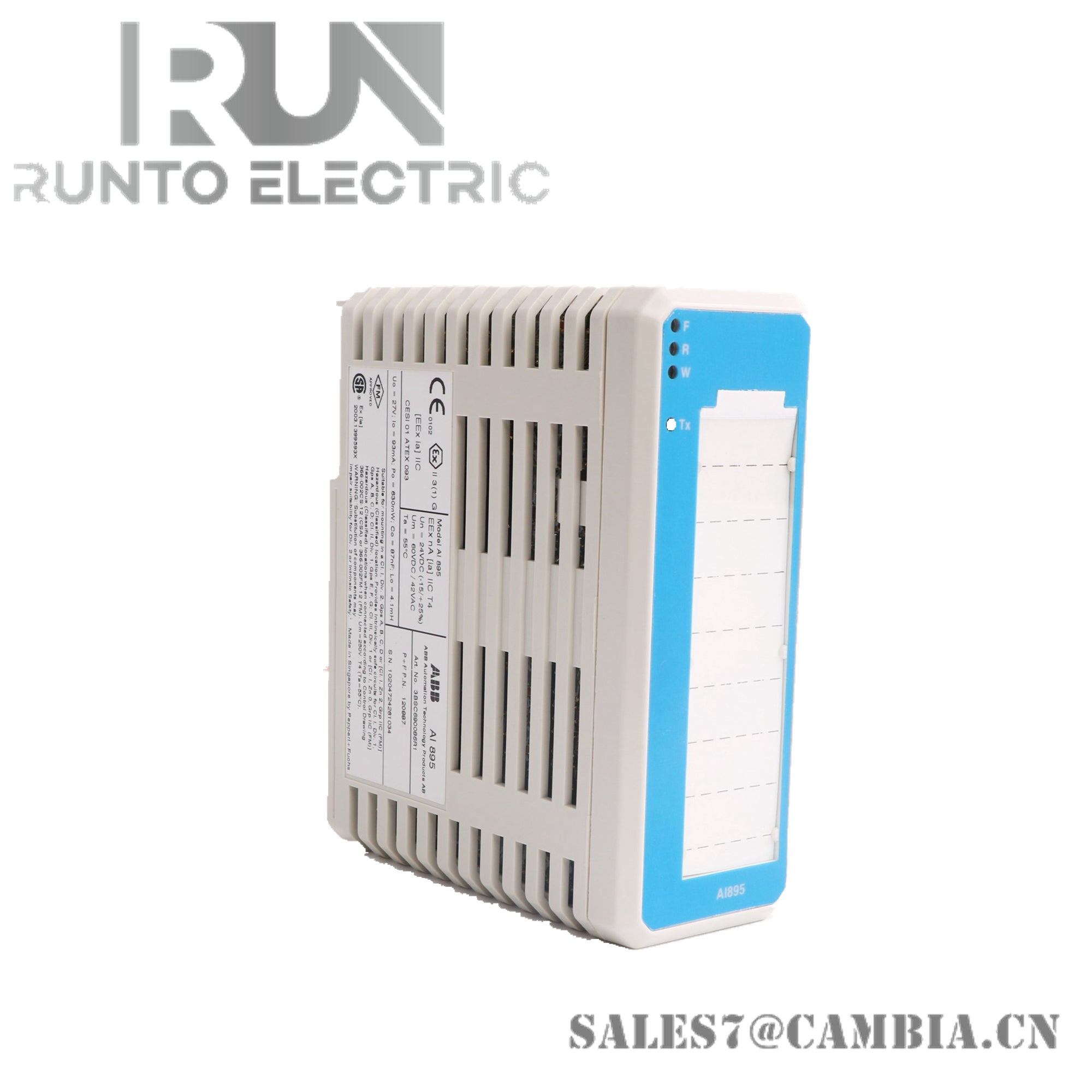

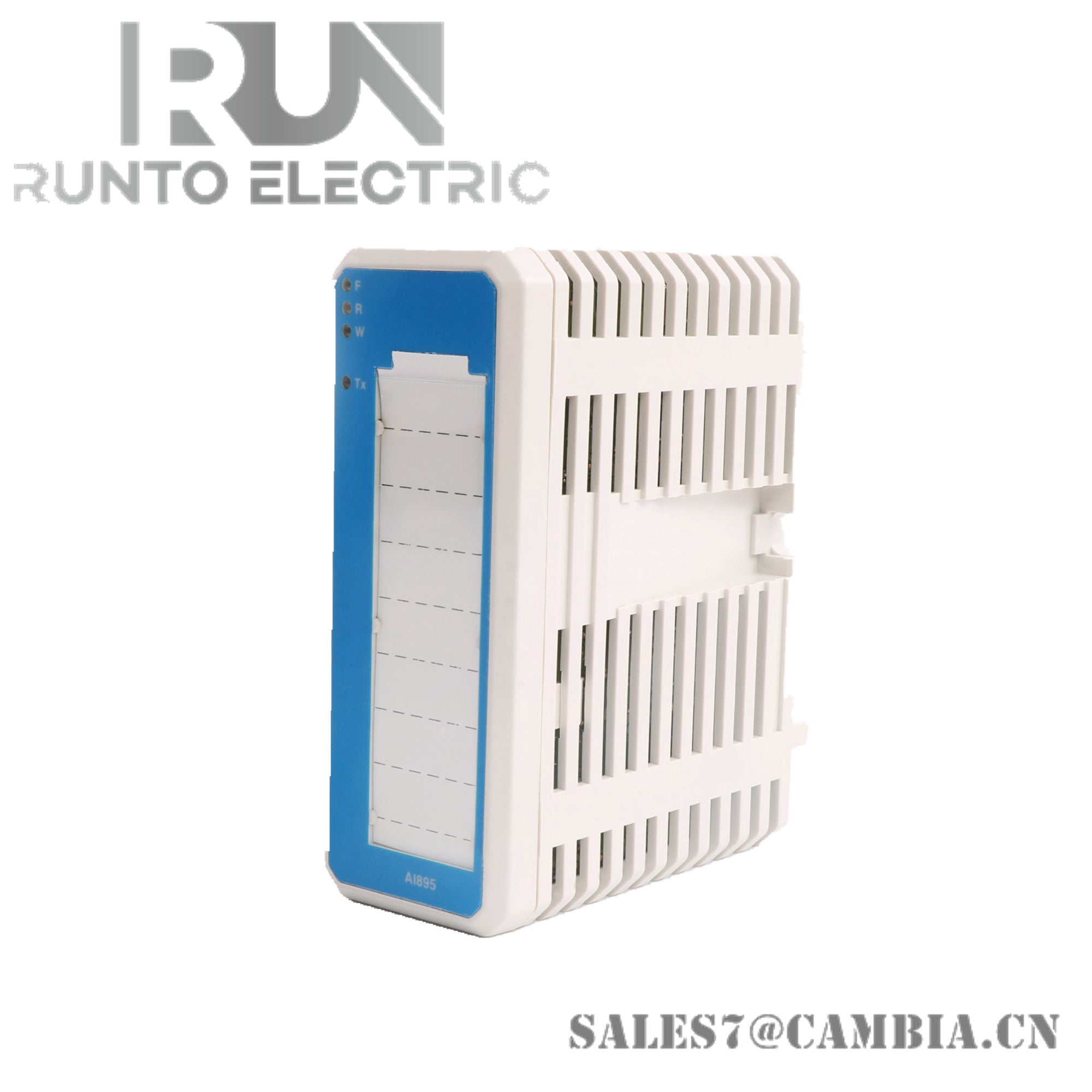

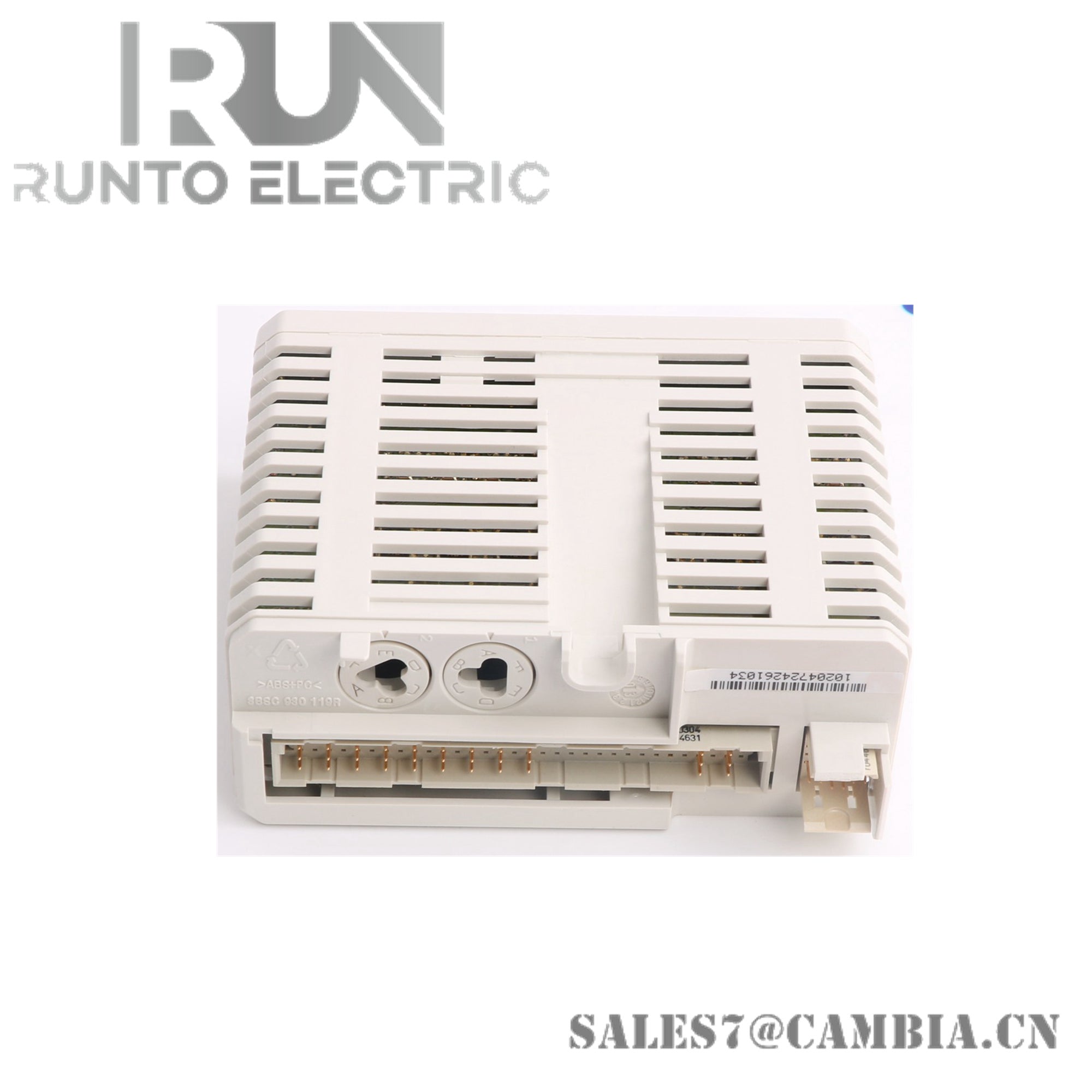

AI895 ABB 3BSC690086R1 Analog Input Module

Runto Electronic Automation Limited

Product Number

AI895 3BSC690086R1

Analog Input Module

ABB AI895 is a high-performance Analog Input Module designed for use in ABB's AC 800M series of programmable logic controllers.

Here are the technical specifications of AI895 module:

1)Number of channels: 8
2)Input signal types: Voltage, Current, Resistance, Thermocouples, RTDs (Resistance Temperature Detectors)
3)Input voltage range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V
4)Input current range: ±20 mA, ±10 mA, ±5 mA, ±2.5 mA
5)Input resistance range: 0-4000 Ω
6)Thermocouple types: B, E, J, K, N, R, S, T
7)RTD types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000
8)Input resolution: 16 bits
9)Input update rate: 10 ms
10)Input isolation: 500 V AC rms
11)Input filter time constant: Configurable
12)Input diagnostics: Overvoltage, Undervoltage, Open circuit, Short circuit
13)Operating temperature range: -40°C to +70°C
14)Storage temperature range: -40°C to +85°C
15)Humidity: 5% to 95% non-condensing
16)Dimensions (HxWxD): 120 mm x 35 mm x 129 mm
17)Weight: 0.2 kg

The AI895 module is designed to provide accurate and reliable analog input measurements for a wide range of industrial applications. It offers a high level of flexibility with support for multiple input signal types and configurable input ranges. The module's advanced diagnostics capabilities help in detecting and diagnosing faults in the input signals, ensuring the overall system reliability.
