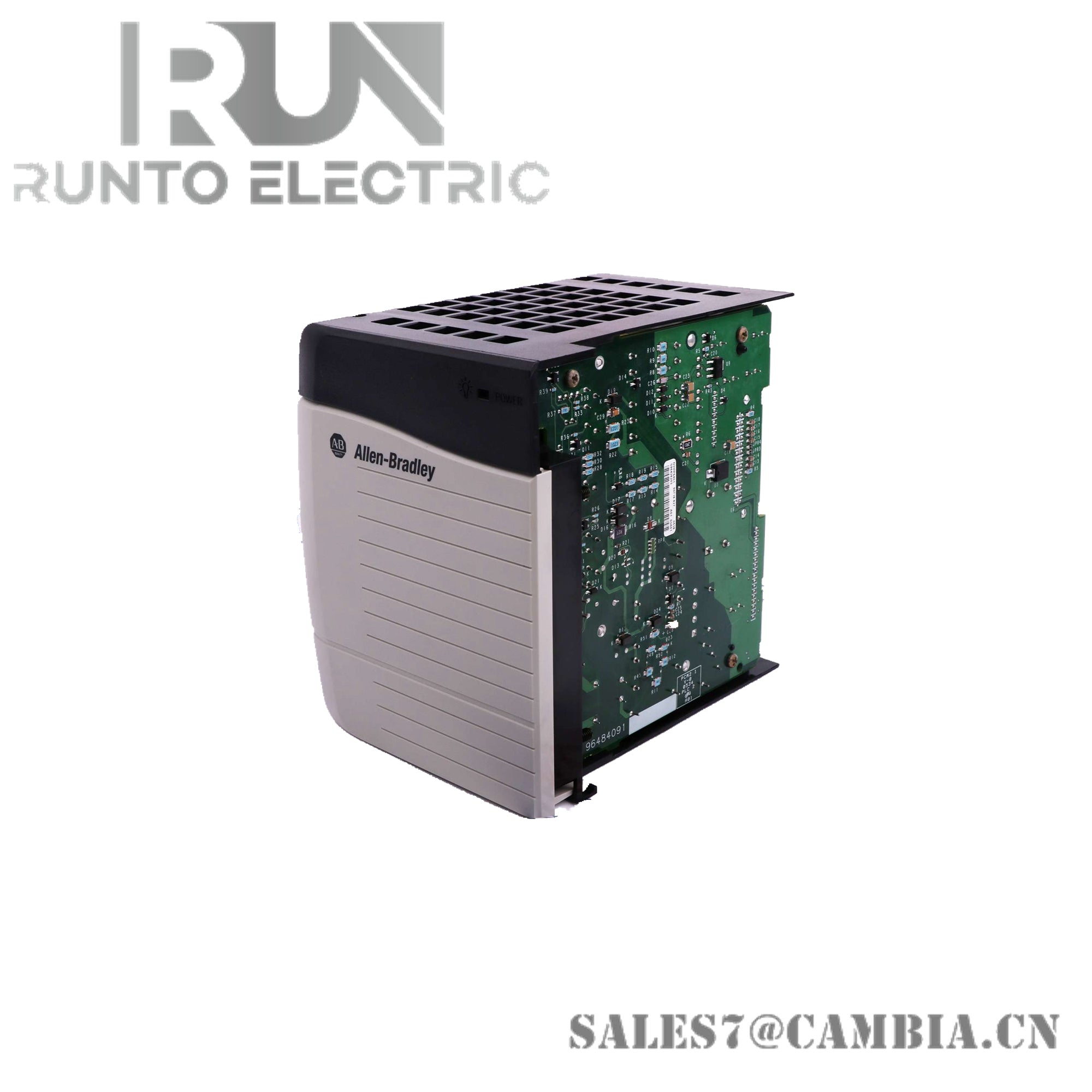

Allen Bradley 1756-PA75 ControlLogix AC Power Supply

Description

The Allen Bradley 1756-PA75 is a high-efficiency AC power supply module for ControlLogix systems, delivering stable 75 W output across a wide input voltage range. It’s designed for industrial environments requiring reliable power and system resilience.

Specifications

• Input Voltage: 85–265 V AC (nominal 120/240 V AC)
• Frequency Range: 47–63 Hz
• Maximum Input Power: 100 VA
• Output Power: 75 W
• DC Output Currents: 10 A @ 5.1 V DC, 2.8 A @ 24 V DC
• Hold-Up Time: 6 cycles @ 120 V AC, 60 Hz
• Isolation Voltage: 250 V reinforced insulation
• Operating Temperature: 0°C to 60°C
• Dimensions: 14.0 × 11.2 × 14.5 cm
• Weight: Approx. 0.95 kg

Features

• Wide Input Range: Operates from 85 to 265 V AC for global deployment
• Stable Output: Supplies consistent power for demanding ControlLogix modules
• Reinforced Isolation: Enhances safety and system integrity
• Hold-Up Protection: Maintains operation during brief power interruptions
• Compact Design: Fits seamlessly into ControlLogix racks
• Industrial Grade: Built for continuous use in harsh environments
• Lifecycle Status: Active and supported by Rockwell Automation
