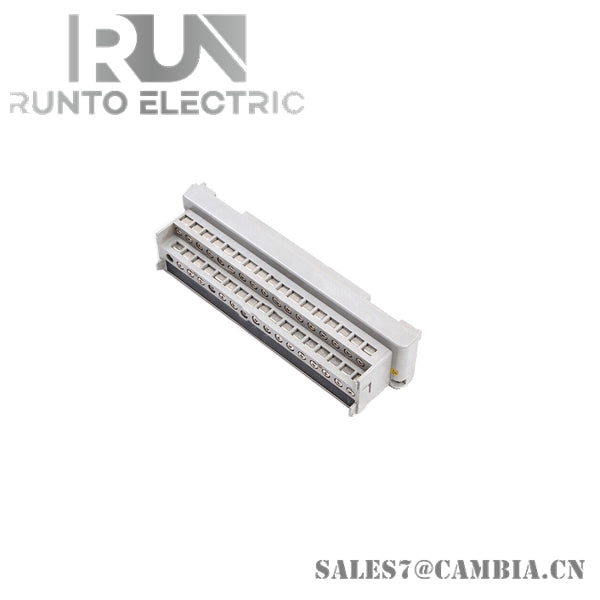

AMM12C | Yokogawa | Voltage Input Multiplexer Module

Description

The AMM12C module provides 12-channel analog input functionality, supporting a wide range of industrial sensors and transmitters. It is designed to facilitate efficient data acquisition and monitoring in industrial automation systems.

• Number of Channels: 12
• Input Types: 4-20mA, 0-20mA, 0-5V, 1-5V
• Accuracy: ±0.1% of span at 25°C
• Operating Temperature Range: -10°C to +55°C
• Storage Temperature Range: -40°C to +85°C
• Humidity: 5% to 95% RH (non-condensing)
• Power Consumption: Max 5W
• Dimensions: 144mm (W) × 129mm (H) × 100mm (D)
• Weight: Approx. 1.5kg
• Mounting: DIN rail mountable
• Protection Class: IP20 (front panel)
• Electromagnetic Compatibility: Compliant with EN 61000-6-2 and EN 61000-6-4 standards
• Safety Standards: Compliant with IEC 61508 for SIL 2 applications
