Basler

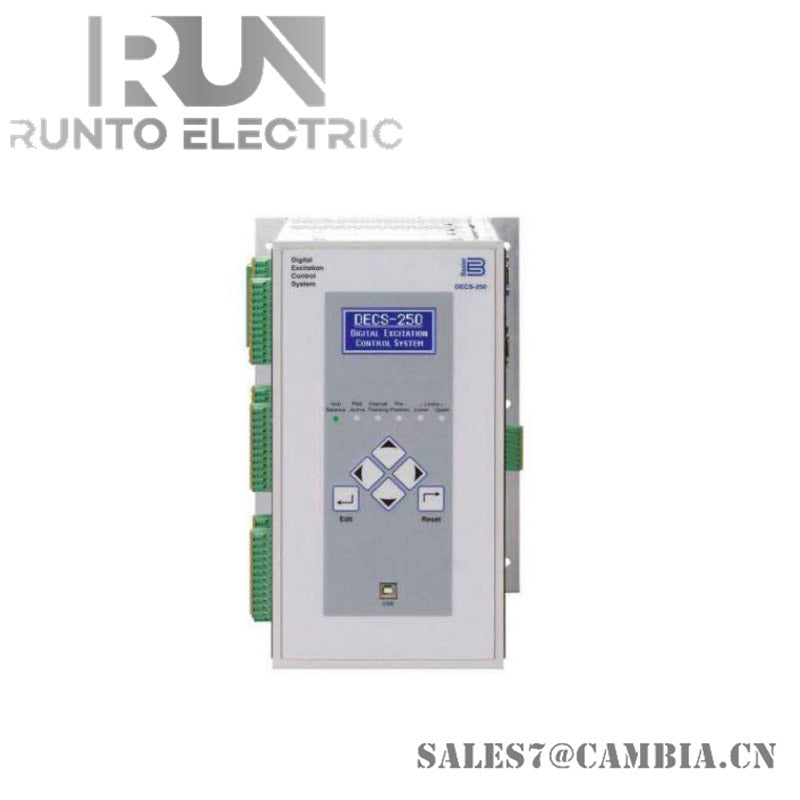

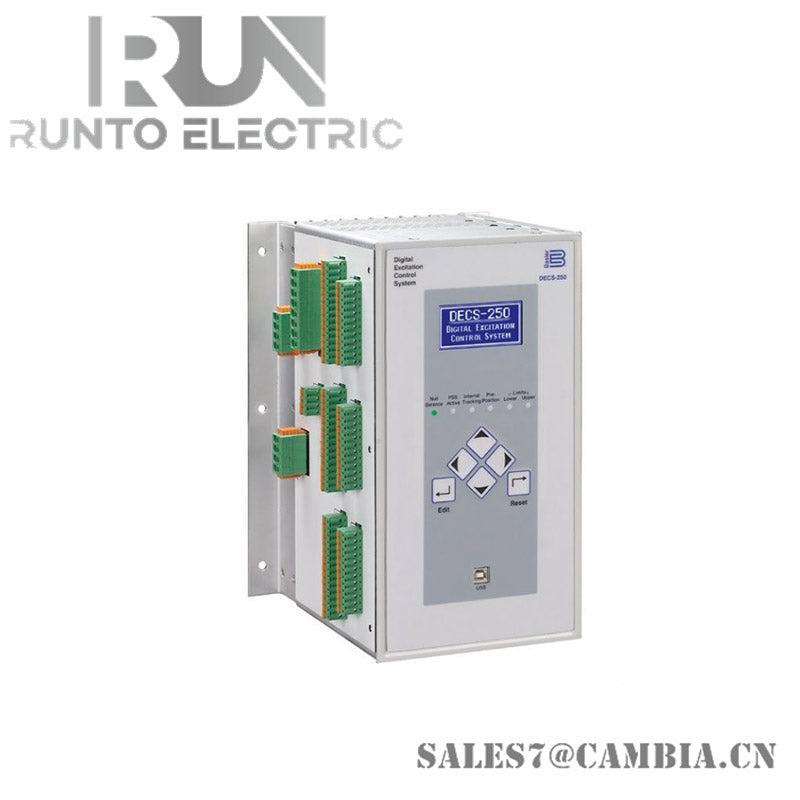

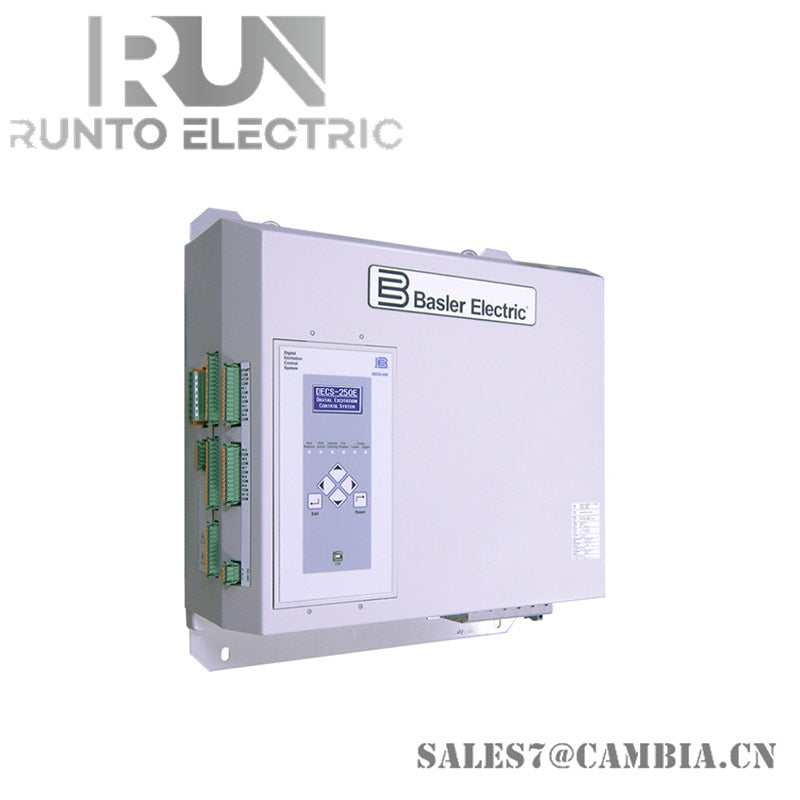

Basler DECS-250 LN2SN1N Digital Excitation Control System
SKU: DECS-250-LN2SN1N
In stock
Description

Overview：

The DECS-250 is a complete digital excitation control system offering precise voltage, var, and Power Factor regulation, exceptional system response, and generator protection. An optional power system stabilizer ensures compliance with stringent grid code requirements. The DECS-250 provides extreme flexibility and functionality in a cost-effective, user-friendly package.

Features:

  • Precise excitation control for synchronous generator or synchronous motor applications.
  • True RMS sensing of single-phase or three-phase voltage and current.
  • Full generator metering capabilities.
  • Modes of operation include Automatic Voltage Regulation, Field Current Regulation, Field Voltage Regulation, Power Factor, and var.
  • Integrated Generator Protection features such as 27/59, 81O/U, 32R, 40Q, EDM, 59F, 51F, Loss of PMG, Field Short Circuit, and 25 Sync Check.
  • Load sharing over Ethernet.
  • Auto-tuning feature with two PID stability groups.
  • Optional integrated power system stabilizer (PSS) compliant with IEEE Std. 421.5 type PSS2A/2B/2C.
  • Configurable protection.
  • Conformal coating applied to certain internal circuitry for added protection and reliability.
  • Overexcitation Limiting with temperature compensation.
  • Underexcitation Limiting.
  • Stator Current Limiting with temperature compensation.
  • Var Limiting.
  • Underfrequency Limiting or V/Hz Limiting.
  • Exciter Diode Monitoring.
  • Trending, Oscillography, and Sequence of Events Recording.
  • Sixteen Programmable Contact Inputs.
  • Twelve Programmable Contact Outputs.
  • Compatible with I/O Expansion Modules like AEM-2020 Analog Expansion Module and CEM-2020 Contact Expansion Module.

New and Origin Item In Stock
With one year warranty.

For inquiries, please contact sales7@cambia.cn.

  • Lower your support costs.
  • Provide ongoing availability of automation replacement parts.

Quantity available: 10
Warranty: 12 months.

Technical specifications, manuals, and data sheets available.
