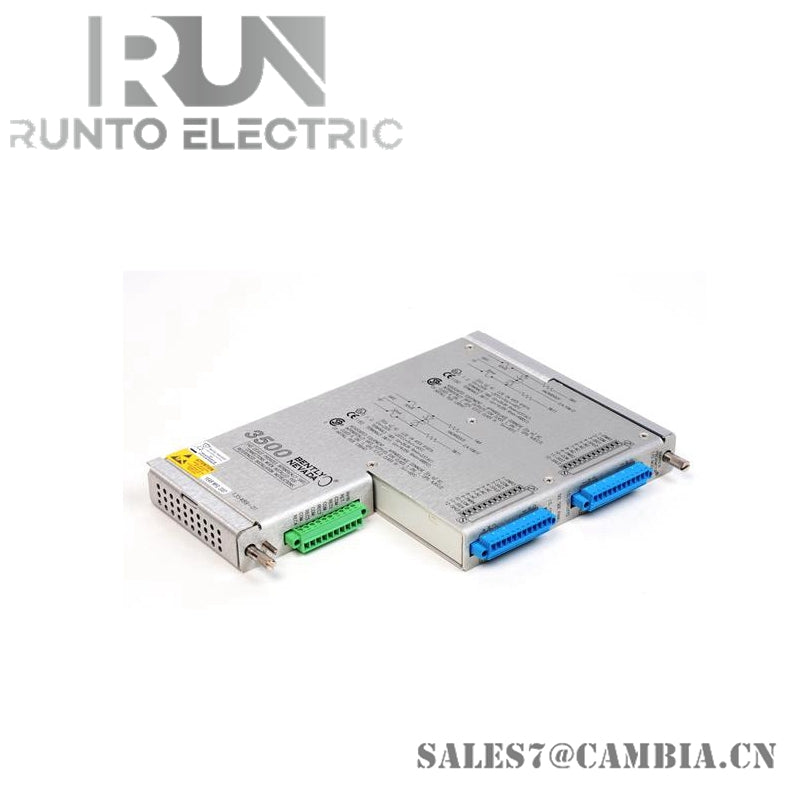

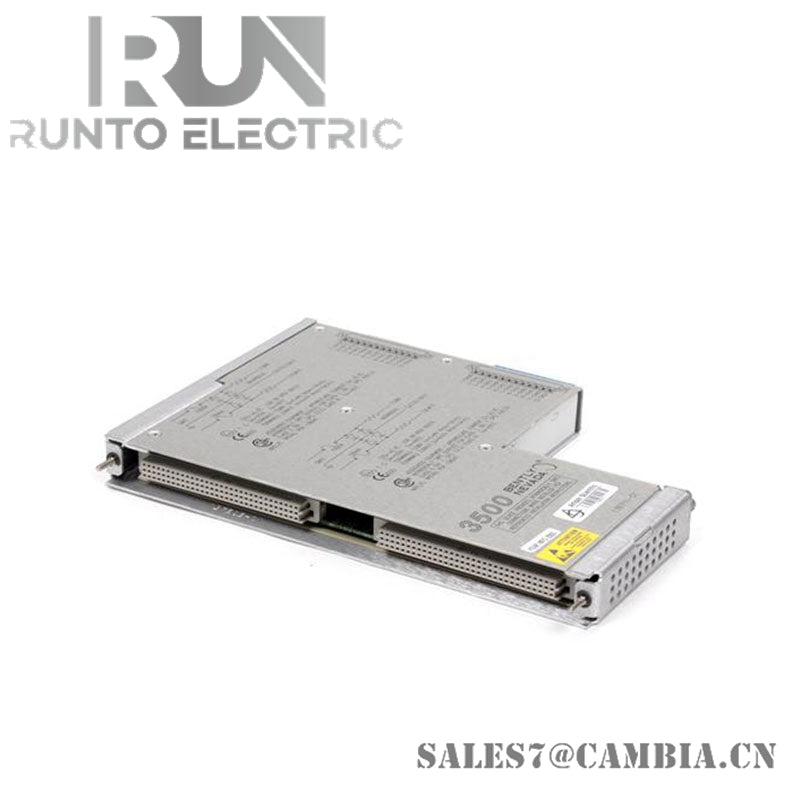

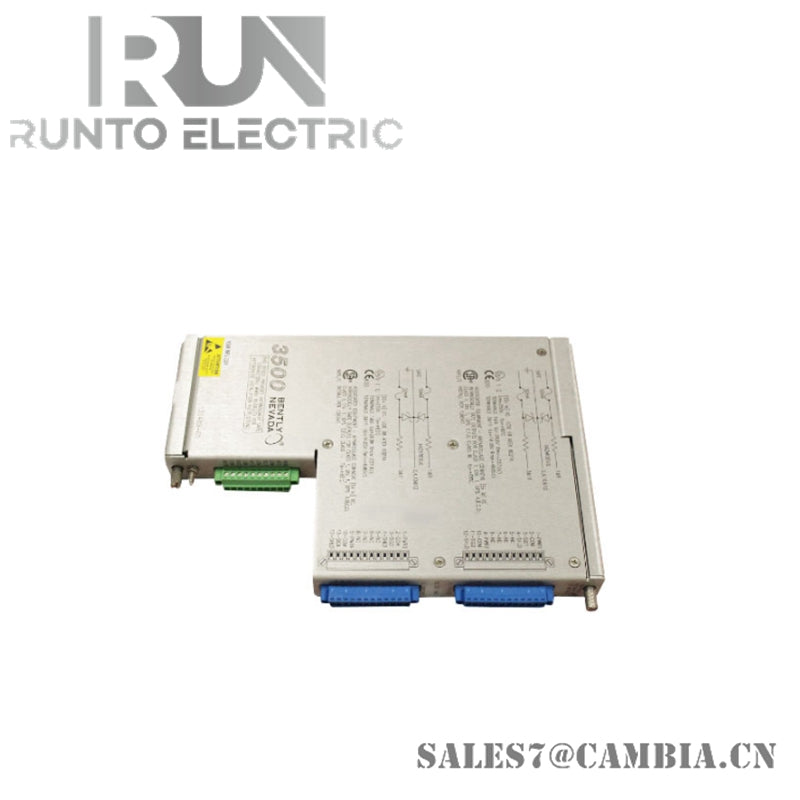

Bently Nevada 136603-01 Process Variable Monitor Module

Description

The Bently Nevada 136603-01 is a Process Variable Monitor Module designed for continuous monitoring of critical machine parameters such as pressure, flow, and temperature. It is part of the 3500/62 series, offering high accuracy and reliability for industrial applications.

Specifications

• Input Channels: 6
• Signal Types: 4-20 mA, -10 to +10 VDC
• Input Impedance: 250 ohms (current), 100k ohms (voltage)
• Buffered Outputs: 6, proportional to input
• Accuracy: ±0.25% of full-scale
• Power Supply: 18-36 VDC, 10.5 W max
• Measurement Range: Configurable (0-100% of input span)
• Resolution: 0.01% of full-scale
• Environmental Conditions:
  • Temperature: -30°C to +65°C
  • Humidity: 0-95% non-condensing
• Physical Dimensions: 241 mm x 24.4 mm x 163 mm
• Weight: 0.7 kg
• Performance:
  • Frequency Response: DC to 100 Hz
  • Update Rate: 100 ms per channel

Key Features

• Six-Channel Monitoring: Allows simultaneous tracking of multiple parameters.
• Configurable Alarms: User-defined thresholds for alerts and warnings.
• Supports Multiple Input Types: Compatible with both current and voltage signals.
• High Accuracy: Ensures precise measurement and monitoring.
• Industrial Durability: Designed for harsh environments with robust construction.
