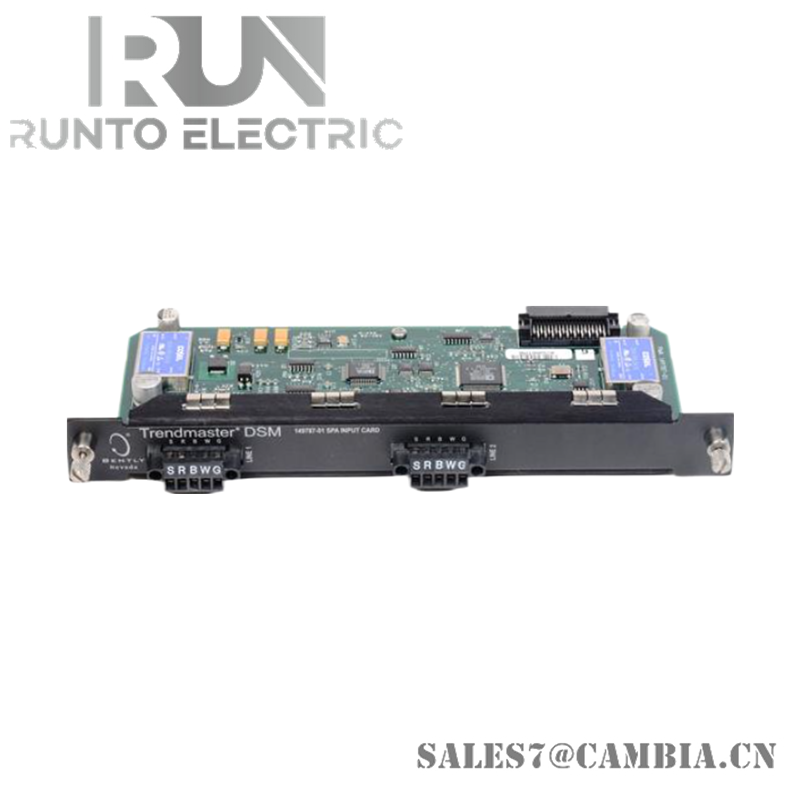

Bently Nevada 149787-01 TIM Input Card

Description

The Bently Nevada 149787-01 is a TIM Input Card designed for Trendmaster DSM racks. It enables high-resolution data acquisition from vibration, temperature, and process sensors, supporting centralized diagnostics and predictive maintenance.

Specifications

• Part Number: 149787-01
• System Compatibility: Trendmaster DSM
• Input Channels: 2 TIM lines per card, 254 channels per line (508 total)
• Sensor Support: Acceleration, velocity, 4–20 mA, thermocouples (J/K), RTDs
• Sampling Resolution: 14-bit A/D conversion, ±2 V input range
• Frequency Range: Up to 24 kHz bandwidth
• Processing Modes: Synchronous and asynchronous
• Waveform Capacity: Up to 3200 spectral lines
• Dimensions: 21 cm × 13 cm × 11 cm
• Weight: Approx. 0.3 kg to 2.0 kg
• Warranty: 12 months

Features

• High Channel Density: Supports up to 508 sensor inputs per card for large-scale monitoring
• Real-Time Processing: Onboard analytics reduce network load and improve response time
• Flexible Sensor Integration: Compatible with proTIM, 1900/15, 1900/25, and 1900/55 modules
• Advanced Diagnostics: Configurable filters, waveforms, and spectrums for detailed analysis
• Scalable Architecture: Supports up to 150 DSMs in distributed systems
• Robust Design: Conformal coating enhances durability in industrial environments
