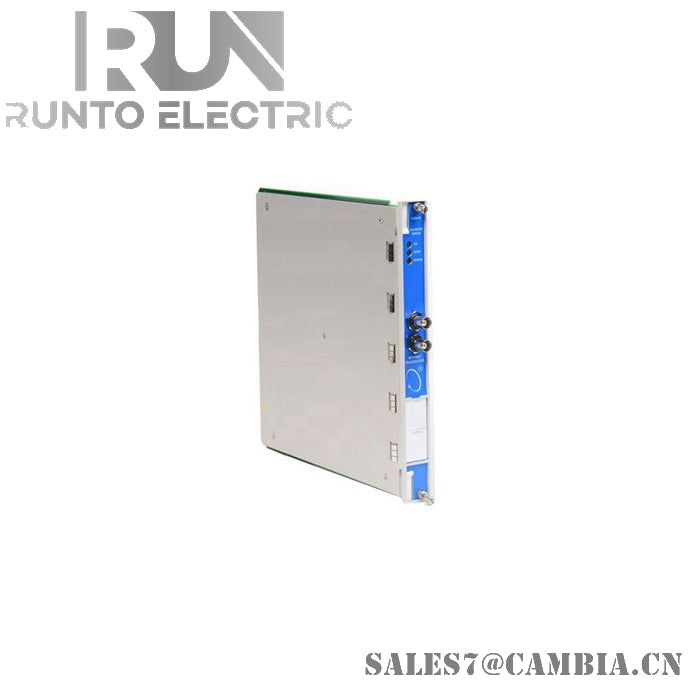

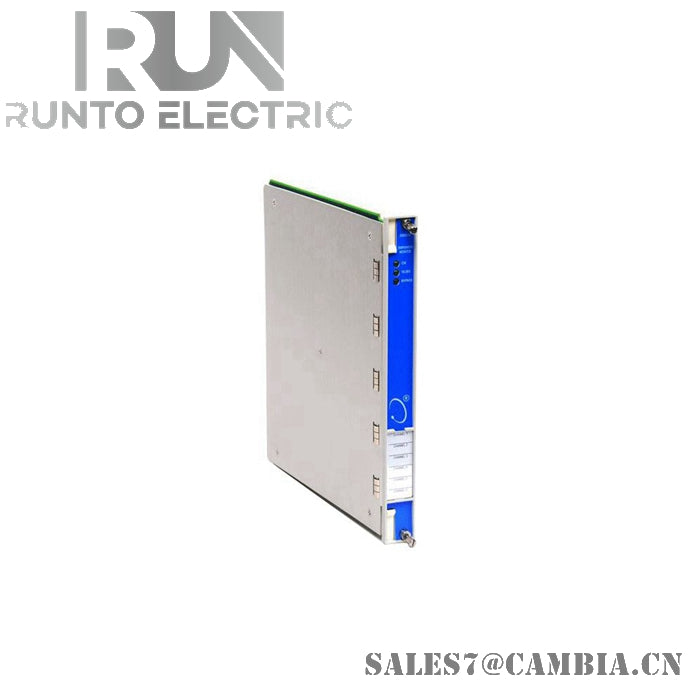

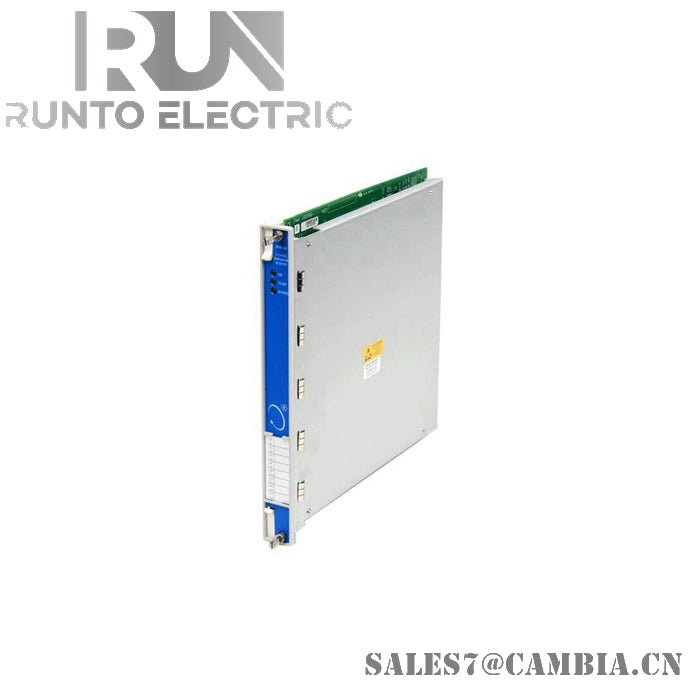

Bently Nevada 161216-01 Ethernet 10BASE-T/100BASE-TX I/O Module

Specifications

Data Types:

• Producer Exchange:
  • Rack, Module, Channel, and Data value Status
  • Data values (float)
  • Setpoints (float)
• Consumer Exchange:
  • Group Reset
  • Group Trip Multiply
  • Group Alarm Inhibit
  • Group Special Alarm Inhibit

Front Panel LEDs:

• OK LED: Indicates when the 3500/91 is operating properly.
• TX/RX LED: Indicates when the 3500/91 is communicating with other modules in the 3500 rack.

Environmental Limits:

• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 95%, non-condensing

Physical Dimensions:

• Height x Width x Depth: 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
• Weight: 0.39 kg (0.85 lbs.)
