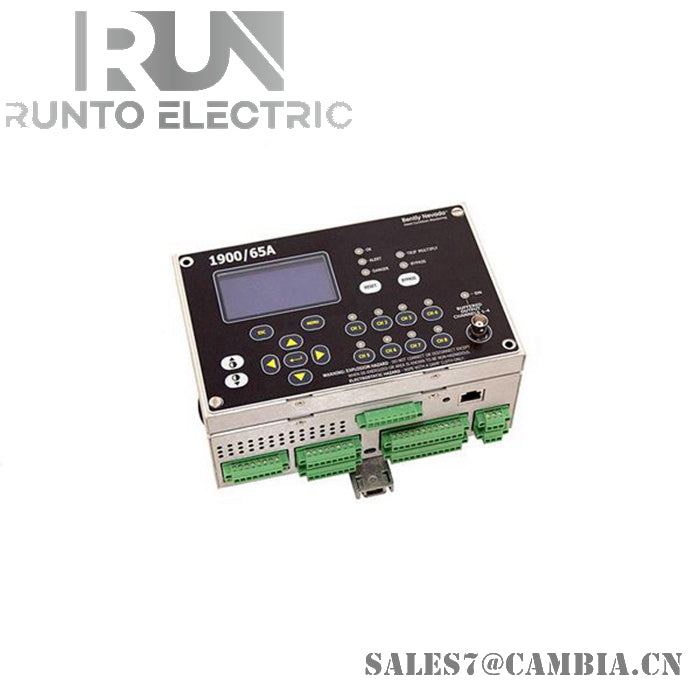

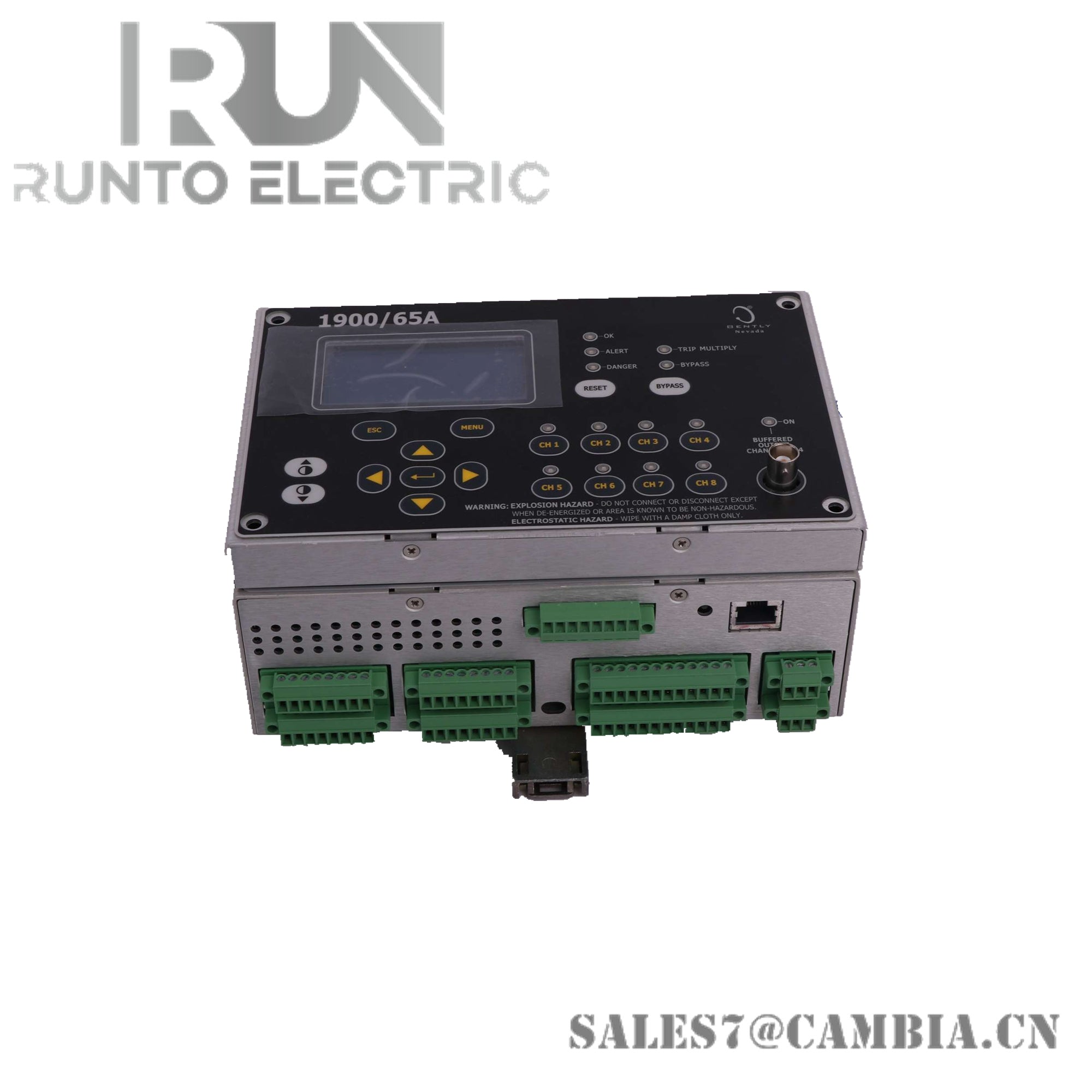

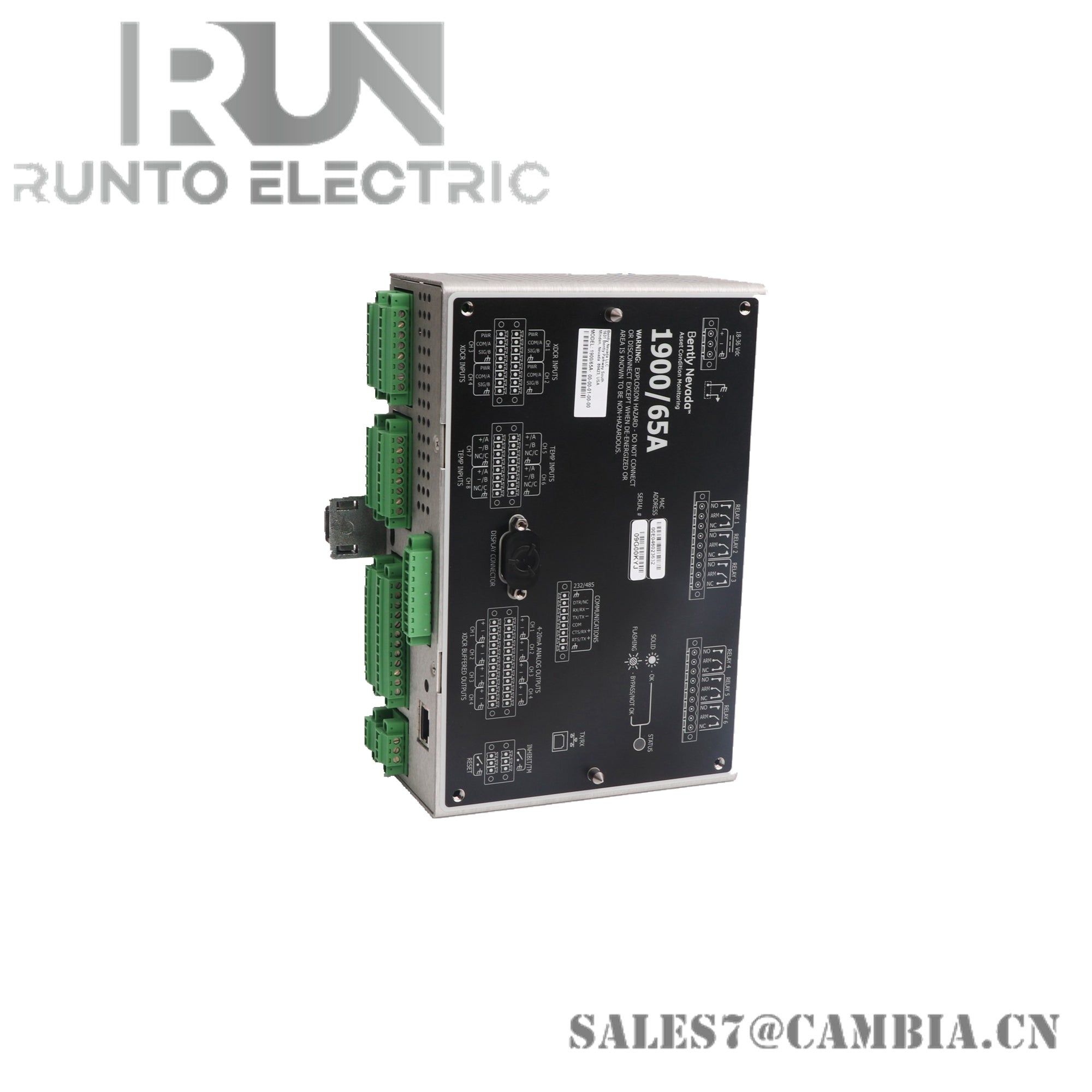

Bently Nevada 172323-01 General Purpose Equipment Monitor

Description

The 172323-01 module is part of the Bently Nevada 1900/65A series, engineered to provide reliable monitoring and diagnostics for general-purpose machines and processes. It is ideal for applications requiring vibration, velocity, proximity, and temperature measurements.

Specifications

• Inputs: Four transducer inputs (supporting accelerometers, velocity sensors, proximity sensors) and four temperature inputs (compatible with Type E, J, K, T thermocouples and RTDs).
• Outputs: Six relay outputs (configurable for OK, Alert, Danger statuses), four 4–20 mA recorder outputs, and a dedicated buffered output for each transducer input.
• Communication: Modbus Gateway for integration with DCS, SCADA, PLCs, or System 1 software.
• Operating Temperature: -20°C to +70°C (-4°F to +158°F).
• Dimensions: 196.9 mm x 149.4 mm x 97.8 mm (7.75” x 5.88” x 3.85”).
• Weight: 1.4 kg (3.09 lbs).

Features

• Versatile Monitoring: Accepts multiple input types for comprehensive machine health diagnostics.
• Configurable Outputs: Provides flexibility for various protection schemes.
• Modbus Communication: Enables seamless integration with centralized monitoring systems.
• User-Friendly Configuration: Software tools allow easy setup and operation.
• Compact Design: Space-efficient for easy installation.
