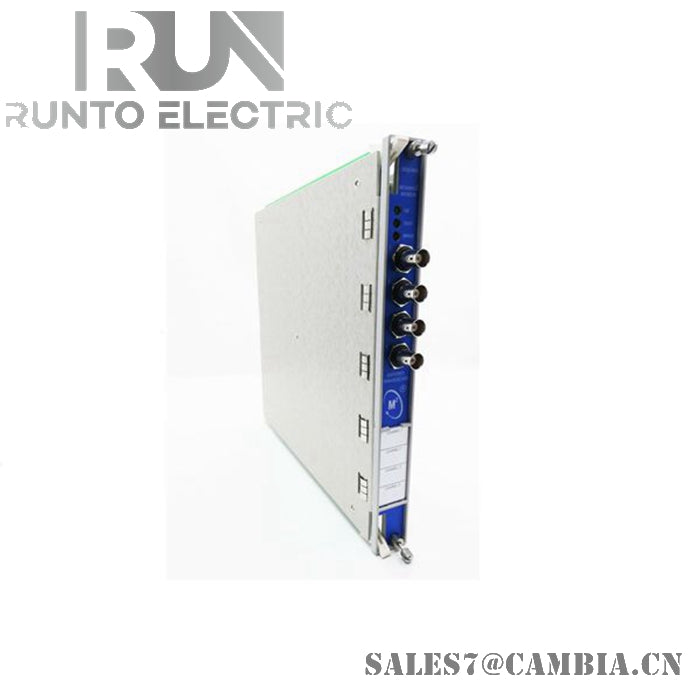

Bently Nevada 176449-07 Cylinder Pressure Monitor

Description

The Bently Nevada 176449-07 is a 4-channel Reciprocating Cylinder Pressure Monitor from the 3500/77M series. It’s engineered to measure and analyze pressure signals from approved transducers in reciprocating compressors, offering real-time diagnostics and protection through programmable alarms.

Specifications

• Input Signal Type: Piezoelectric pressure transducer
• Input Signal Range: 0 to 10,000 psi (0 to 68.9 MPa)
• Accuracy: ±0.25% of full scale
• Resolution: 0.01% of full scale
• Output Signal Type: 4–20 mA (user-programmable range)
• Number of Channels: 4
• Power Supply: 24 VDC ±10%
• Power Consumption: 25 W
• Dimensions: 241.3 mm × 24.4 mm × 99.1 mm
• Weight: 0.2 kg
• Certifications: CE, RoHS
• Operating Temperature: -40°C to +85°C

Features

• Multi-Channel Input: Supports up to four pressure transducers for comprehensive monitoring
• Signal Conditioning: Converts raw pressure signals into actionable measurements
• User-Programmable Alarms: Customizable Alert and Danger thresholds for each channel
• Peak & Minimum Pressure Capture: Records extreme values for diagnostics
• Data Logging: Enables historical trend analysis and troubleshooting
• Automatic Zero Calibration: Simplifies setup and ensures accuracy
• Industrial Compatibility: Designed for harsh environments and integrates with Modbus, Profibus, and Ethernet/IP protocols
• Modular Design: Easily expandable within the 3500 Series framework
