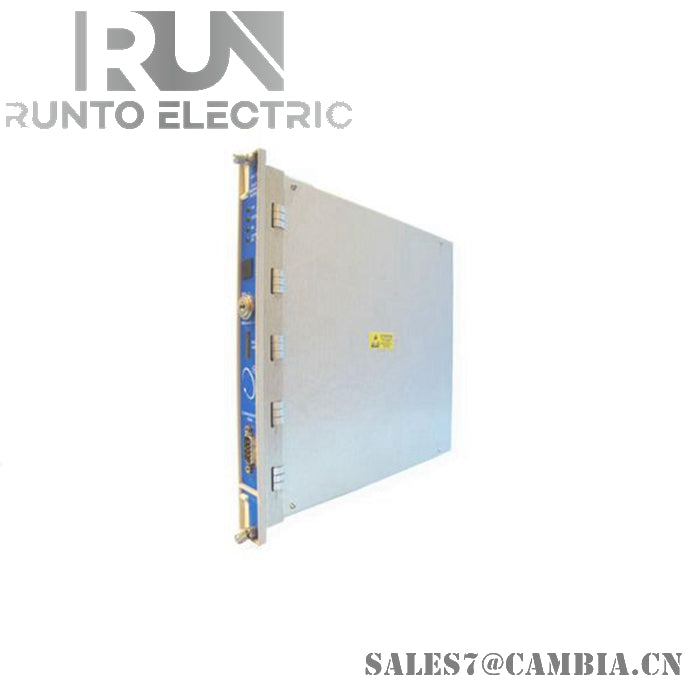

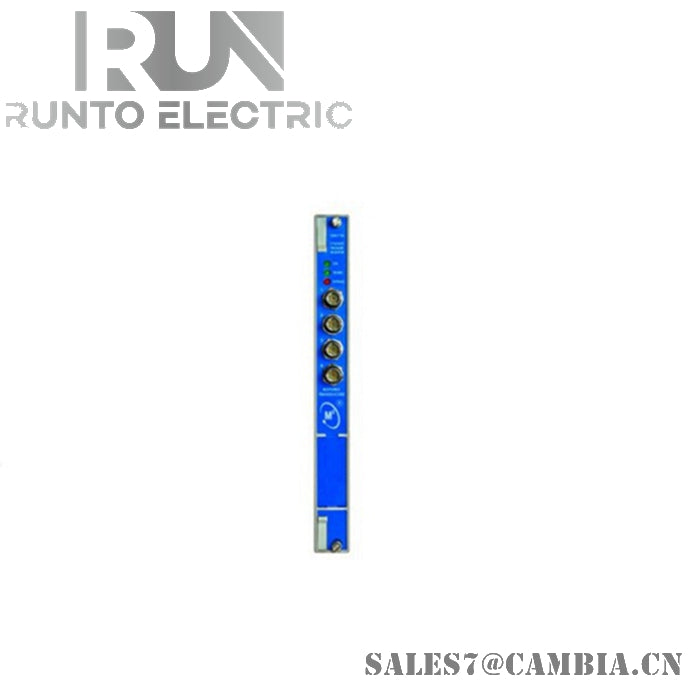

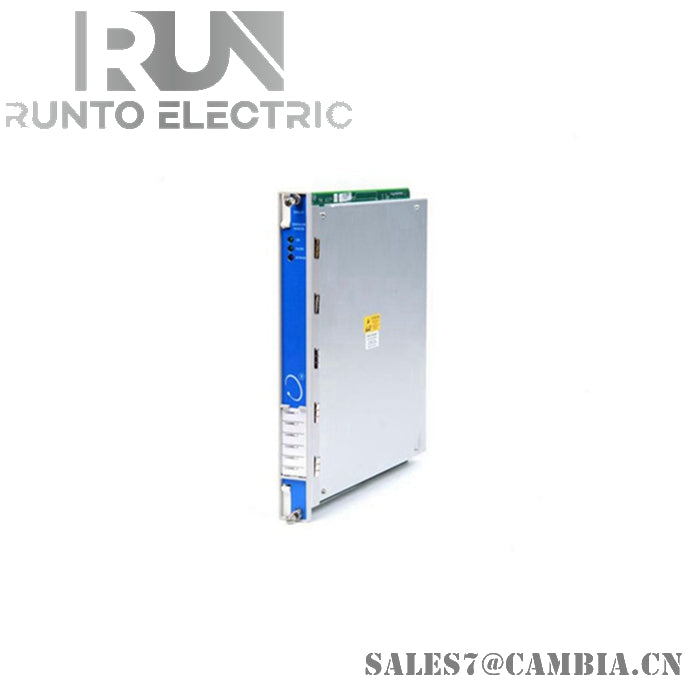

Bently Nevada 286566-01 Overspeed Detection Module

Description

The Bently Nevada 286566-01 is an Overspeed Detection Module used in the 3500/53M machinery protection system. It provides high-speed, redundant tachometer-based overspeed protection for turbines, compressors, and other rotating equipment. Designed to meet API 670 and API 612 standards, it ensures rapid fault detection and safe shutdown in overspeed conditions.

Specifications

• Model: 286566-01
• System: Bently Nevada 3500/53M
• Function: Electronic Overspeed Detection
• Voting Logic: Supports 2-out-of-2 or 2-out-of-3 configurations
• Input Type: Redundant tachometer signals
• Operating Temperature: –30°C to +65°C
• Storage Temperature: –40°C to +85°C
• Humidity: Up to 95%, non-condensing
• Dimensions: 2.5 cm × 25.7 cm × 24 cm
• Weight: 0.92 kg
• Compliance: API 670 / API 612
• Mounting: 3500 rack with redundant power supplies

Features

• Fast Response Time: Immediate detection and shutdown during overspeed events
• Redundant Design: Supports multiple modules for fault-tolerant protection
• High Reliability: Engineered for critical applications in rotating machinery
• API Compliance: Meets industry standards for overspeed protection
• Modular Integration: Fits into Bently Nevada 3500 racks with ease
• Global Deployment: Used in oil & gas, power generation, and heavy industrial sectors
