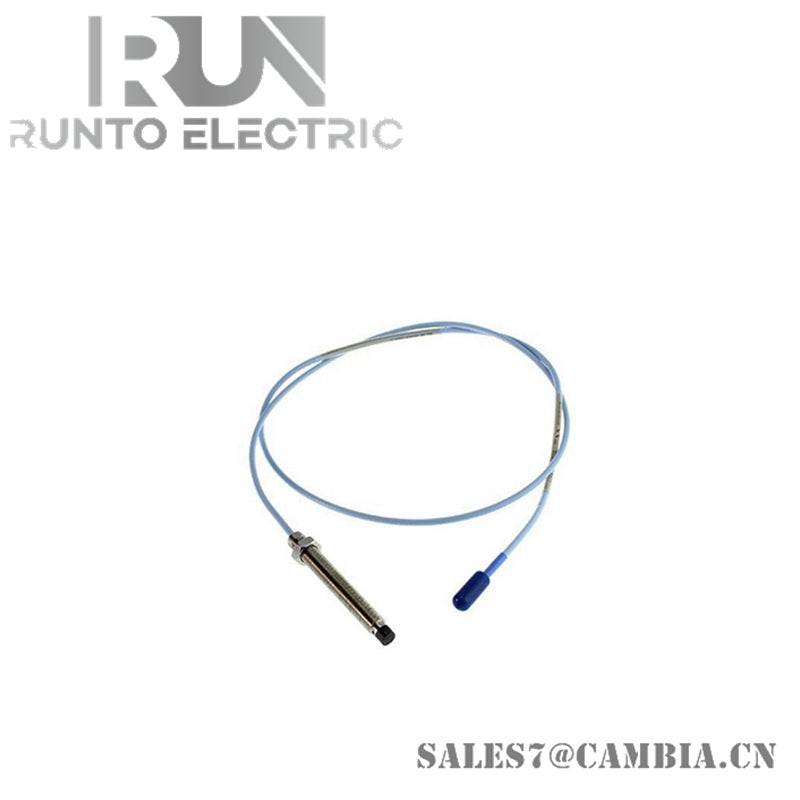

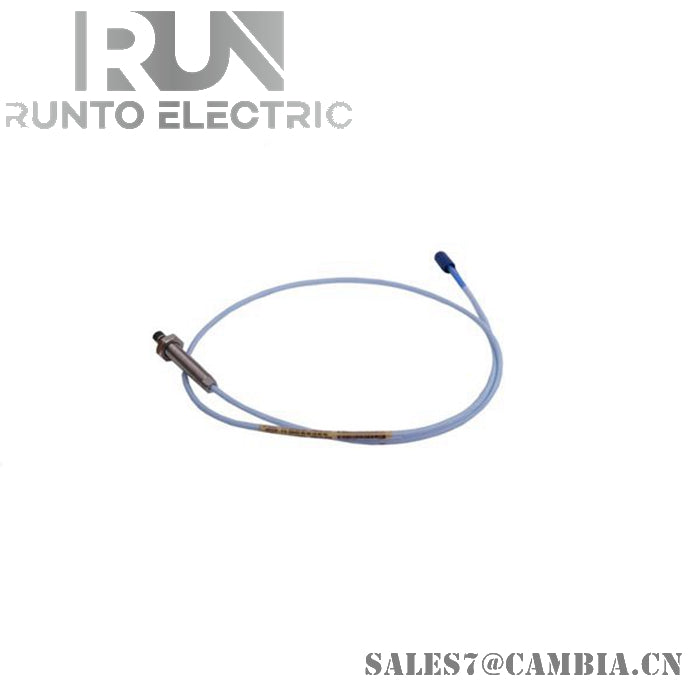

Bently Nevada 330101-00-28-20-02-05 3300 XL 8 mm Proximity Probe

Specifications

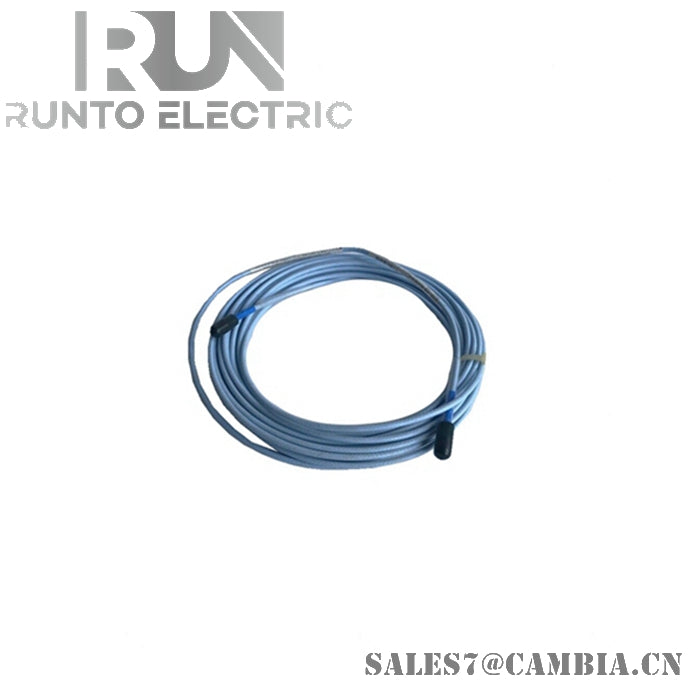

• Standard cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable available in lengths of 0.5, 1, 1.5, 2, 3, 5, or 9 metres.
• Extended Temperature Range cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated probe cable available in lengths of 0.5, 1, 1.5, 2, 5, or 9 metres.
• Armor (optional on both): Flexible AISI 302 or 304 SST with FEP outer jacket.
• Tensile Strength (Maximum Rated): 330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at probe lead to extension cable connectors.
• Connector Material: Gold-plated brass or gold-plated beryllium copper.

Environmental Limits

• Probe: -51 °C to +177 °C (-60 °F to +350 °F).
• Extended Temperature Range Probe: -51 °C to +218 °C (-60 °F to +425 °F) for the probe tip; -51 °C to +260 °C (-60 °F to +500 °F) for the probe cable and connector.

Ordering Information Probes

330101-AXX-BXX-CXX-DXX-EXX

• A: Unthreaded Length Option: Note: Unthreaded length must be at least 0.8 inches less than the case length. Order in increments of 0.1 in. Length configurations: Maximum unthreaded length: 8.8 in. Minimum unthreaded length: 0.0 in. Example: 0 4 = 0.4 in.
• B: Overall Case Length Option: Order in increments of 0.1 in. Threaded length configurations: Maximum case length: 9.6 in. Minimum case length: 0.8 in. Example: 2 4 = 2.4 in.
• C: Total Length Option: 2.0 metres (6.6 feet).
• D: Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, standard cable.
• E: Agency Approval Option: 0 5 CSA, ATEX, IECEx Approvals.
