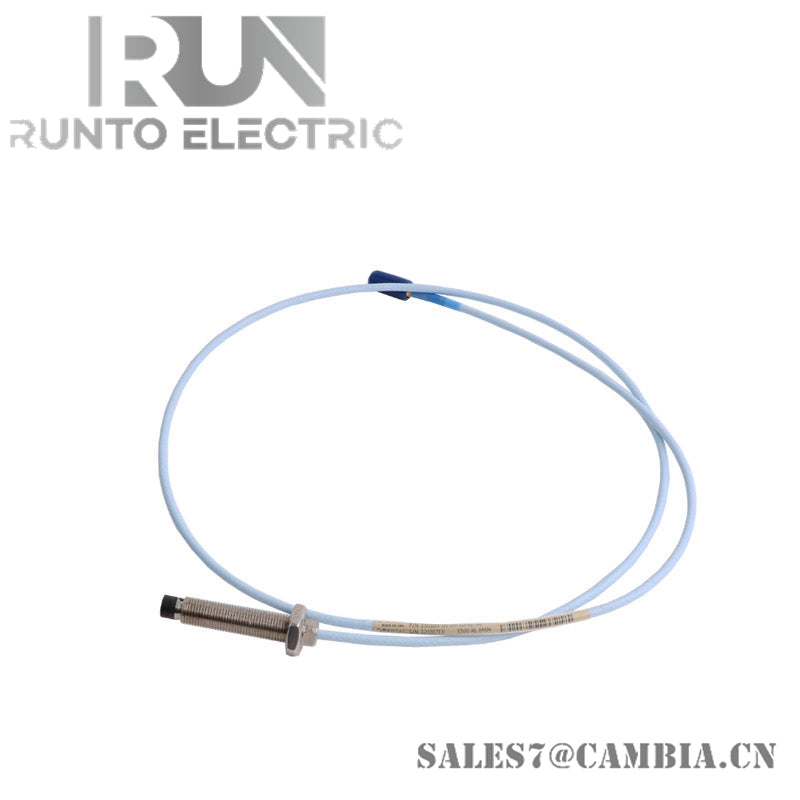

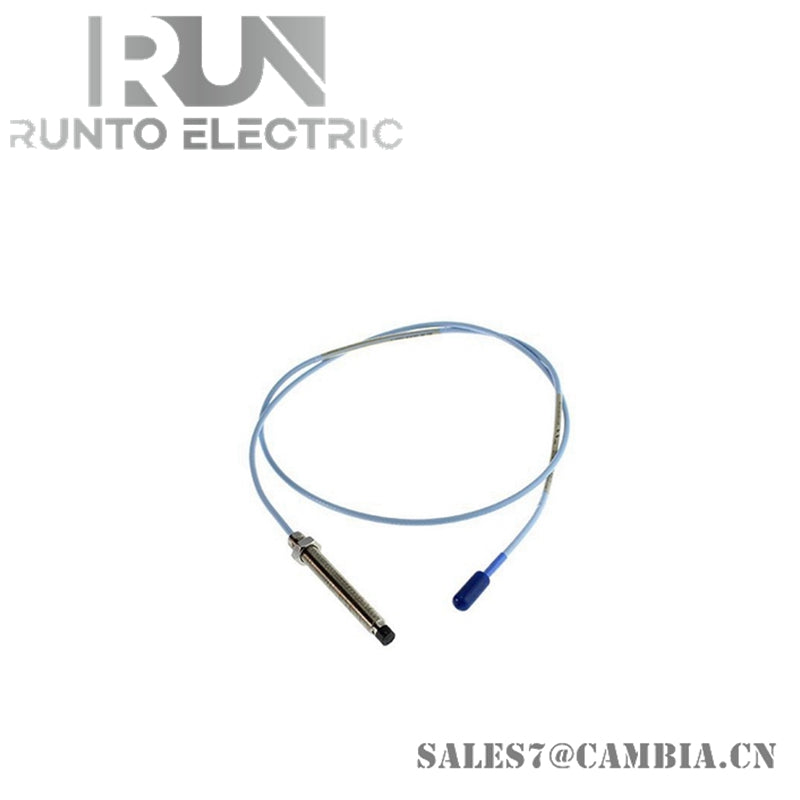

Bently Nevada 330103-00-08-10-02-00 3300 XL 8 mm Proximity Probes

Specifications

• Standard cable:75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 metres.
• Extended Temperature Range cable:75Ω triaxial, perfluoroalkoxy (PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 metres.
• Armor (optional on both):Flexible AISI 302 or 304 SST with FEP outer jacket.
• Tensile Strength (Maximum Rated):
  • 330 N (75 lbf) probe case to probe lead.
  • 270 N (60 lbf) at probe lead to extension cable connectors.
• Connector Material:Gold-plated brass or gold-plated beryllium copper.

Ordering Information

330103AXX-BXX-CXX-DXX-EXX

A: Unthreaded Length Option

• Note: Unthreaded length must be at least 20 mm less than the case length.
• Order in increments of 10 mm.
• Length configuration:
  • Maximum unthreaded length: 230 mm
  • Minimum unthreaded length: 0 mm
• Example: 06 = 60 mm

B: Overall Case Length Option

• Order in increments of 10 mm.
• Metric thread configurations:
  • Maximum length: 250 mm
  • Minimum length: 20 mm
• Example: 06 = 60 mm

C: Total Length Option

• 1.0 metre (3.3 feet)

D: Connector and Cable-Type Option

• Miniature coaxial ClickLoc connector, standard cable

E: Agency Approval Option

• Not required
