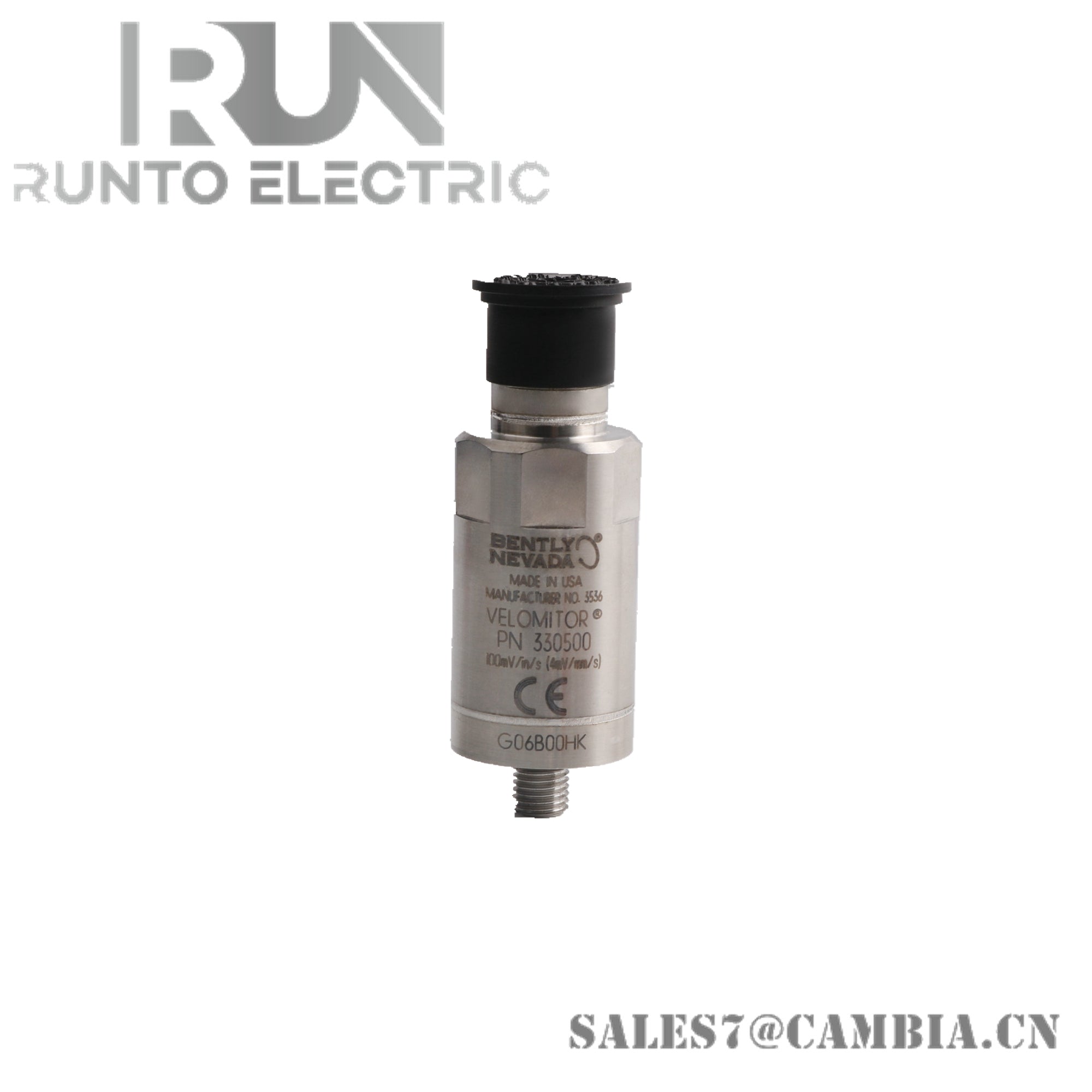

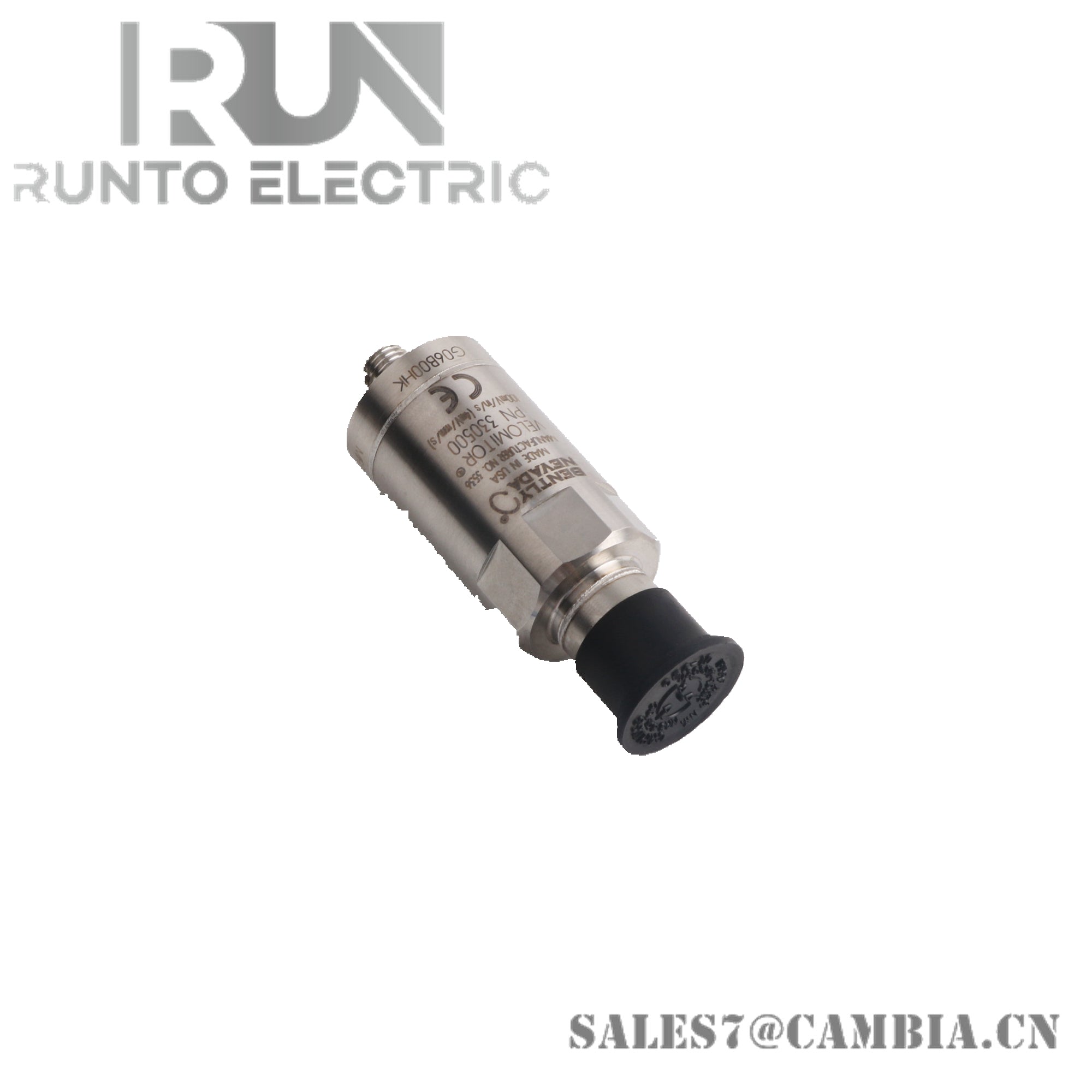

Bently Nevada 330500-04-00 Velomitor Piezo-velocity Sensor

Description:

The Bently Nevada 330500-04-00 is a 330500 Velomitor Piezo-Velocity Sensor designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. It is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.

Features:

• Rugged, 2-pin, integrating piezo-accelerometer
• Especially suited for condition monitoring of machines with rolling-element bearings
• Vibration measurements in units of velocity
• Can be mounted vertically, horizontally, or at any other angle of orientation
• Does not suffer from mechanical degradation and wear

Specifications:

• Sensitivity: 3.94mV/mm/s (100 mV/in/s) ±5%
• Frequency Response:
  • 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) –3.0 dB
  • 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) –0.9 dB
• Velocity Range: 1270 mm/s (50 in/s) peak
• Operating Temperature Range: -55°C to 121°C (-67°F to 250°F)
• Shock Survivability: 5,000 g peak, maximum
• Maximum Cable Length: 305 meters (1,000 feet) of cable, part number 02173006, with no degradation of signal
• Mounting Thread Option: -04 - 1/4 - 20 UNC
• Agency Approval Option: -00 - Not required
• Shipping Weight: 3 Kg
• Country of Origin: United States

Additional Information:

• New and original item in stock
• With one year warranty
• Quantity available: 10
• Warranty: 12 months
• Technical specifications, manuals, and data sheets available upon request
