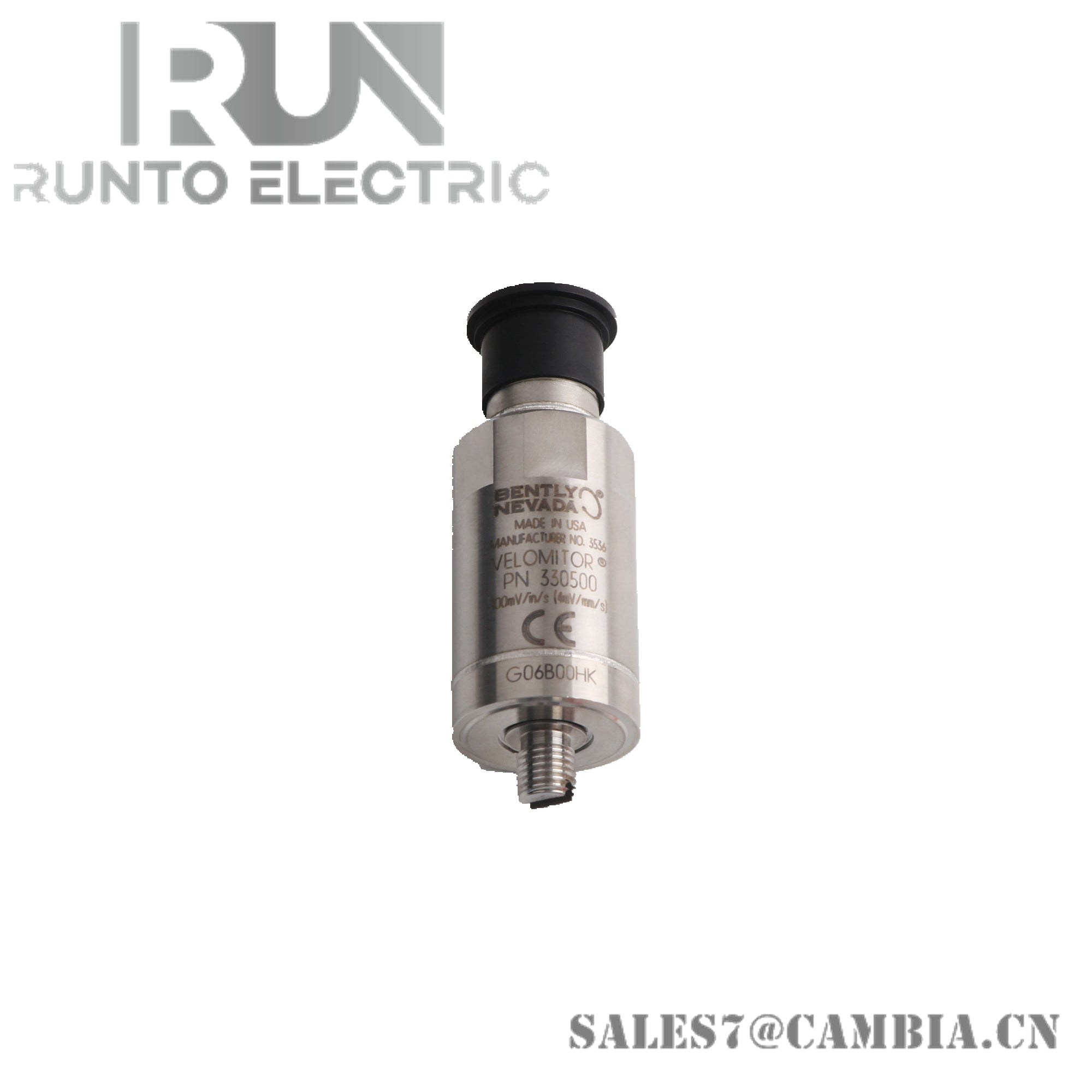

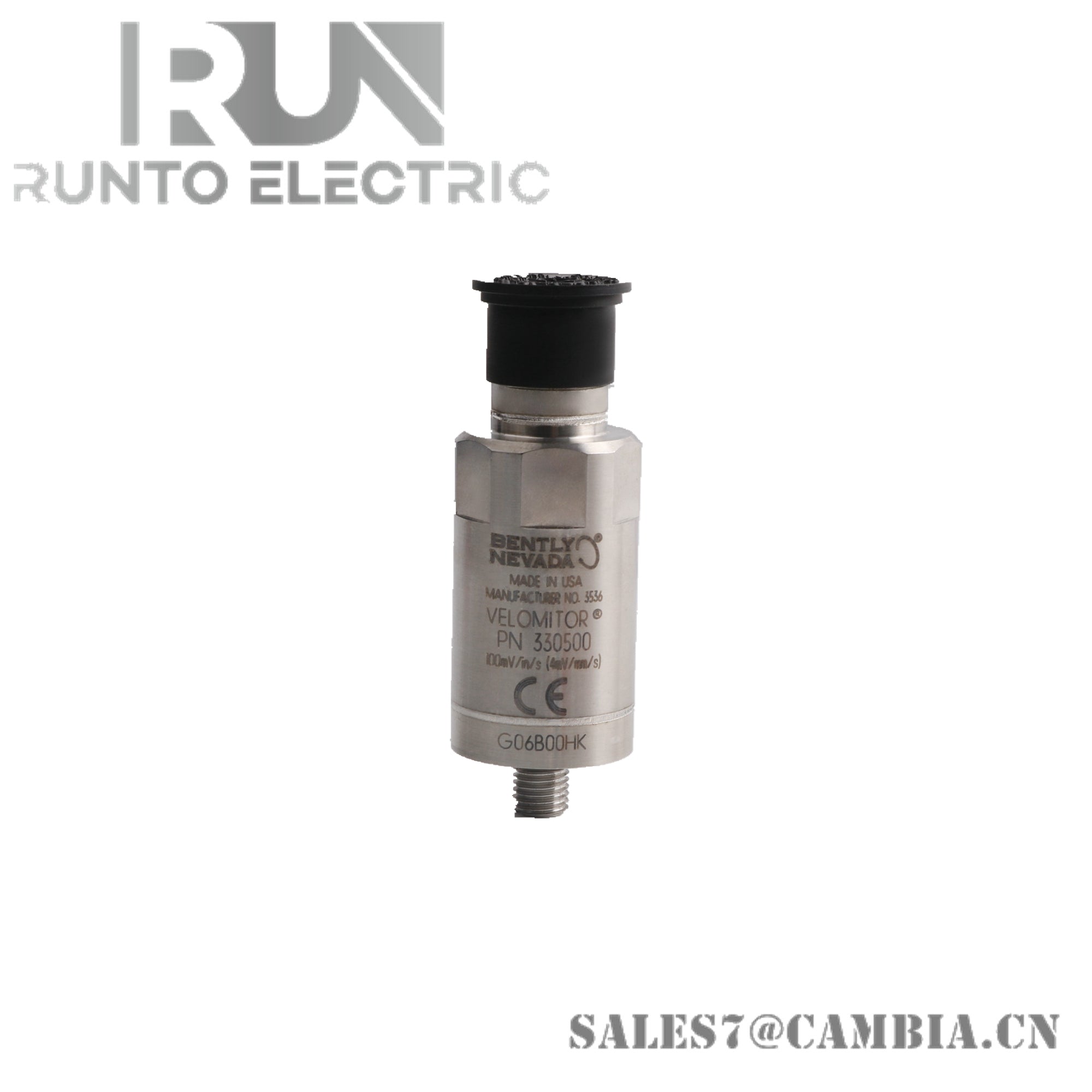

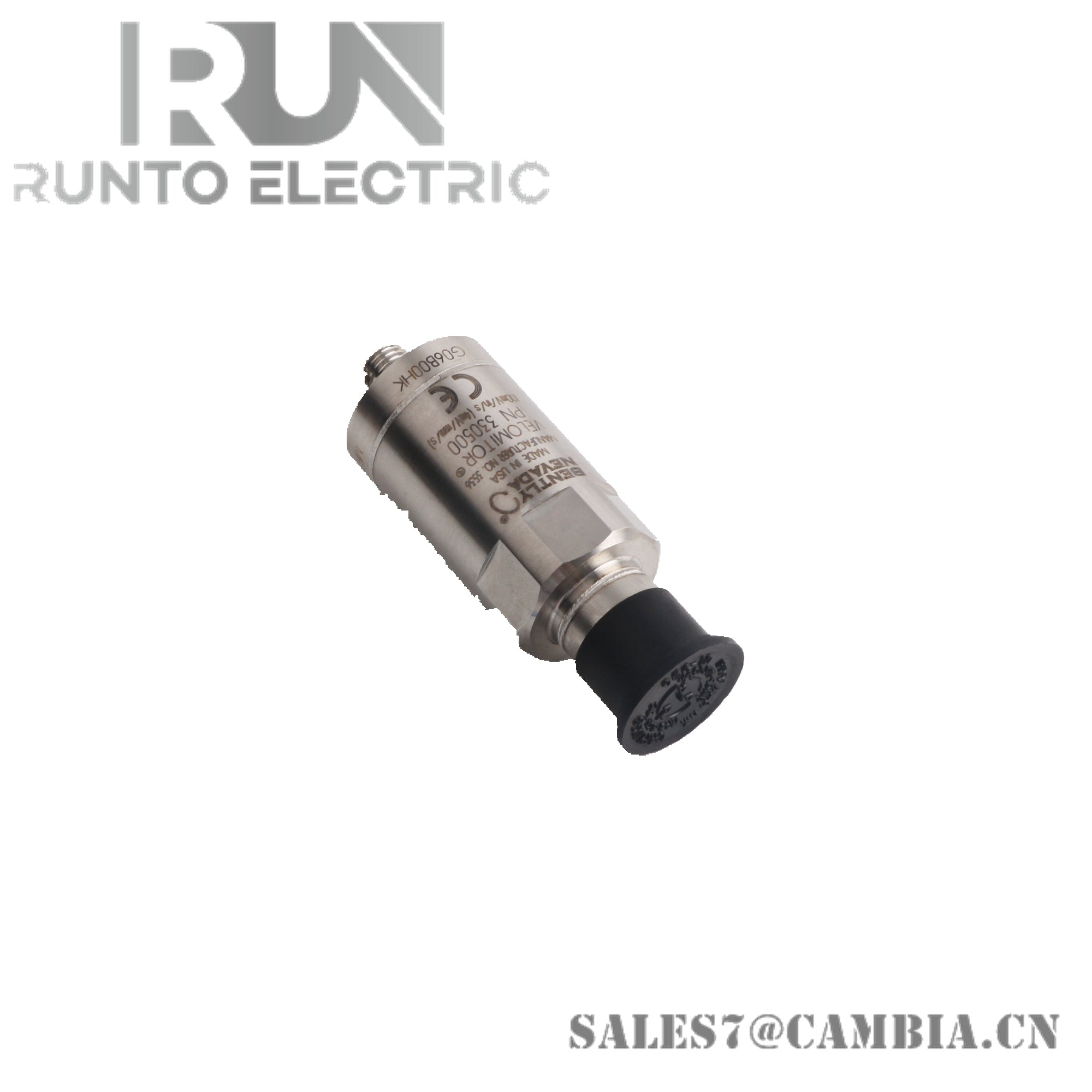

Bently Nevada 330500-07-04 Velomitor Piezo-velocity Sensor
Description:
The 330500 Velomitor is a specialized piezoelectric accelerometer incorporating embedded integrated electronics in a solid-state design. It's intended for measuring absolute (relative to free space) bearing housing, casing, or structural vibration.
- Sensitivity: 3.94mV/mm/s (100 mV/in/s) ±5%
- Frequency Response: 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB and 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB
- Temperature Sensitivity: -14% to +7.5% typical over the operating temperature range
- Velocity Range: 1270 mm/s (50 in/s) peak
- Transverse Sensitivity: <5% of sensitivity
- Amplitude Linearity: ±2% to 152 mm/s (6 in/s) peak
- Mounted Resonant Frequency: >12 kHz
- Output Bias Voltage: -12 ±3.0 VDC, over temperature referenced to Pin A
- Dynamic Output Impedance: <2400 Ω
- Broadband Noise Floor (4.5 Hz to 5 kHz): 0.004 mm/s (160 μin/s) rms, nominal
- Grounding: Case isolated
- Cable Length: Supports up to 305 meters (1,000 feet) of Maximum cable (part number 02173006) with no signal degradation
- Environmental Limits: Operates in a temperature range of -55°C to 121°C (-67°F to 250°F), survives a shock of up to 5,000 g peak, maximum, and can handle up to 100% non-submerged relative humidity as the case is hermetically sealed.
NEW AND ORIGINAL ITEM IN STOCK
WITH ONE YEAR WARRANTY
For inquiries, please contact sales7@cambia.cn
Additional Information:
- Lower your support costs.
- Provide ongoing availability of automation replacement parts.
Quantity Available: 10
Warranty: 12 months
Technical Specifications, Manuals, and Data Sheets Available.
Inquiry Details:
- All quotes based on EXW only.
- Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/FedEx.
- Payment terms: 100% T/T PAYMENTS before shipping.
