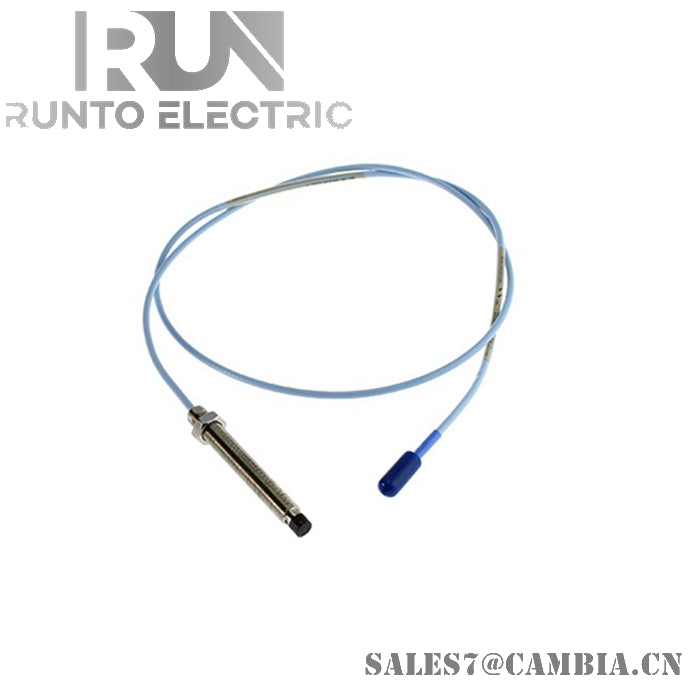

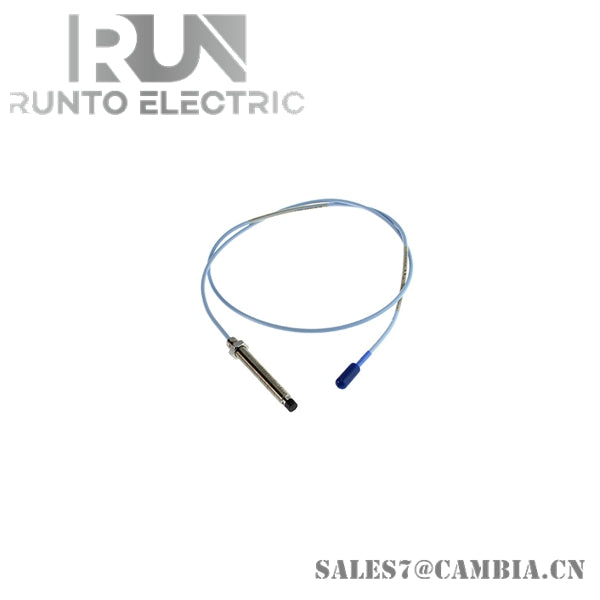

Bently Nevada 330703-000-080-10-02-00 3300 XL 11 Mm Proximity Probes
Bently Nevada 330703-000-080-10-02-00 3300 XL 11 Mm Proximity Probes
Bently Nevada 330703-000-080-10-02-00 3300 XL 11 Mm Proximity Probes

    Bently Nevada 330703-000-080-10-02-00 3300 XL 11 Mm Proximity Probes

      Description

      Description: The system comprises one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. It offers an output voltage proportional to the distance between the probe tip and the observed conductive surface, capable of measuring both static (position) and dynamic (vibration) values. The system finds primary applications in vibration and position measurements on fluid-film bearing machines, Keyphasor reference, and speed measurements.

      Features:

      • The 3300 XL 8 mm system offers advanced performance in eddy current proximity transducer systems.
      • The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
      • All 3300 XL 8 mm proximity transducer systems provide consistent performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for matching or bench calibration of individual components.
      • Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components.

      Specifications:

      • Part Number: 330703-000-080-10-02-002
      • Model: 330703 = 3300 XL 11 mm Probe, M14 x 1.5 thread, without armor
      • Made in: U.S.A
      • Unthreaded Length Option: 000 = 0 mm
      • Overall Case Length Option: 050 = 50 mm
      • Total Length Option: 10 = 1.0 meters (3.3 feet)
      • Product Name: 330703-00-80-10-02-00 BENTLY NEVADA Power module
      • Sensitivity: 7.87 V/mm (200 mV/mil) ± 5% including interchangeability error when measured in increments of 0.25 mm (10 mils) over the 80 mil linear range from 0 °C to +45 °C (+32 °F to +113 °F)

      Additional Information:

      • New and original item in stock.
      • Warranty: 12 months.
      • Quantity available: 10
      • For inquiries, please contact sales7@cambia.cn
      • Support provided to lower support costs and ensure ongoing availability of automation replacement parts.
      • Technical specification, manuals, and data sheets available.
      • Terms:
        1. All quotes based on EXW only.
        2. Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/FedEx.
        3. Payment terms: 100% T/T payments before shipping.
