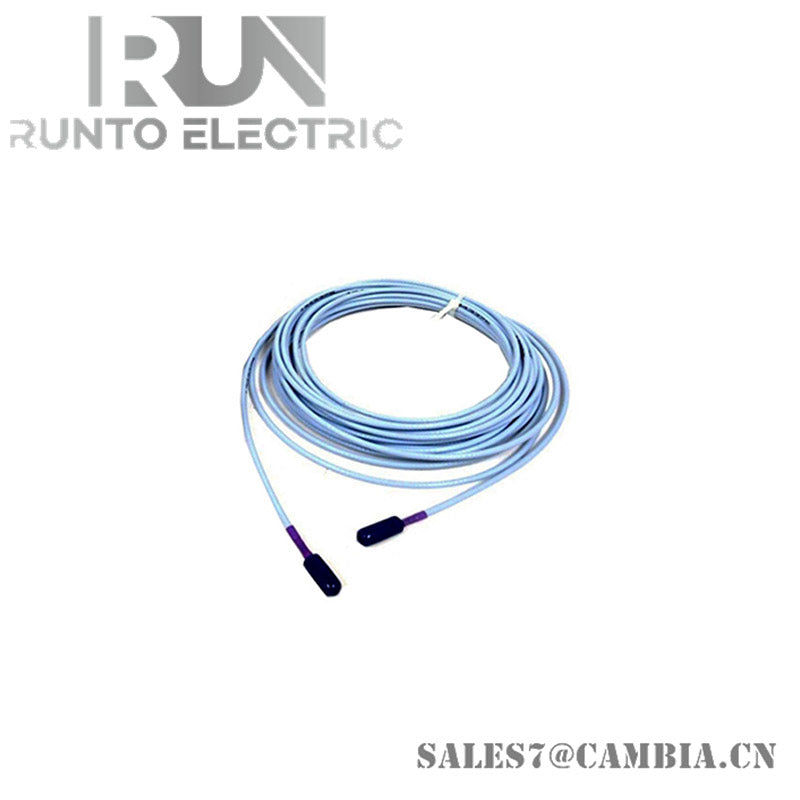

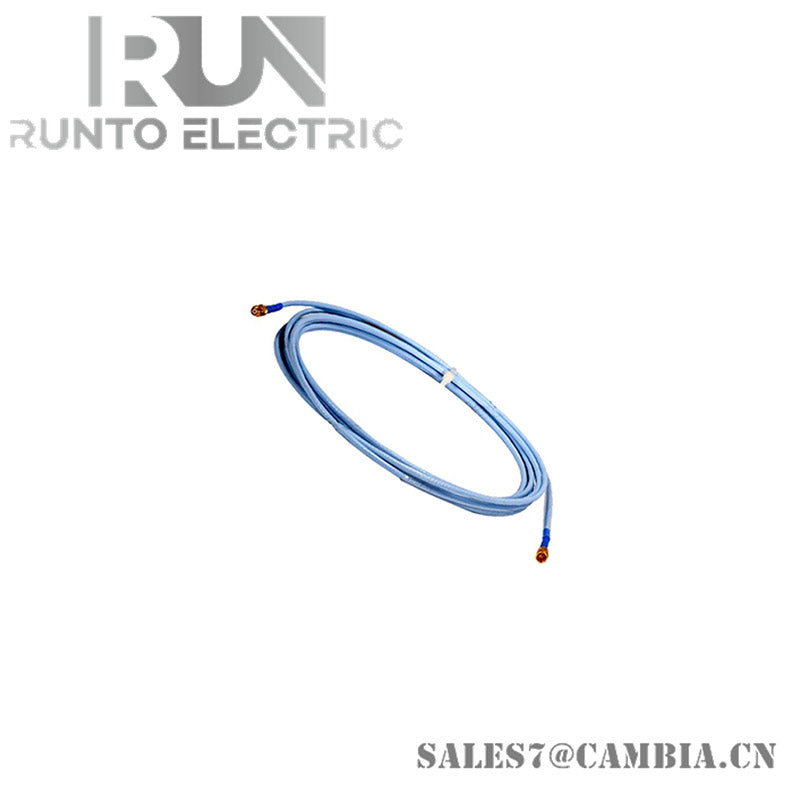

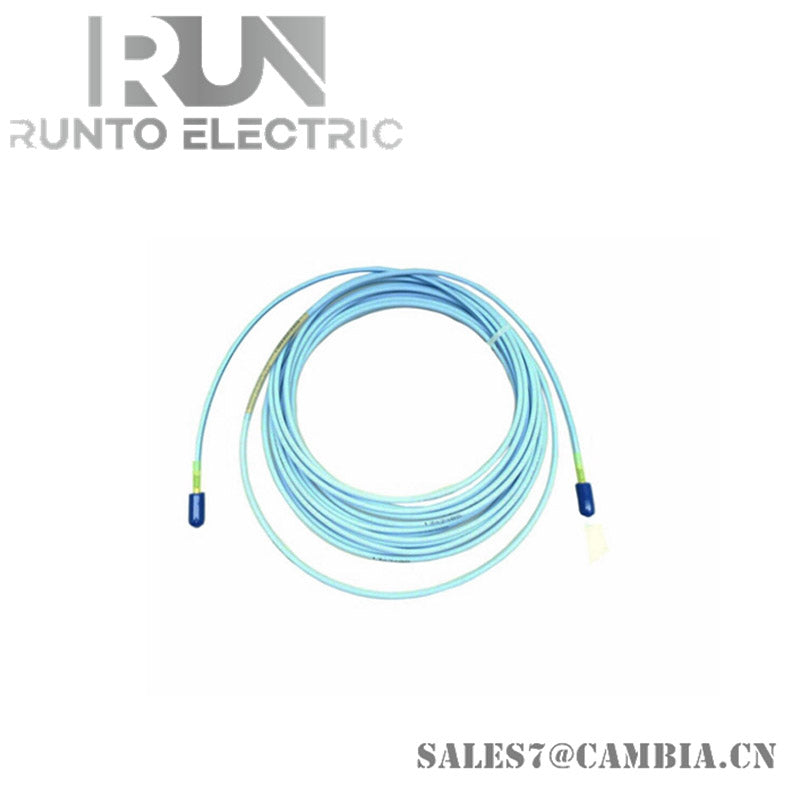

Bently Nevada 330877-080-36-00 3300 XL 50 mm Extension Cable
Bently Nevada 330877-080-36-00 3300 XL 50 mm Extension Cable
The Bently Nevada 330877-080-36-00, also cataloged as the 330877 Extension Cable, operates as a dedicated hardware component for signal transmission between 3300 XL 50 mm proximity probes and associated signal conditioning equipment within 3300 XL transducer systems. The cable assembly provides a calibrated electrical path through an 8.0 m FluidLoc cable configuration designed for eddy-current measurement applications.
Suffix Breakdown & Model Matrix
- 330877 - 3300 XL 50 mm Extension Cable base model
- 080 - Cable length option: 8.0 m
- 36 - FluidLoc extension cable configuration
- 00 - No agency approvals required
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330877-080-36-00 |
| Brand | Bently Nevada |
| Origin | United States |
| Product Type | 3300 XL 50 mm Extension Cable |
| Series | 3300 XL |
| Cable Length | 8.0 m |
| Armor and Cable Option | FluidLoc extension cable |
| Cable Construction | 75 Ohm triaxial cable |
| Insulation Material | Perfluoroalkoxyethylene (PFA) |
| Extension Cable Capacitance | 69.9 pF/m typical |
| Application | Probe-to-driver signal transmission |
| Compatibility | 3300 XL 50 mm Proximity Transducer Systems |
| Agency Approval | No approvals |
| Operating Temp | -51 deg C to +200 deg C |
| Storage Temp | -51 deg C to +200 deg C |
| Power Consumption | Passive cable assembly |
| Shipping Weight | 2 kg |
| Weight | Not specified |
| Dimensions | 8.0 m cable length |
Eddy-Current Signal Transmission Performance
The 330877 extension cable is engineered as a matched component within the 3300 XL 50 mm transducer system. Electrical properties of the extension cable directly influence overall probe system calibration, signal linearity, and measurement stability.
The specified cable capacitance supports consistent signal transfer between the proximity probe and associated signal conditioning electronics. The FluidLoc cable construction combines a triaxial conductor arrangement with PFA insulation to support operation in elevated-temperature environments while maintaining transducer system electrical characteristics.
Frequently Asked Questions
Q: Can the extension cable length be modified in the field?
A: No. The cable length is part of the calibrated transducer system configuration and should not be shortened or extended.
Q: Is this cable an active electronic device?
A: No. The extension cable is a passive assembly used to transfer probe signals to compatible monitoring electronics.
Q: Does the cable affect proximity probe calibration?
A: Yes. The extension cable is a matched system component and contributes to the overall electrical characteristics of the transducer system.
Field Installation Guidelines
- Verify compatibility with the connected 3300 XL 50 mm probe system.
- Route cable separately from power and motor conductors.
- Avoid sharp bends and excessive mechanical stress.
- Protect connectors from contamination during installation.
- Inspect cable jacket integrity before commissioning.
- Confirm signal continuity after installation.
