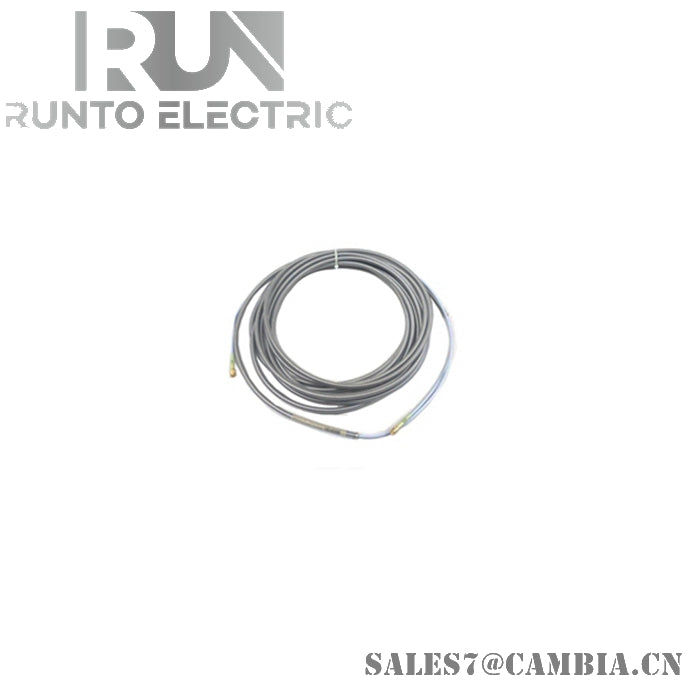

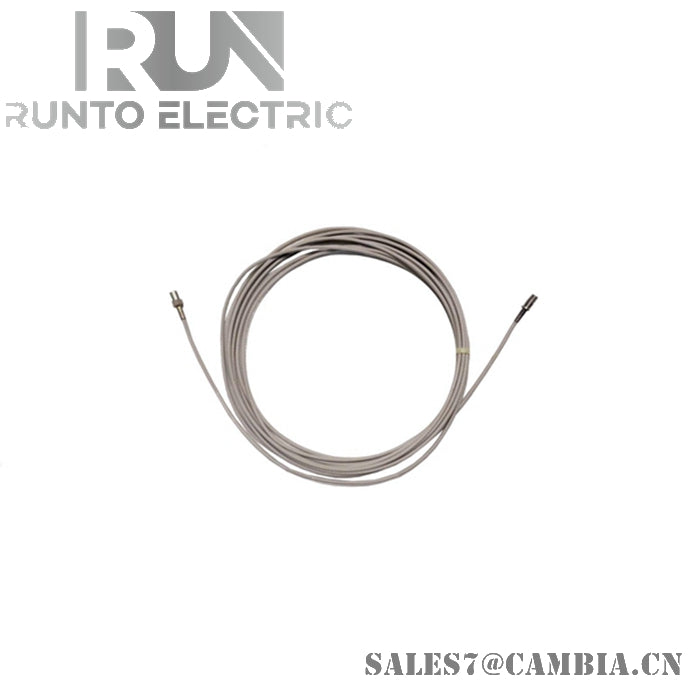

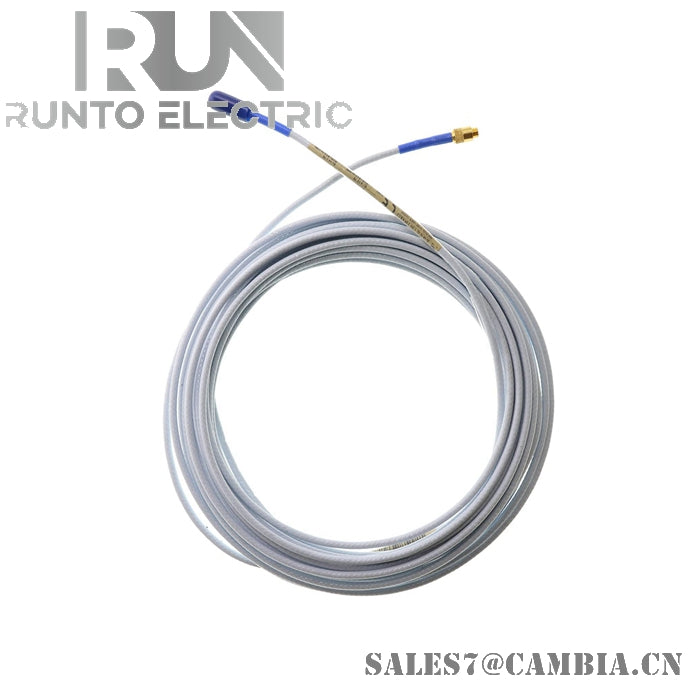

Bently Nevada 330930-060-01-CN Extension Cable
Bently Nevada 330930-060-01-CN Extension Cable
Configured for proximity probe signal transmission in the 3300 NSv Proximity Transducer System, the Bently Nevada 330930-060-01-CN (330930 Extension Cable) provides direct coaxial continuity with defined impedance and protective armor.
Suffix Breakdown & Model Matrix
- 330930: 3300 NSv Extension Cable
- 060: Cable length of 6.0 meters (19.7 feet)
- 01: Standard cable material with fluid-resistant protective armor
- CN: China RoHS compliant (approved for use/sale in China)
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330930-060-01-CN |
| Brand | Bently Nevada |
| Origin | Made in U.S.A |
| Weight | Not specified |
| Dimensions | Not specified |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Passive coaxial cable, no active power |
| System Compatibility | 3300 NSv Proximity Transducer System |
| Cable Length | 6.0 m ± 0.51 m (19.7 ft ± 1.67 ft) |
| Material | 75 Ω coaxial, FEP insulated jacket |
| Armor Option | Flexible stainless steel, fluid-resistant |
| Connector Type | Miniature coaxial, gold-plated brass |
| Max Connector Torque | 0.56 N·m (5 in·lb) recommended |
| Total System Length | Designed for 7 m (1 m probe + 6 m cable) |
| Environmental Tolerance | Resistant to moisture, oils, solvents |
| Minimum Bend Radius | 25.4 mm unarmored, 30.5 mm armored |
Eddy-Current Probe Scaling and Gap-Voltage Validation
Within NSv rotor-dynamic monitoring systems, the extension cable preserves calibrated eddy-current probe scaling. Controlled coaxial impedance ensures gap voltage validation at nominal -10 VDC targets. Stainless steel armor and FEP insulation suppress cross-talk by stabilizing shield continuity and reducing electromagnetic coupling.
Frequently Asked Questions
Q: Can the cable be field-cut or re-terminated? A: No. Factory termination preserves impedance, capacitance, and probe calibration.
Q: Does the stainless steel armor affect electrical performance? A: The armor provides mechanical protection only; coaxial impedance and capacitance remain stable.
Q: What is the impact of cable length on probe linearity? A: NSv systems are calibrated for defined lengths. The 060 option maintains the intended transfer function and gap-voltage scaling.
Field Installation Guidelines
- Route away from high-frequency drives or switching conductors to minimize induced noise.
- Maintain shield bonding at designated termination points; avoid multiple ground references.
- Respect minimum bend radius to prevent coaxial geometry distortion.
- Verify connector seating torque before energizing the transducer system.
- Do not mix NSv cabling with XL cabling to avoid impedance mismatch.
