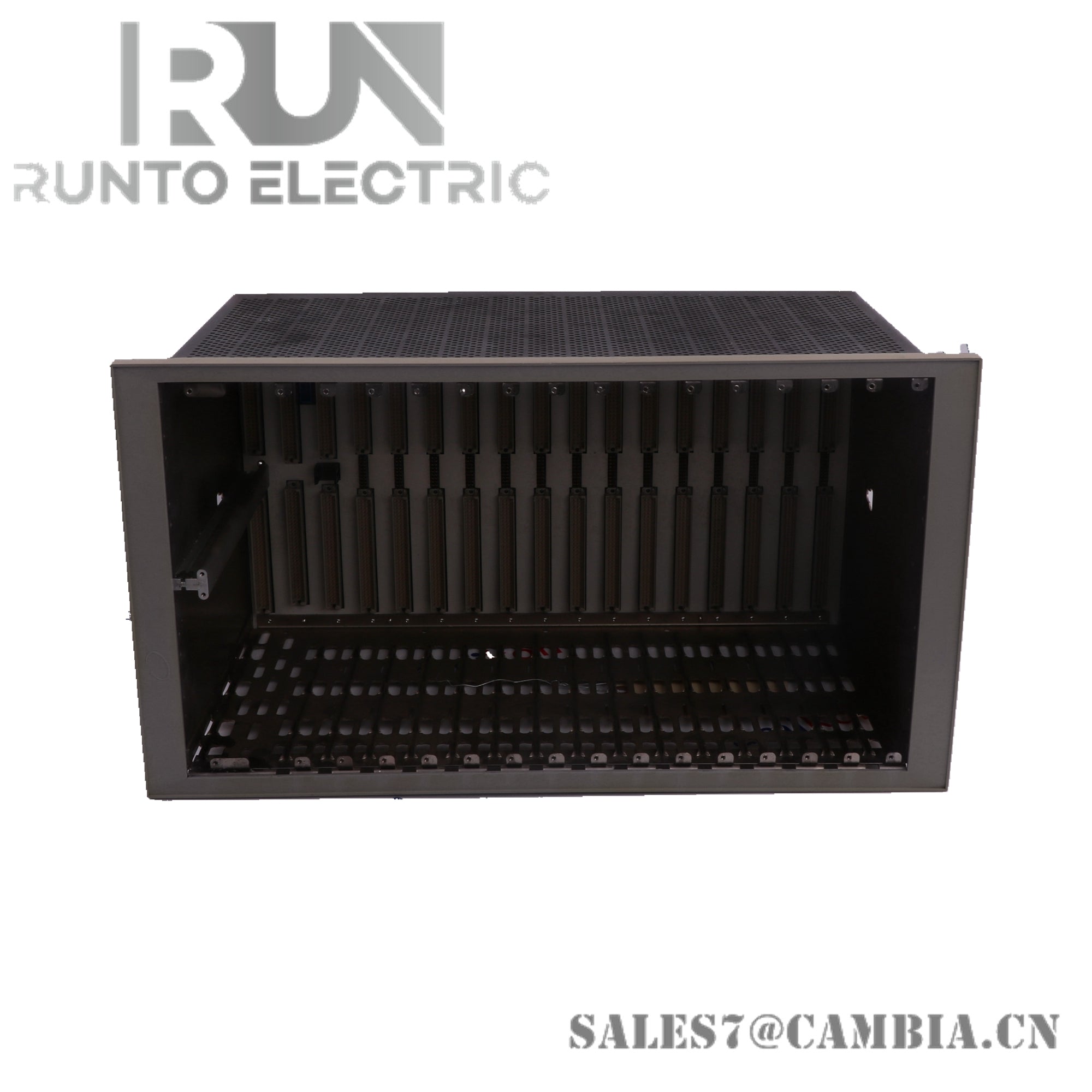

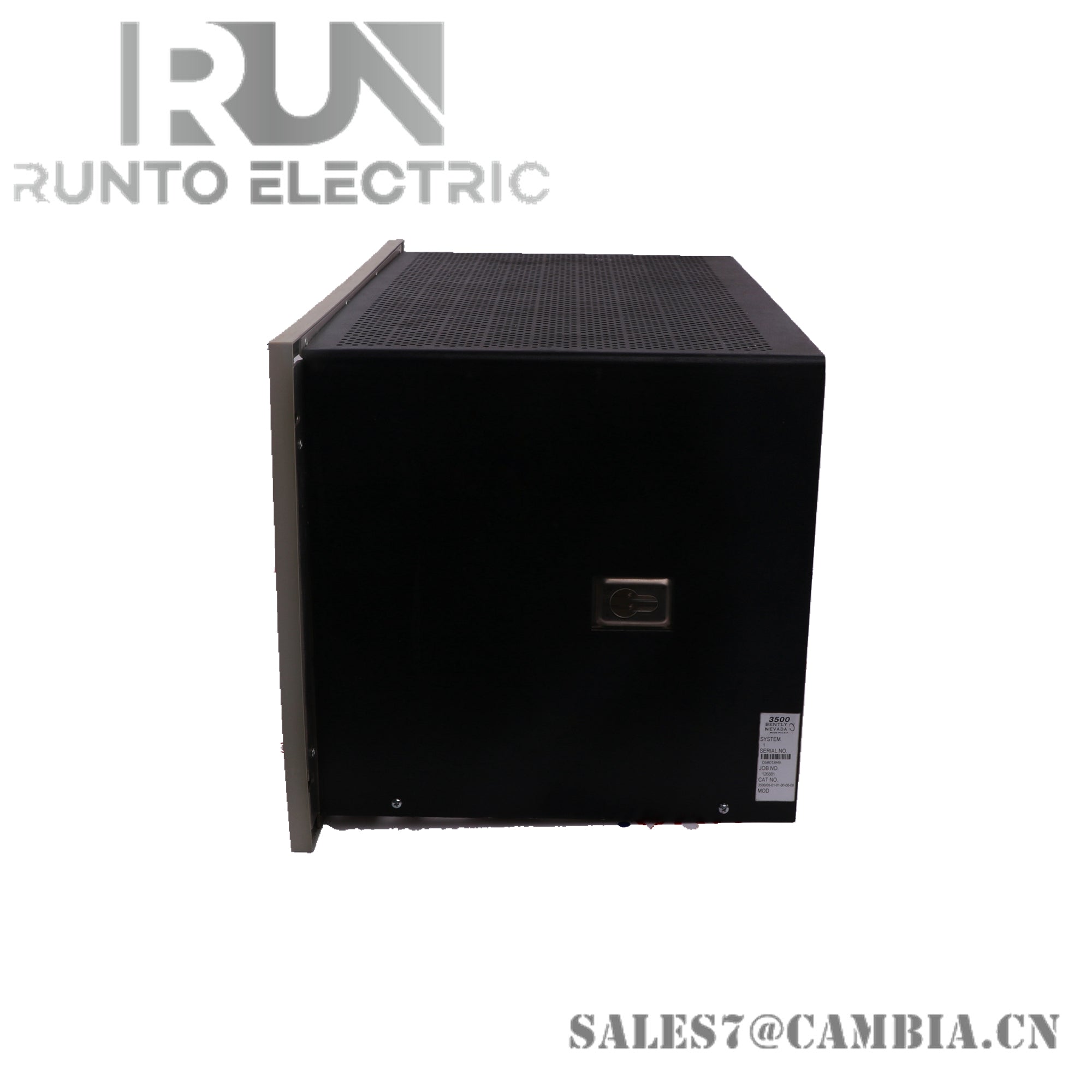

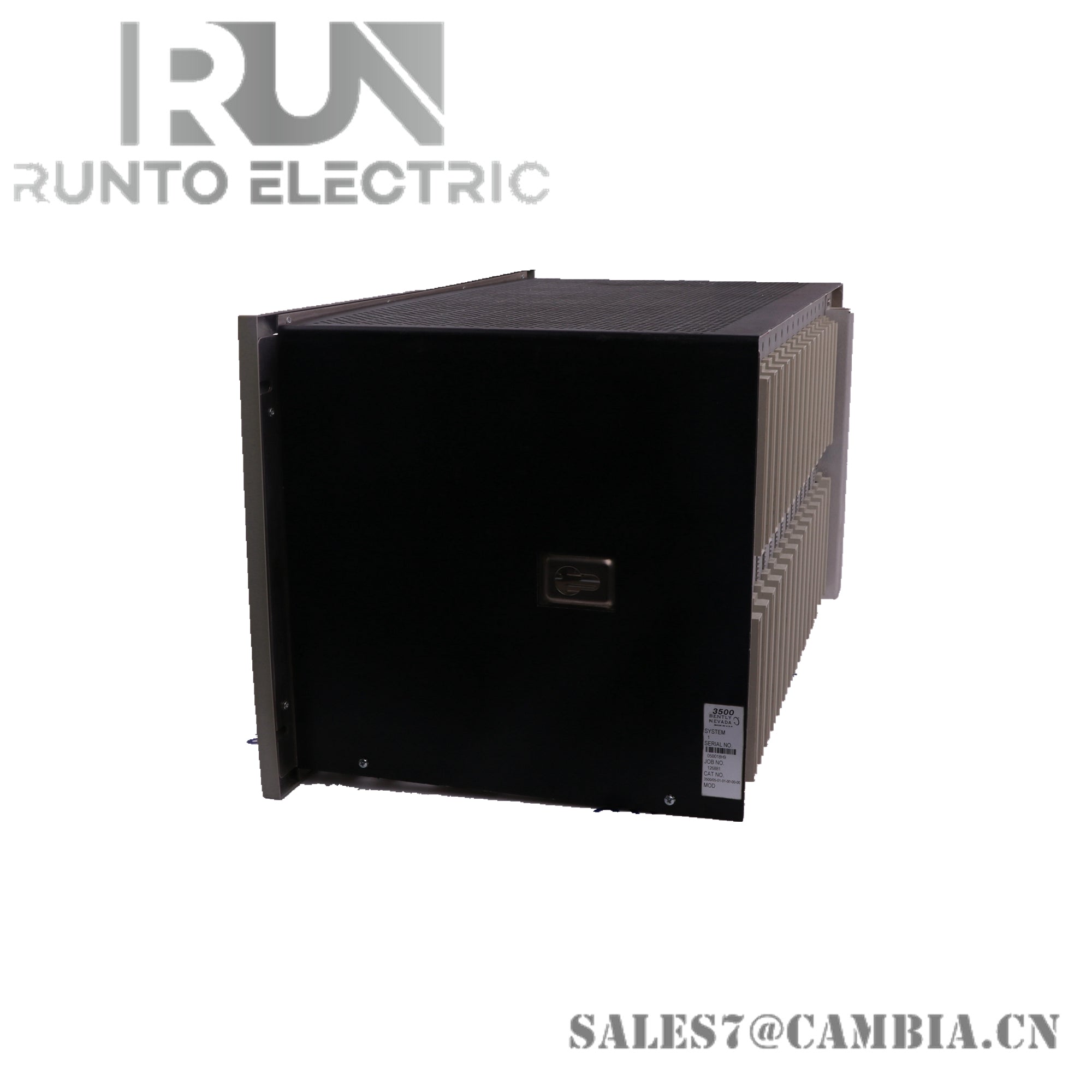

Bently Nevada 3500/05-02-04-00-00-00 12-Inch Mini-Rack

Description

The 3500/05-02-04-00-00-00 is a 12-inch mini-rack used to mount Bently Nevada 3500 series monitoring modules and power supplies. It provides a compact, rugged platform for system integration, enabling reliable communication and power distribution across modules in industrial environments.

Specifications

• Model: 3500/05-02-04-00-00-00
• Rack Type: Mini-rack (12-inch)
• Module Slots: 7 available slots for monitoring and I/O modules
• Mounting Option: Panel mount configuration
• Material: Aluminum alloy or steel
• Dimensions: Approx. 304.8 mm × 24.4 mm × 163.1 mm
• Weight: ~2.2 kg
• Power Supply Positions: Far-left slots reserved for power and rack interface modules
• Certifications: CE, RoHS, CSA/NRTL/C Class I Div 2, ATEX/IECEx Zone 2
• Operating Temperature: –40°C to +85°C
• Installation Formats: Panel, rack, or bulkhead (bulkhead not available for mini-rack)
• Compliance Standards:
  • EMC Directive 2014/30/EU
  • LV Directive 2014/35/EU
  • EN 61000-6-2 / EN 61000-6-4
  • EN 61010-1


Features

• Modular Design: Supports flexible configuration of 3500 series modules
• Backplane Communication: Enables seamless data exchange between installed modules
• Compact Footprint: Ideal for installations with limited cabinet space
• Multiple Mounting Options: Adaptable to various industrial setups
• Environmental Resilience: Certified for marine, offshore, and hazardous locations
• Easy Maintenance: Modular layout simplifies upgrades and replacements
• System Integration: Compatible with internal barriers and display modules (with limitations)
• Secure Wiring Access: Rear-accessible I/O connections for streamlined installation
