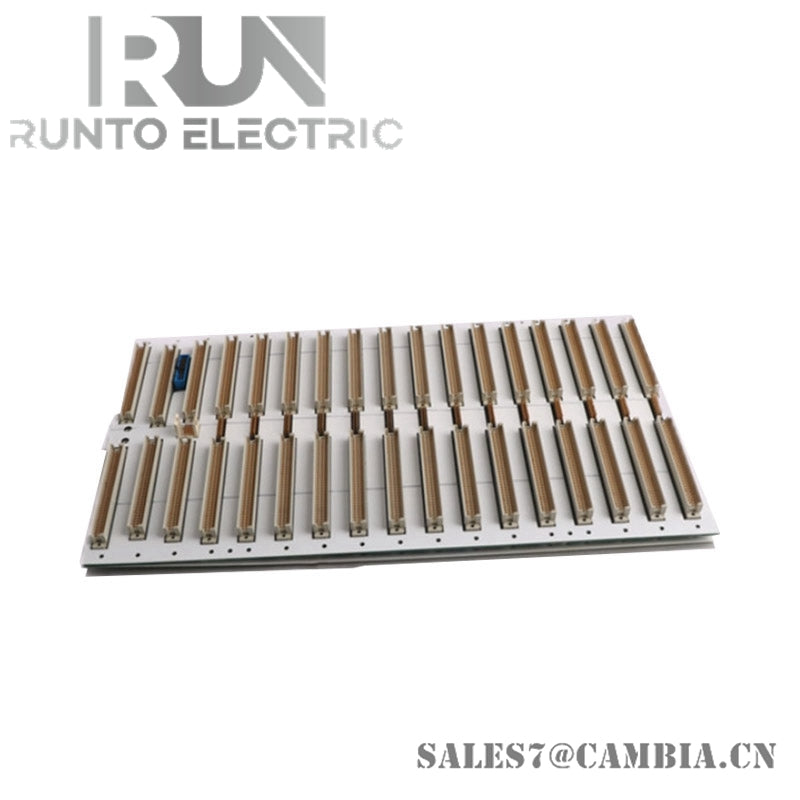

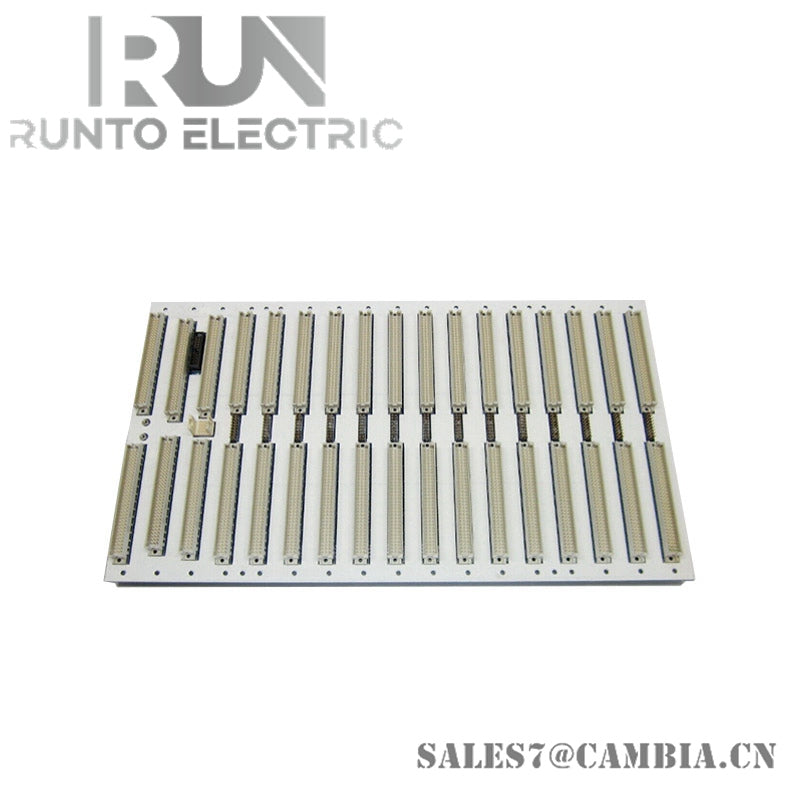

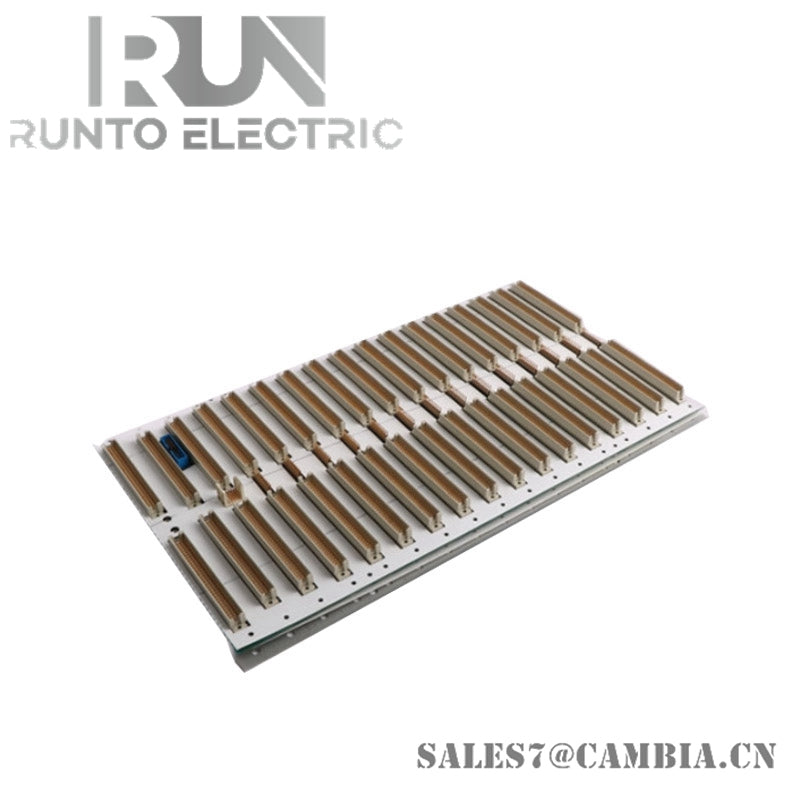

Bently Nevada 3500/05 138945-01 Main Board

Description

The Bently Nevada 138945-01 is a main board module designed for the 3500 Machinery Protection System. It serves as the central processing unit, managing signal acquisition, system integration, and communication for condition monitoring and machinery protection in critical industrial environments such as oil & gas, power generation, and petrochemical facilities.

Specifications

• Model Number: 138945-01
• Manufacturer: Bently Nevada (GE Measurement & Control)
• System Compatibility: 3500 Monitoring and Protection System
• Power Supply: 24 VDC
• Power Consumption: 10 W
• Operating Temperature: −40°C to +70°C
• Storage Temperature: −30°C to +85°C
• Environmental Protection: IP20
• Mounting: Rack-mounted (3500/05 rack system)
• Dimensions: Approx. 2.5 cm × 2.0 cm × 2.3 cm
• Weight: 1.02 kg

Features

• Core Processing Unit: Provides essential control and signal processing for the 3500 system
• High Reliability: Designed for continuous operation in mission-critical environments
• System Integration: Interfaces with various I/O modules and communication gateways
• Diagnostics Support: Enables system health monitoring and fault detection
• Compact Form Factor: Fits into standard 3500 rack configurations
• Global Compliance: CE certified and built to industrial standards
