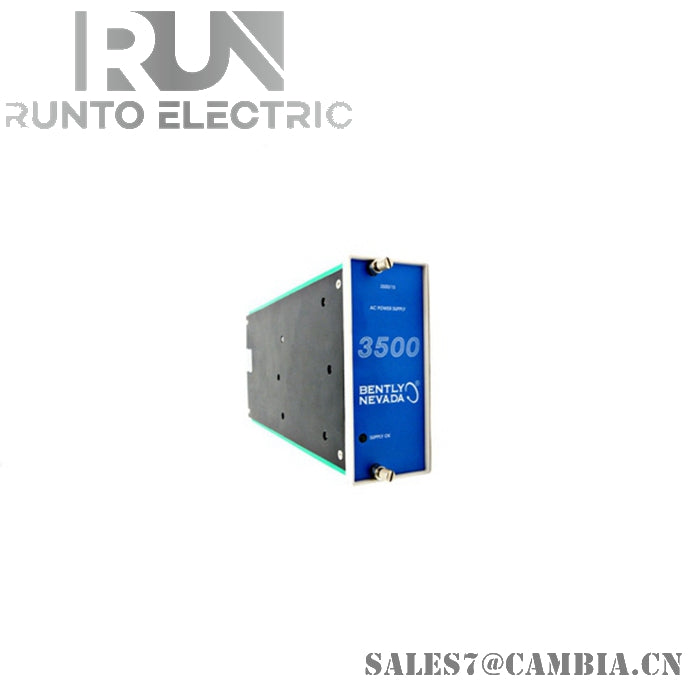

Bently Nevada 3500/15-05-05-02 Power Supply

    Bently Nevada 3500/15-05-05-02 Power Supply

      Description

      Description:

      • Manufacturer: Bently Nevada
      • Model: 3500/15-05-05-02
      • Catalog: 3500
      • Description: Bently Nevada 3500/15-05-05-02
      • Origin: United States (US)
      • Dimension: 16cm16cm12cm
      • Weight: 0.8kg

      Details:

      Description: The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.

      When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.

      Removing or inserting either power supply module does not disrupt the operation of the rack as long as a second power supply is installed. The 3500/15 AC and DC Power Supplies accept a wide range of input voltages and convert them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:

      • Universal AC Power
      • High Voltage DC Power Supply
      • Low Voltage DC Power Supply

      The Universal AC Power Supply and PIM (Power Input Module) are not compatible with the Legacy 3500 AC Power Supply, High Voltage AC PIM, and Low Voltage AC PIM.


      NEW AND ORIGIN ITEM IN STOCK

      WITH ONE YEAR WARRANTY

      1-3 DAYS DELIVERY


      inquiry details, please pay attention as below:

      1. All quotes based on EXW only.
      2. Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/FedEx.
      3. Payment terms: 100% T/T PAYMENTS before shipping.
