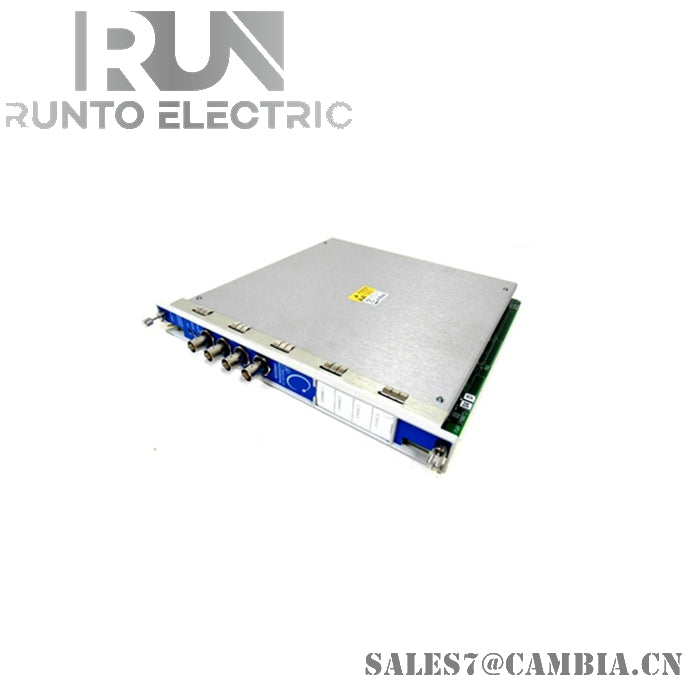

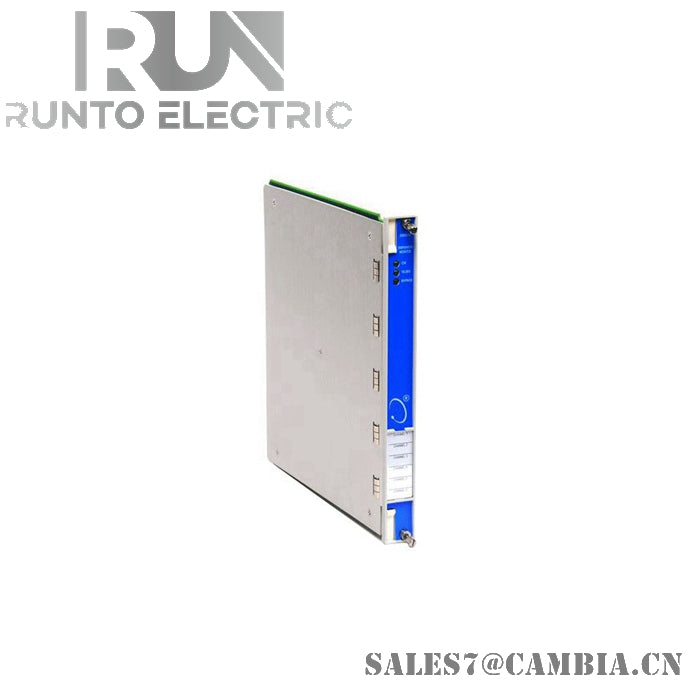

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module

Description:

The 4-Channel Relay Module is a full-height module designed for versatile control applications. Each output of the module can be independently programmed to perform voting logic, and each relay utilized includes Alarm Drive Logic. You can program this Alarm Drive to meet your specific application needs using the 3500 Rack Configuration Software.

Specifications:

• Power Consumption: 5.8 watts typical
• Type of Relays: Single-pole, double-throw (SPDT) relays
• Environmental Sealing: Epoxy-sealed
• Arc Suppressor: 250 Vrms, installed as standard
• Contact Life: 100,000 cycles @ 5 A, 24 Vdc or 240 Vac
• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 95%, non-condensing
• Main Module Dimensions: 241 mm x 24.4 mm x 242 mm (9.50 in. x 0.96 in. x 9.52 in.), Weight: 0.7 kg (1.6 lb.)
• I/O Module Dimensions: 241 mm x 24.4 mm x 99.1 mm (9.50 in. x 0.96 in. x 3.90 in.), Weight: 0.4 kg (1.0 lb.)
• Rack Space Requirements: Main Module 1 full-height front slot
