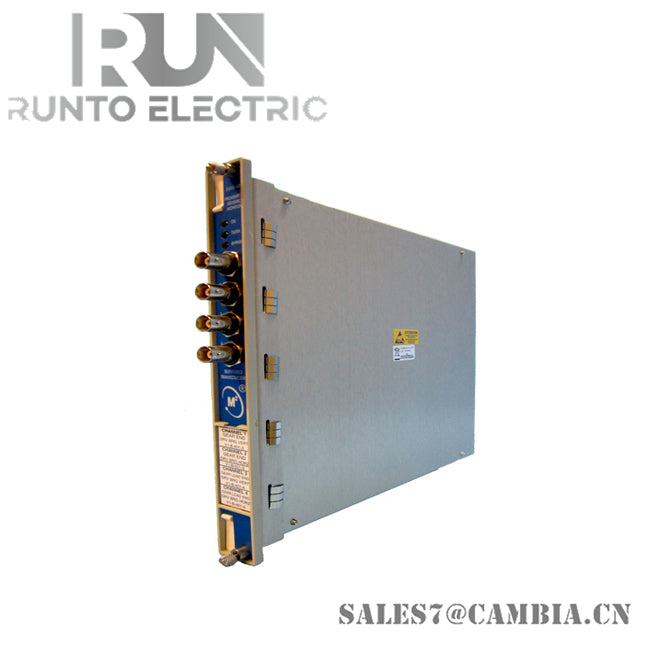

Bently Nevada 3500/33-01-02 149986-01 Spare 16-Channel Relay Control Module

Specifications

Inputs:

• Power Consumption: 5.8 watts typical

Outputs:

• Front Panel LEDs:
  • OK LED: Illuminates when the 3500/33 16-Channel Relay Module is operating properly.
  • TX/RX LED: Flashes during communication with other modules in the 3500 rack.
  • CH Alarm LED: Illuminates when the relay channel is in an alarm state.
• Relay Type: Single-pole Double-throw (SPDT) Relay
• Relay Arc Suppressor: 250 Vrms (installed as standard)
• Relay Contact Life: 10,000 cycles
• Relay Operation: Four groups of four channels are switch selectable for Normally De-energized (ND) or Normally Energized (NE) operation.

Environmental:

• Sealing: Epoxy-sealed

Physical:

• Main Module Dimensions (HxWxD): 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in)
• Weight: 0.7 kg (1.6 lb)
