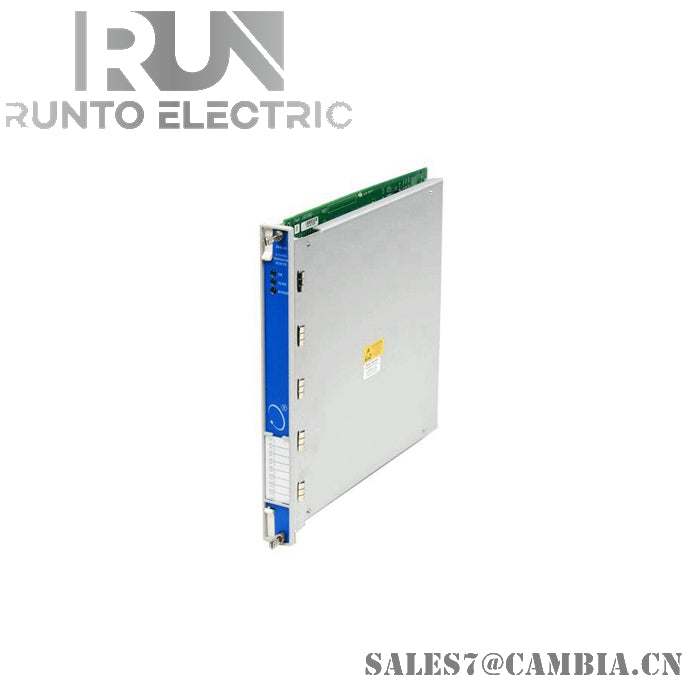

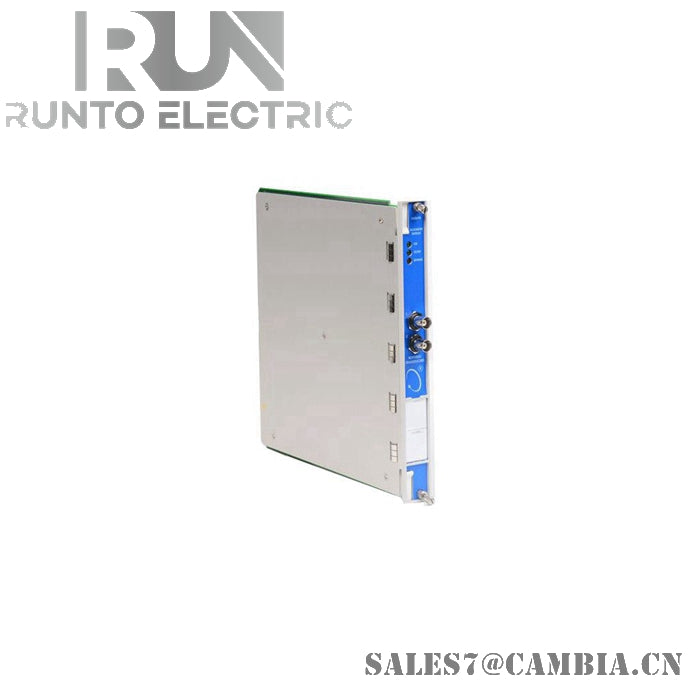

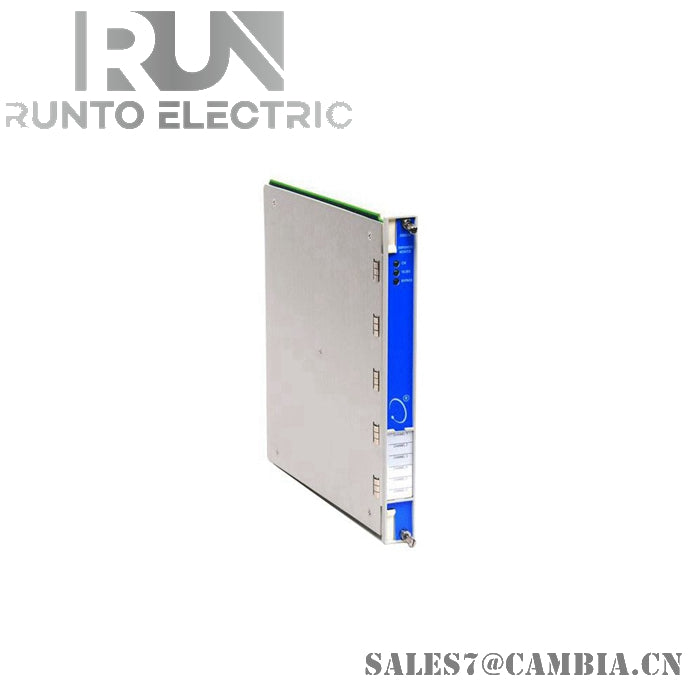

Bently Nevada 3500/94 145988-01 VGA Display Module

Description:

The 145988-01 module displays system data on a standard color VGA monitor with touch screen functionality. It includes two key components: the 3500/94 VGA Display Module and its I/O card, along with a VGA display monitor.

Specifications:

• Display Type: Standard color VGA monitor with touch screen
• Monitor Mounting Distance: Up to 8 meters (33 feet) from the rack using standard cabling
• Power Consumption: 4.6 watts max
• Operating Temperature: -20°C to 65°C (-22°F to 149°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 95%, non-condensing
• Dimensions: 24.3 cm x 4.6 cm x 15.5 cm (9.6 in x 1.8 in x 6.1 in)
• Weight: 0.55 kg (1.21 lbs)

Features:

• Custom Screens: Can configure up to 9 custom screens to display specific system data (e.g., 1X measurements, gap values, or machine train groupings)
• API-670 Compatible Screen: Available, featuring a “3300-style” bargraph and numerical values for each rack slot’s monitor LED indicators
• Status Indicators: Includes OK and Bypass LEDs for system status indication
• Configuration Software: Uses 3500 Rack Configuration Software to set up language, display type, and data parameters
• Touch Screen Functionality: Provides an intuitive interface for system monitoring and control
