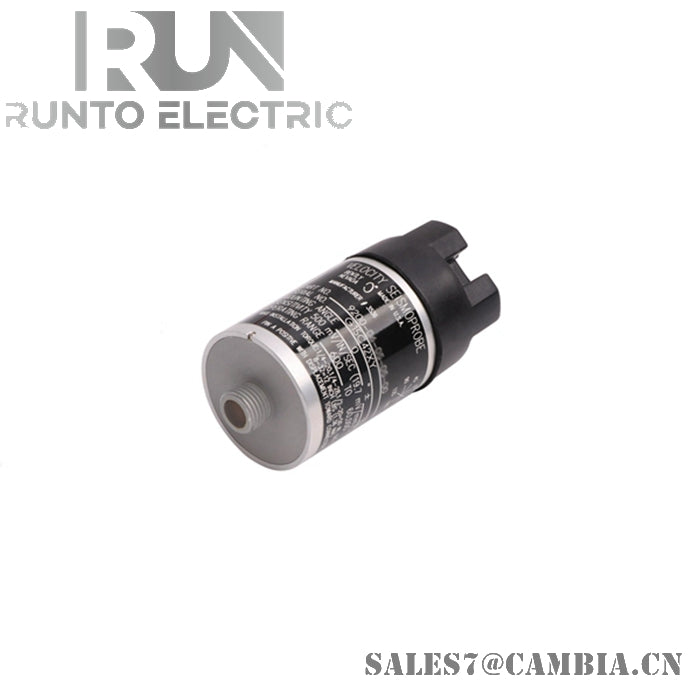

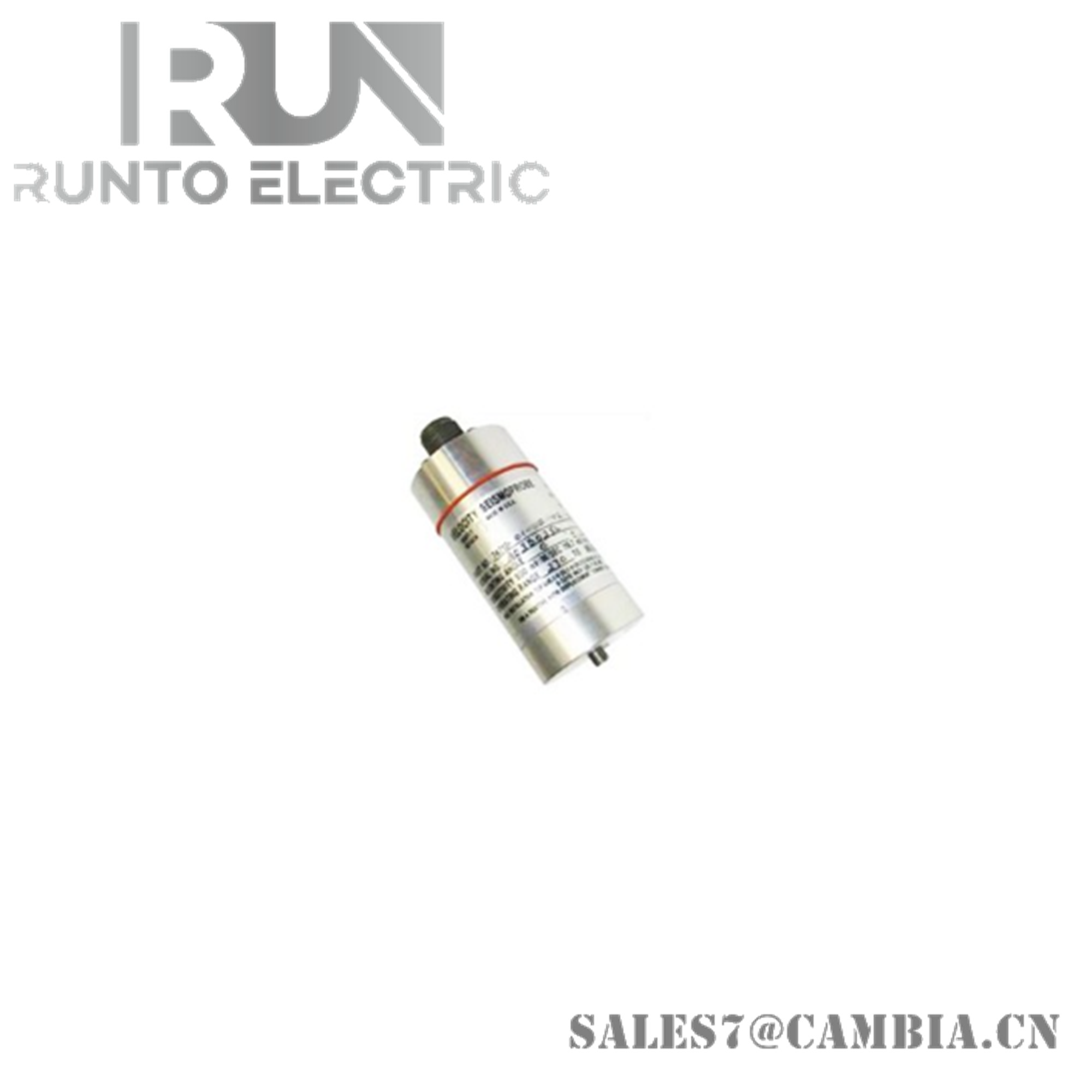

Bently Nevada 9200-06-05-05-00 Velocity Transducers

Description

• Type: Velocity Seismoprobe Transducer

• Brand: Bently Nevada

• Model Number: 9200-06-05-05-00

Features:

• Two-Wire System: Simplifies installation and reduces wiring complexity.
• Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
• Mounting Options: Terminal block top mount, no base, 1/2-in 20 UNF-3A stud.
• Temperature Range: -29°C to +121°C (-20°F to +250°F).
• Frequency Response: Minimum operating frequency of 10 Hz (600 cpm) to a maximum of 1 kHz (60,000 cpm), ±0, -3 dB typical.
• Mechanical Shock Resistance: Withstands shocks up to 50 g peak along the non-sensitive transverse axis.

Specifications:

• Transducer Mounting Angle: 0° ± 100°
• Output Signal: Voltage output proportional to vibration velocity.
• Operating Temperature: -29°C to +121°C (-20°F to +250°F).
• Frequency Range: 10 Hz to 1 kHz.
• Sensitivity: 20 mV/mm/s (500 mV/in/s).
