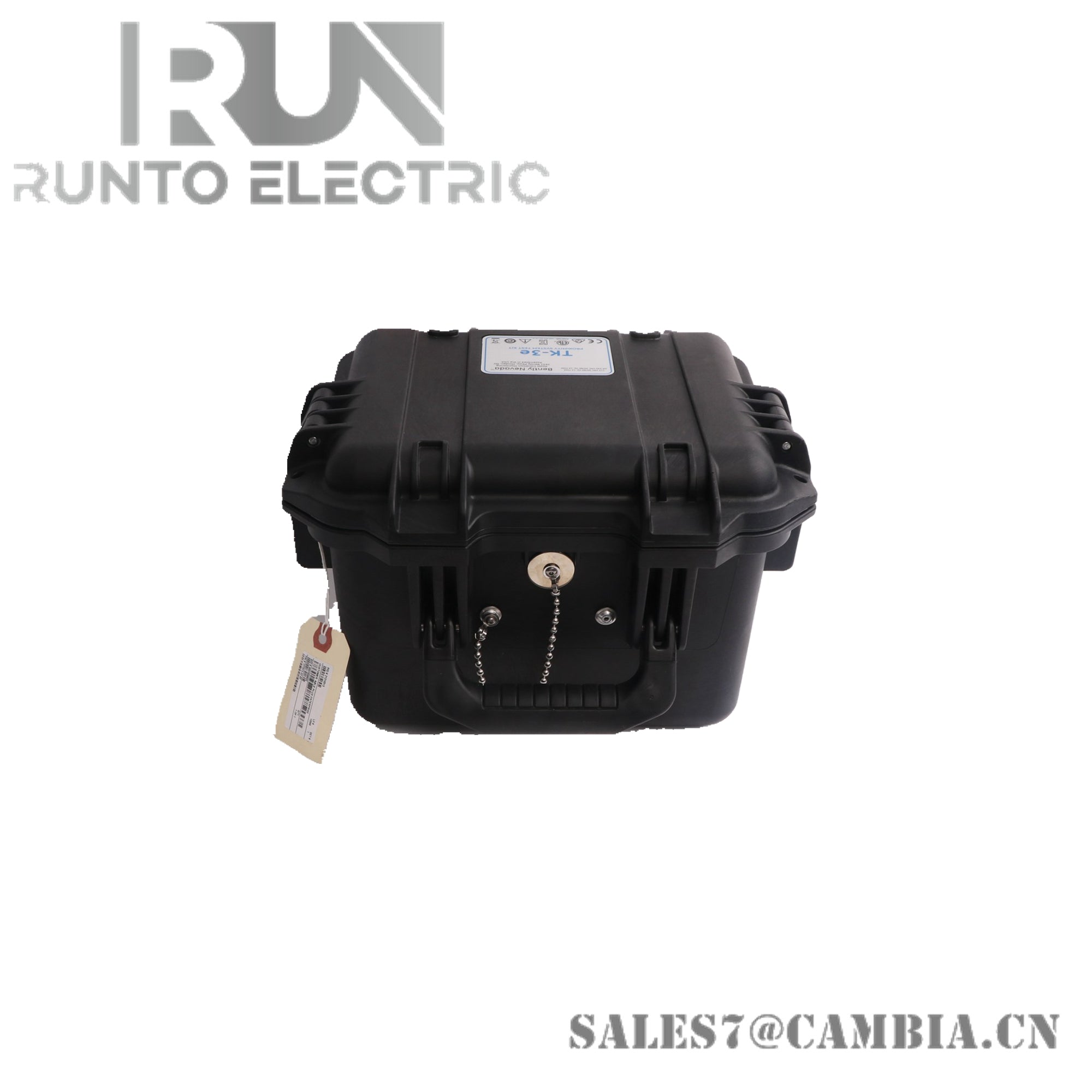

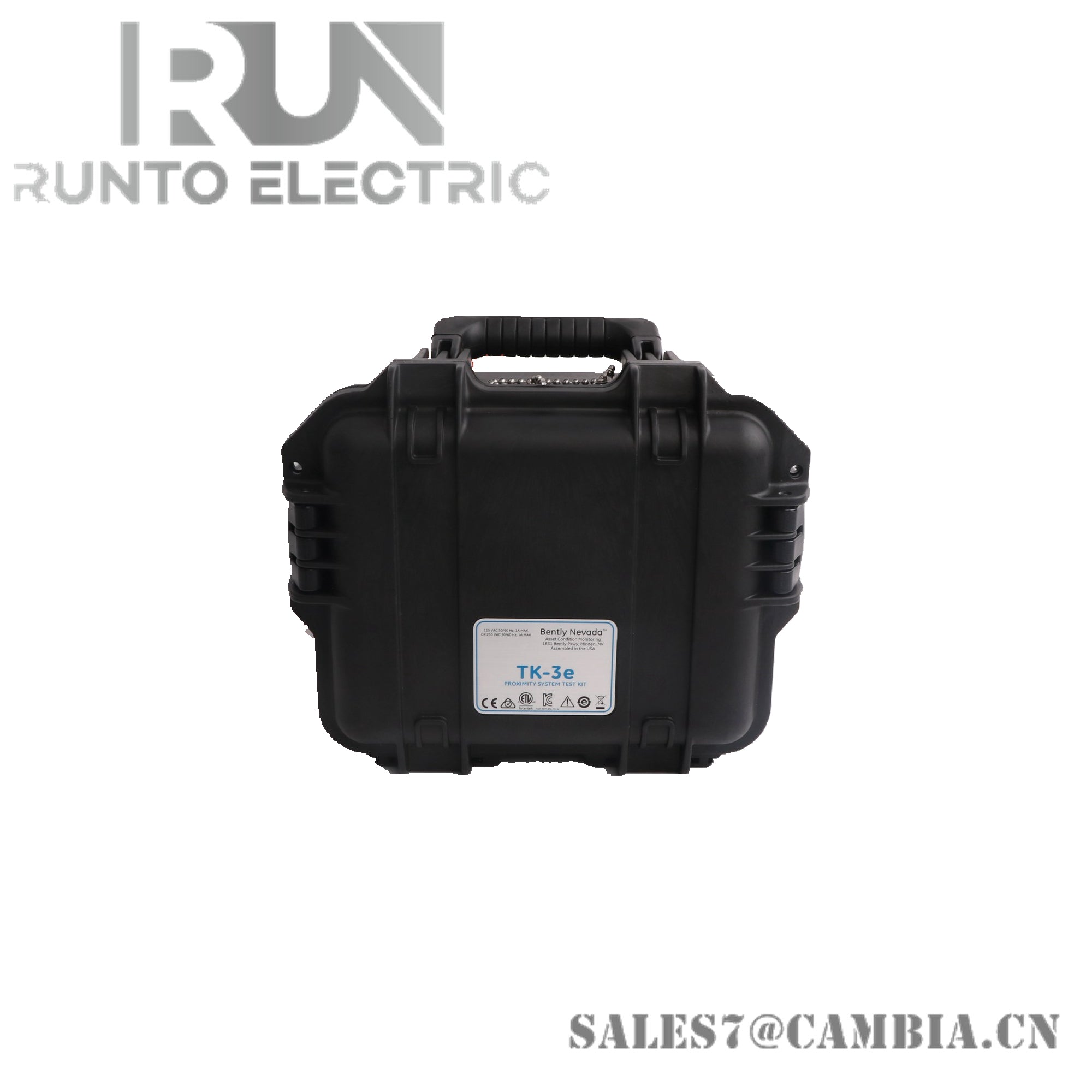

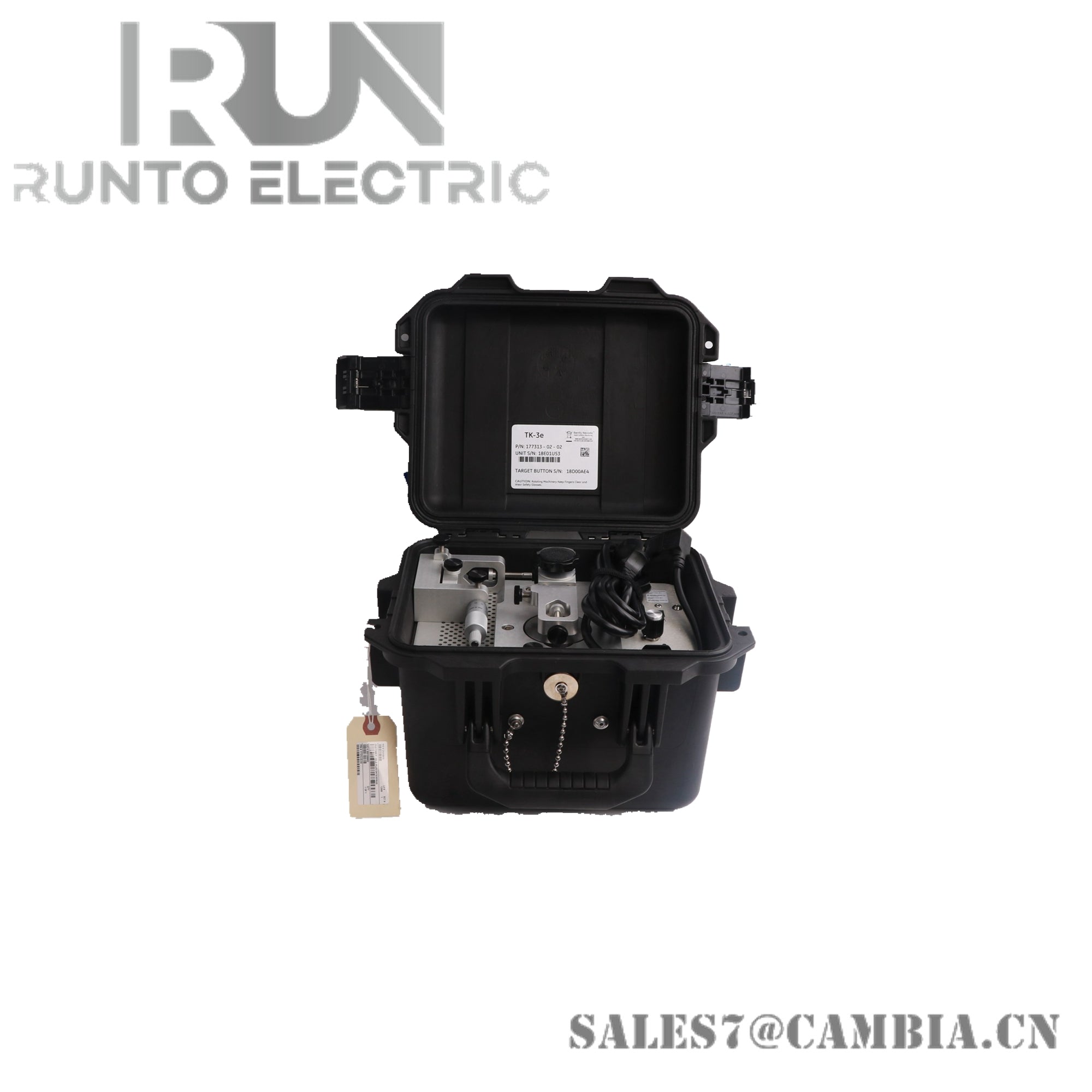

Bently Nevada TK-3G 177314-02 Air Driven

Description

The Bently Nevada TK-3G 177314-02 is an air-driven calibration kit designed for testing and calibrating proximity probe systems. It ensures accurate vibration amplitude and phase calibration for machinery protection systems, particularly in rotating equipment like turbines, compressors, and generators. This model supports multi-probe setups and is engineered for high precision in industrial environments.

Specifications

• Model: TK-3G
• Part Number: 177314-02
• Type: Air-driven calibration kit
• Power Requirement: 90 psi (6.2 bar) compressed air
• Maximum Speed: 0 to 5000 cpm ± 1000 cpm
• Vibration Amplitude Range: 50 µm to 254 µm (2 to 10 mils) peak-to-peak
• Spindle Micrometer Range: 0 to 25.4 mm (0 to 1000 mils)
• Probe Diameter Compatibility: 5 mm to 19 mm (0.197 in to 0.75 in)
• Target Material: AISI 4140 alloy steel
• Humidity Resistance: 95% non-condensing
• Exposure Rating: IP54 (dust and water resistant when closed)
• Operational Temperature: 0°C to 54°C (32°F to 130°F)
• Storage Temperature: –18°C to 65°C (0°F to 150°F)
• Dimensions: 19.5 cm × 29.9 cm × 24.8 cm
• Weight: 5.22 kg (shipping weight approx. 8 kg)
• Warranty: 12 months
• Origin: USA


Features

• Multi-Probe Calibration: Supports up to three channels for simultaneous testing
• High Precision: Micrometer and amplitude control for fine-tuned calibration
• Air-Driven Mechanism: Ensures smooth and consistent vibration simulation
• Robust Construction: Built with industrial-grade materials for durability
• Environmental Protection: IP54-rated enclosure for field use
• Wide Compatibility: Works with various proximity probes and monitoring systems
• Portable Design: Compact and rugged for on-site calibration tasks
• Diagnostic Accuracy: Enables reliable fault detection and vibration analysis
• User-Friendly Interface: Simple setup and operation for maintenance teams
