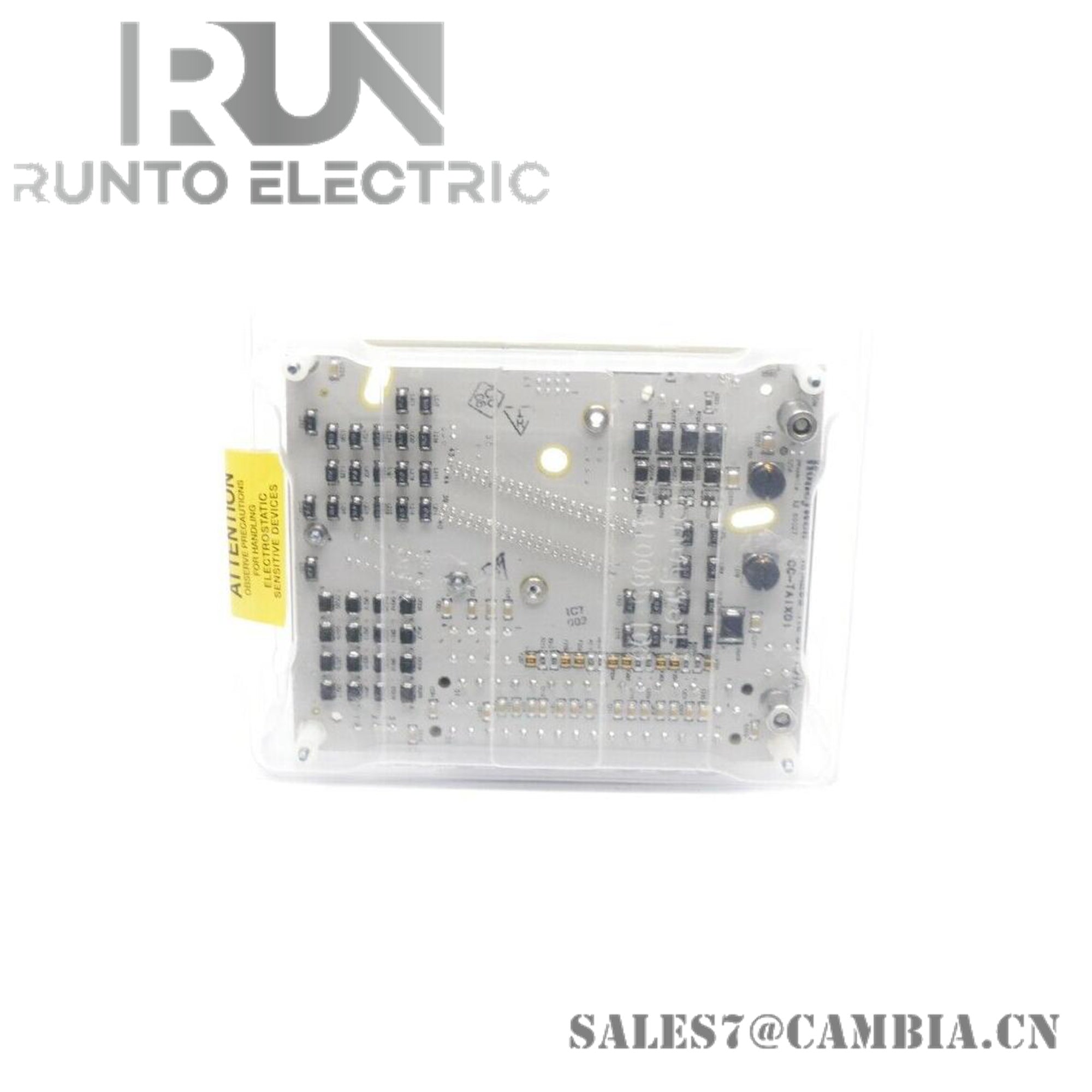

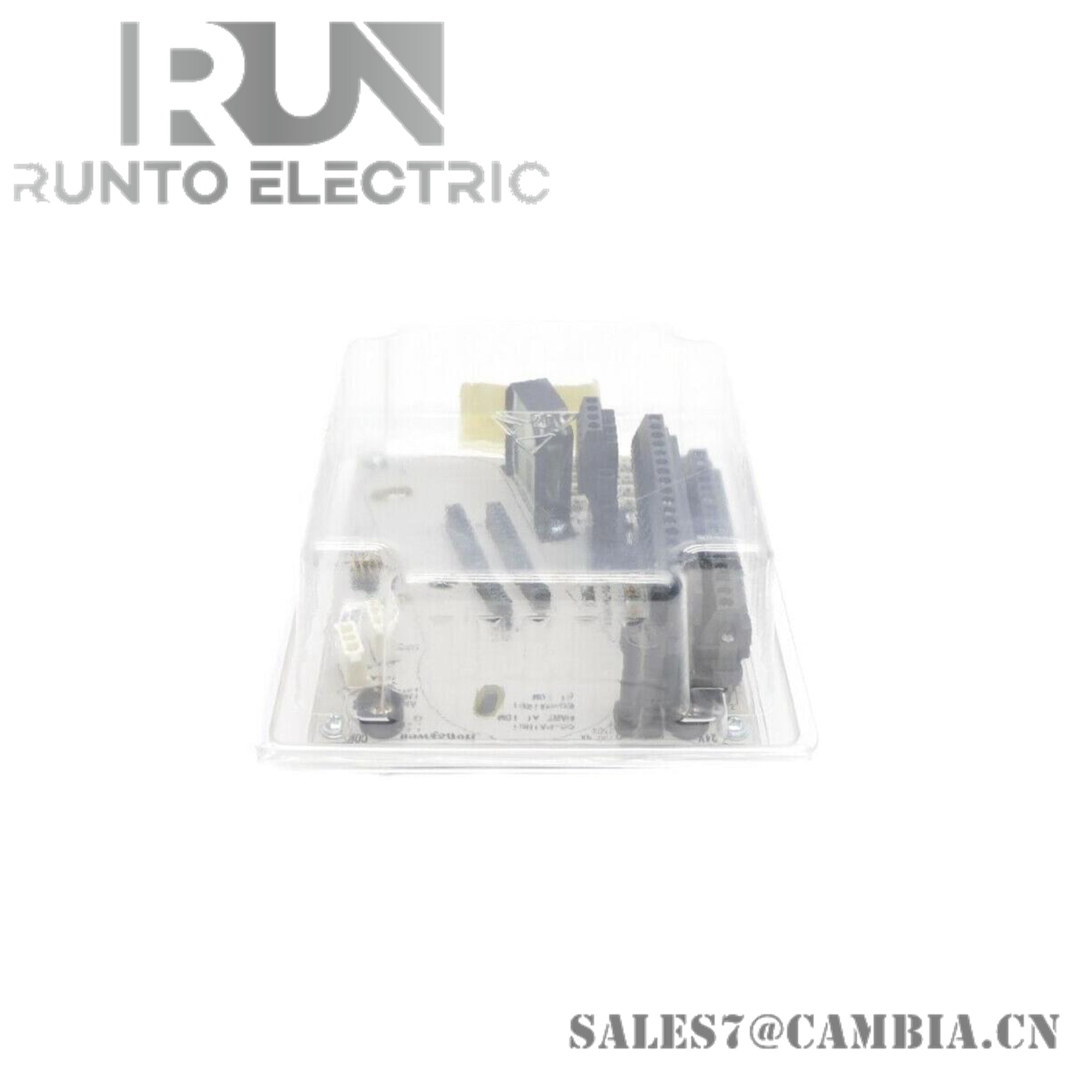

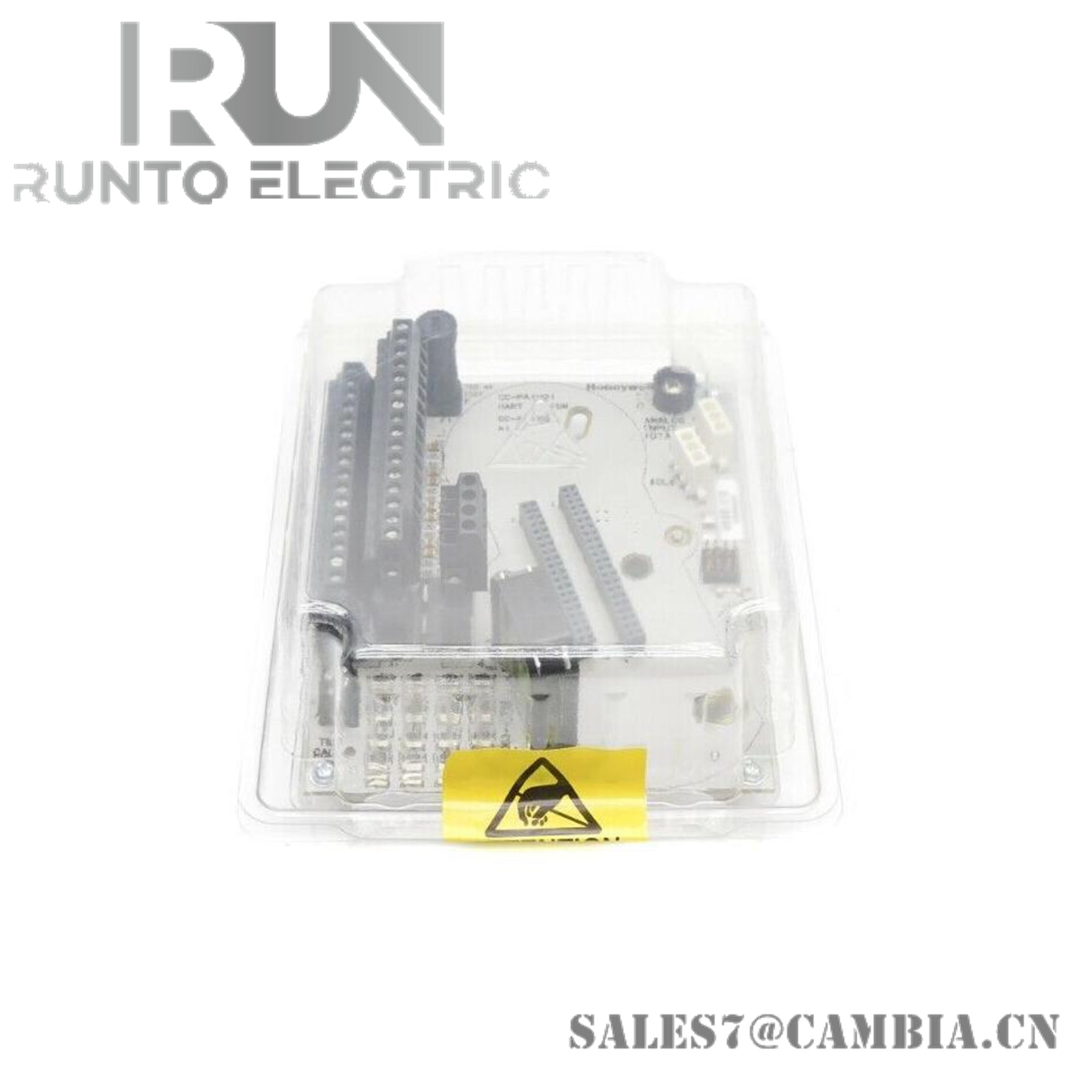

CC-TAIX01 51308363-175 | Honeywell | Analog Input Module

Description

The Honeywell CC-TAIX01 51308363-175 is a high-performance Analog Input Module designed specifically for the Experion PKS Series C I/O architecture. This module serves as a critical interface for translating continuous physical signals from field transmitters into digital data that the control system can process.

Specifications

• Manufacturer: Honeywell
• Model Number: CC-TAIX01
• Part Number: 51308363-175
• Input Channels: 16 non-isolated differential channels
• Signal Range: Standard 4-20mA or 1-5V DC inputs
• System Compatibility: Honeywell Experion PKS Series C
• A/D Conversion: High-resolution analog-to-digital processing for fine signal granularity
• Power Supply: 24V DC typical via the I/O Link power bus
• Mounting Type: Vertical Series C I/O module orientation
• Redundancy: Supports redundant module pairs for increased system availability

Features

• High-Density Design: Provides 16 channels in a compact Series C form factor to maximize cabinet space efficiency.
• HART Communication Support: Enables pass-through of HART digital signals for remote instrument configuration and diagnostics.
• On-Board Signal Conditioning: Features advanced filtering technology to eliminate electrical noise and ensure signal stability.
• Hot-Swappable Capability: Can be removed or replaced while the system is energized, significantly reducing potential downtime.
• Comprehensive Self-Diagnostics: Continuously monitors internal circuitry and channel health, reporting faults immediately to the controller.
• Robust Environmental Protection: Engineered to operate reliably in harsh industrial conditions with vibration and temperature resistance.
• Precision Accuracy: Delivers high-speed sampling and low drift performance to maintain the integrity of critical process loops.
