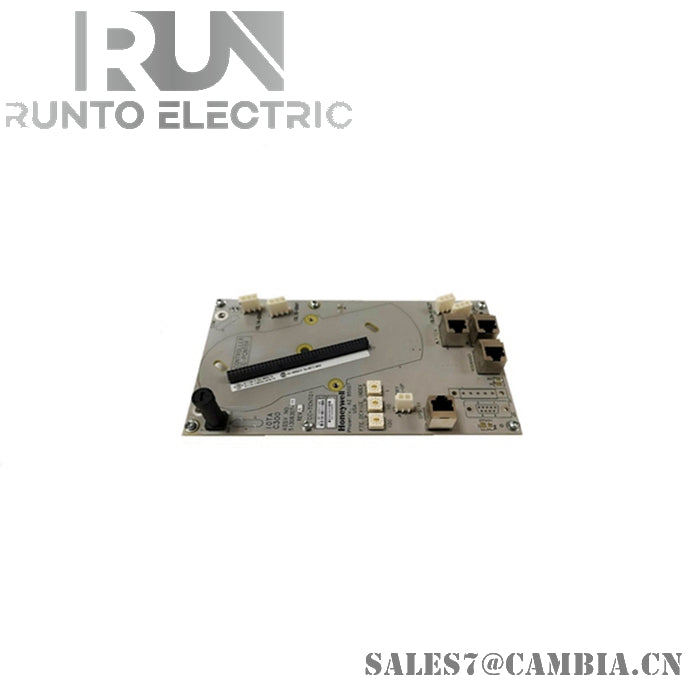

CC-TCNT01 | Honeywell | C300 Controller Input Output Termination Assembly

Description

The Honeywell CC-TCNT01 is a high-performance I/O Termination Assembly (IOTA) designed for use with the C300 controller in distributed control systems. It serves as a critical interface for connecting input and output signals, ensuring reliable communication and control in industrial automation environments.

Specifications

• Model: CC-TCNT01
• Type: Controller Input/Output Termination Assembly (IOTA)
• Controller Power Supply: 24V DC, 0.311A
• Operating Voltage Range: DC 12V to 36V
• Supported Signals: Termination for 32 input and 32 output channels
• Connection Type: Screw terminal connections
• Wire Size Range: 14 to 22 AWG
• Maximum Voltage: 250V AC
• Maximum Current: 10A
• Communication Protocol: Modbus RTU
• Operating Temperature: -20°C to +70°C
• Installation: Designed for integration into control system chassis
• Compatibility: Honeywell Experion PKS (C200, C300 series)

Features

• Comprehensive Termination: Supports FTE, IO links, redundancy, battery, and time source cable termination
• Stable Power Distribution: Ensures consistent power delivery to the C300 controller
• High Reliability: Built to operate in harsh industrial environments with robust protection features
• Modular Design: Facilitates easy integration and system expansion
• Diagnostic LEDs: Status indicators for each input and output channel
• Protection Functions: Includes overcurrent, overvoltage, and overheating safeguards
• Wide Application Range: Ideal for use in power generation, chemical processing, and manufacturing automation
