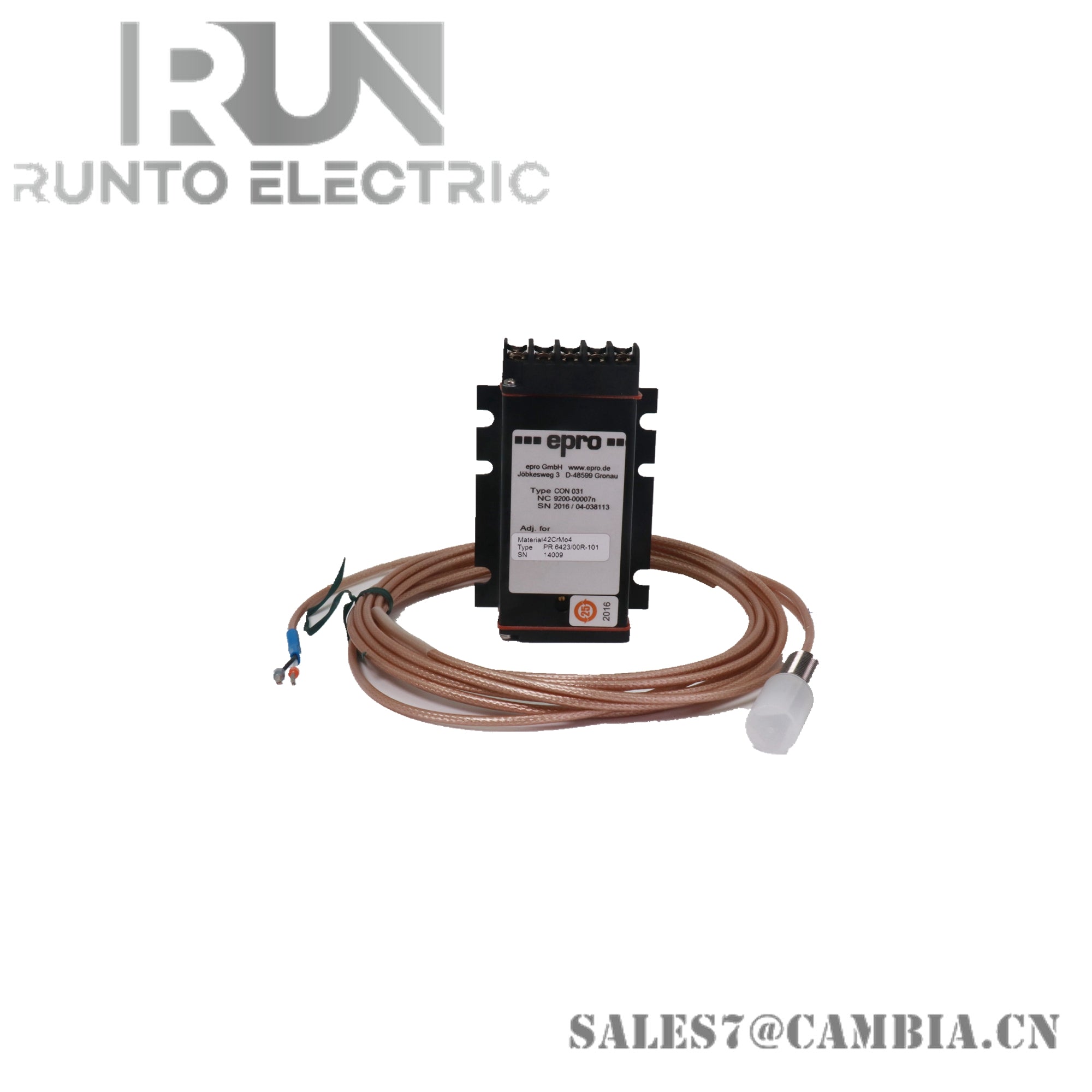

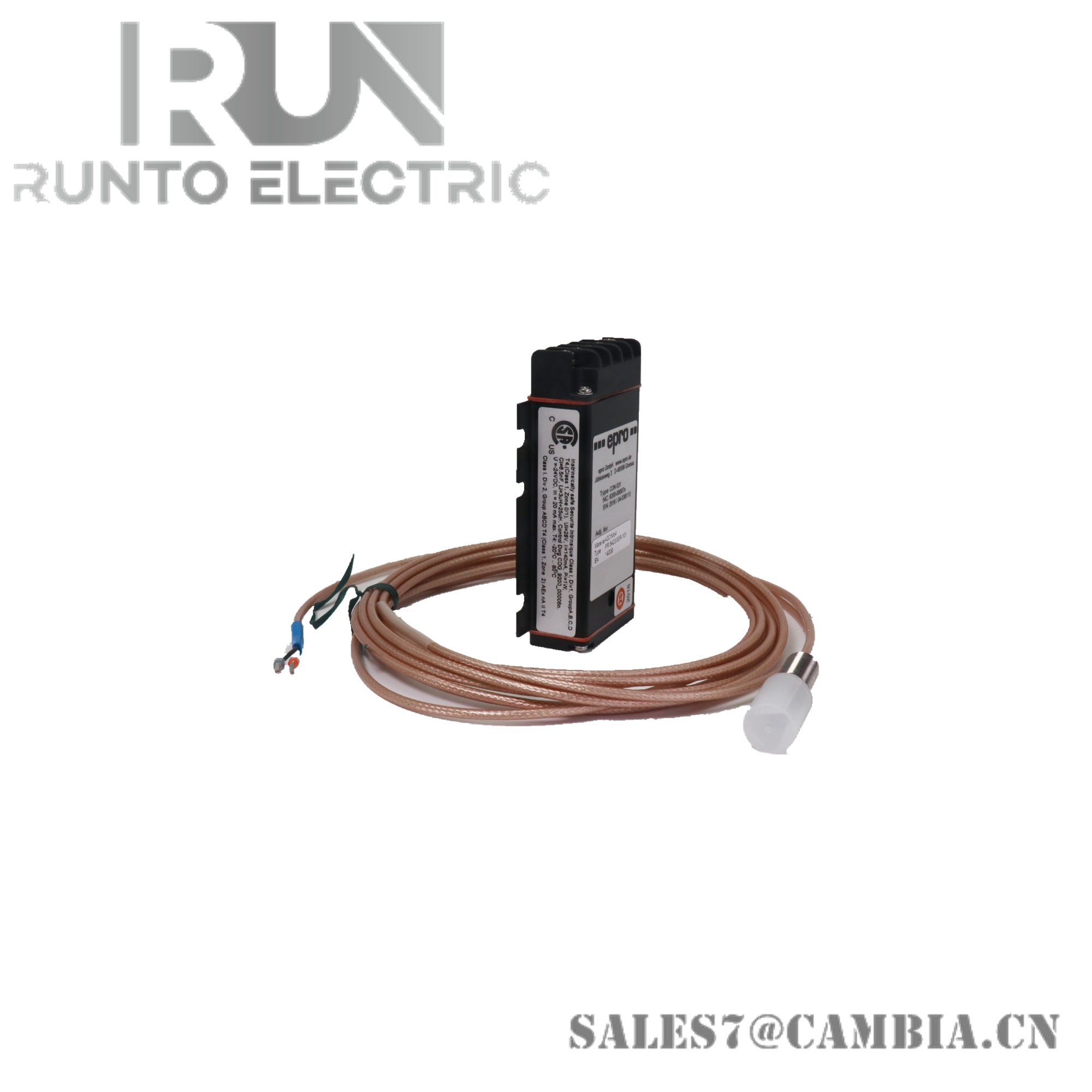

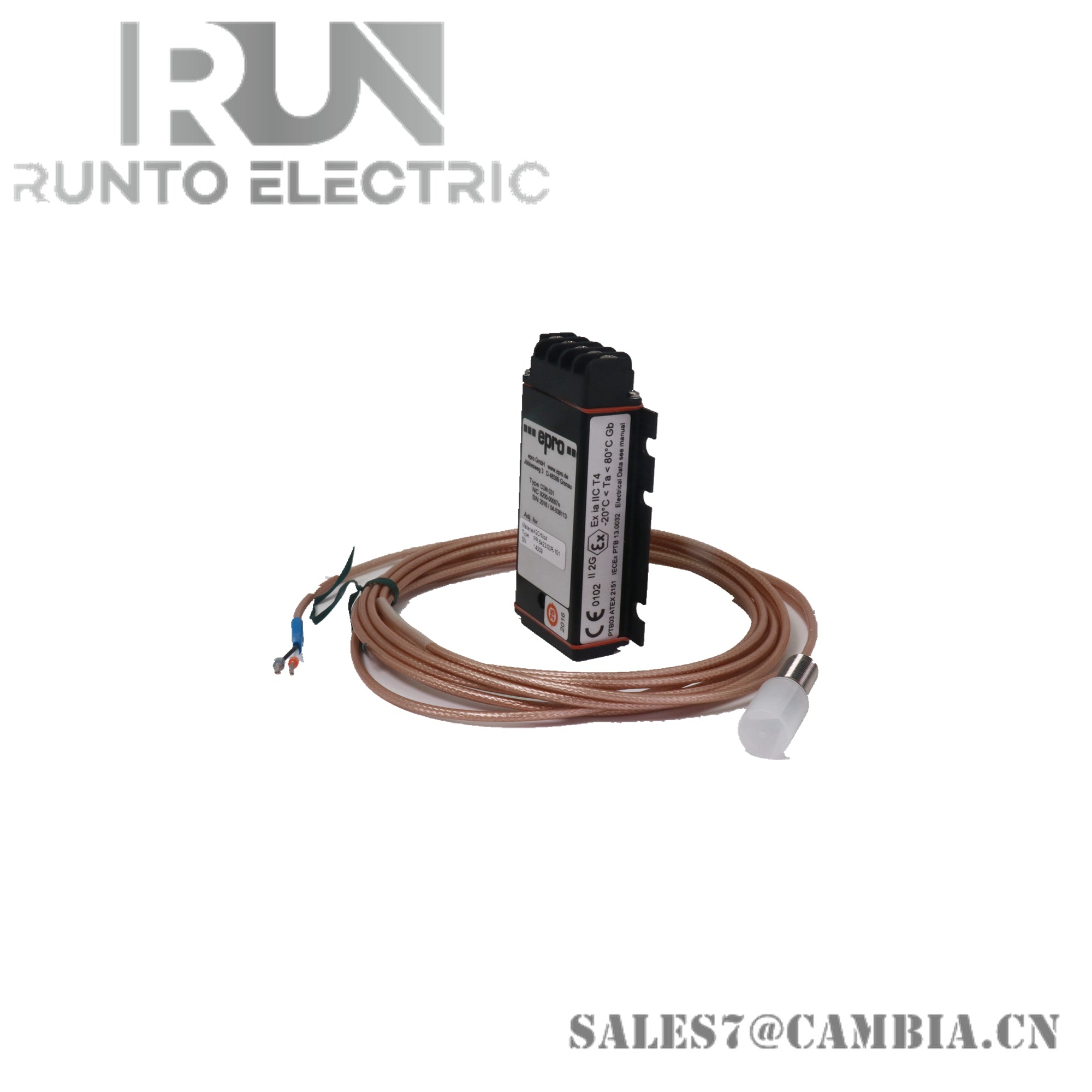

Emerson Epro PR6423/016-000 Eddy Current Displacement Sensor

Description

The Emerson Epro PR6423/016-000 is a non-contact eddy current displacement sensor engineered for high-precision monitoring of shaft vibration, position, and movement in critical turbomachinery. Its rugged stainless steel construction and wide temperature tolerance make it ideal for harsh industrial environments such as power generation, oil & gas, and manufacturing.

Specifications

• Model Number: PR6423/016-000
• Sensor Type: Eddy current displacement sensor
• Measurement Range: 0 to 2 mm (dynamic range up to 500 μm)
• Sensitivity: 8 V/mm ±5%
• Nominal Gap: 1.5 mm
• Target Material: Electrically conductive steel
• Frequency Response: 0 to 20 kHz
• Operating Temperature: -35°C to +180°C (short-term up to +200°C)
• Storage Temperature: -40°C to +70°C
• Protection Class: IP66
• Power Supply: -24 VDC
• Output Impedance: 100 ohms
• Housing Material: Stainless steel with PEEK sensor tip
• Dimensions: 4.1 cm × 15.9 cm × 10.8 cm
• Weight: Approx. 0.3 kg

Features

• Non-Contact Measurement: Eliminates mechanical wear and ensures long-term reliability
• High Sensitivity: 8 V/mm output enables precise displacement and vibration detection
• Wide Temperature Range: Operates in extreme thermal conditions up to 200°C
• Rugged Design: IP66-rated stainless steel housing resists dust, water, and corrosion
• System Compatibility: Integrates with CON 011, 021, and 041 converters
• Flexible Installation: Available with various cable lengths and mounting options
• Hazardous Area Approved: Certified for use in explosive environments
