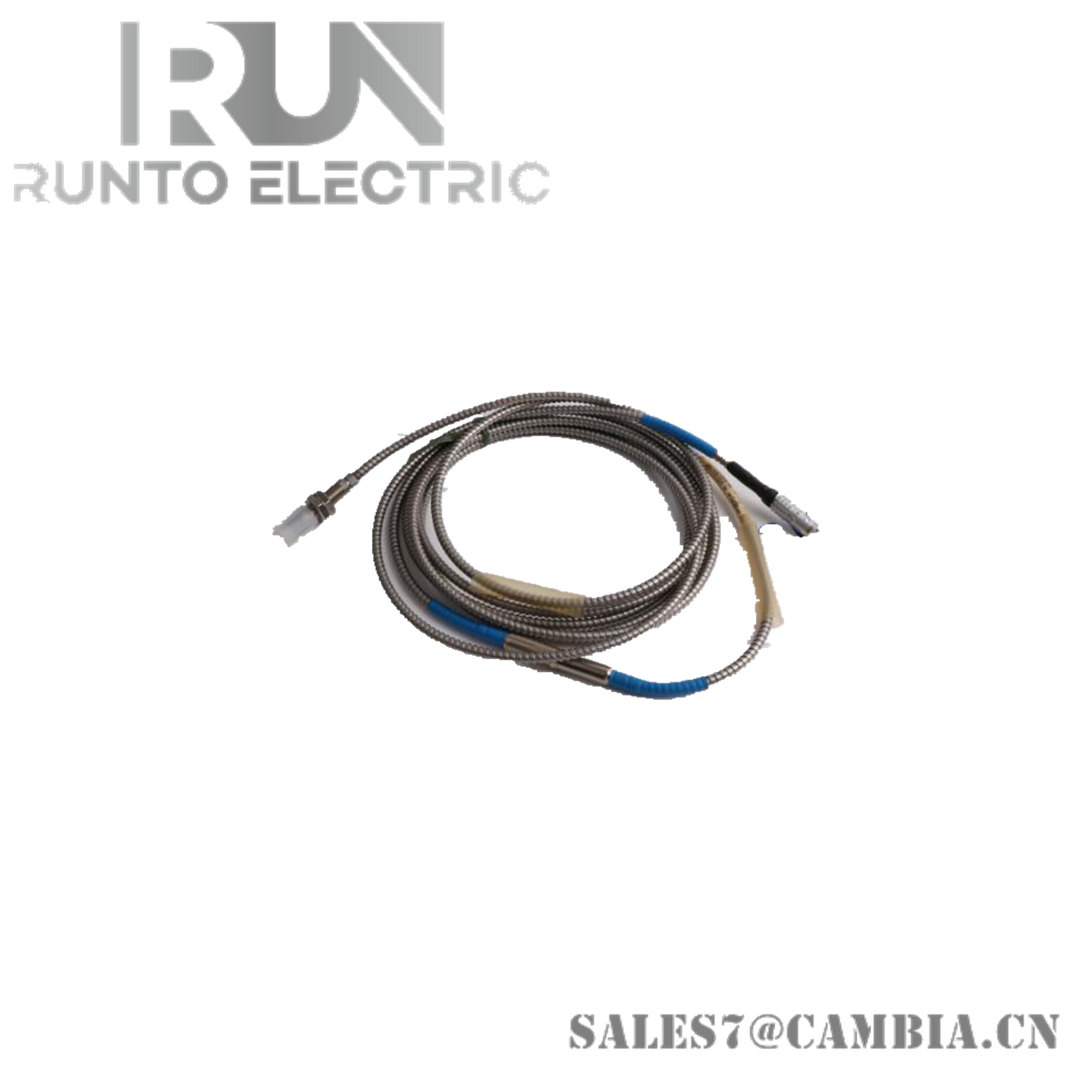

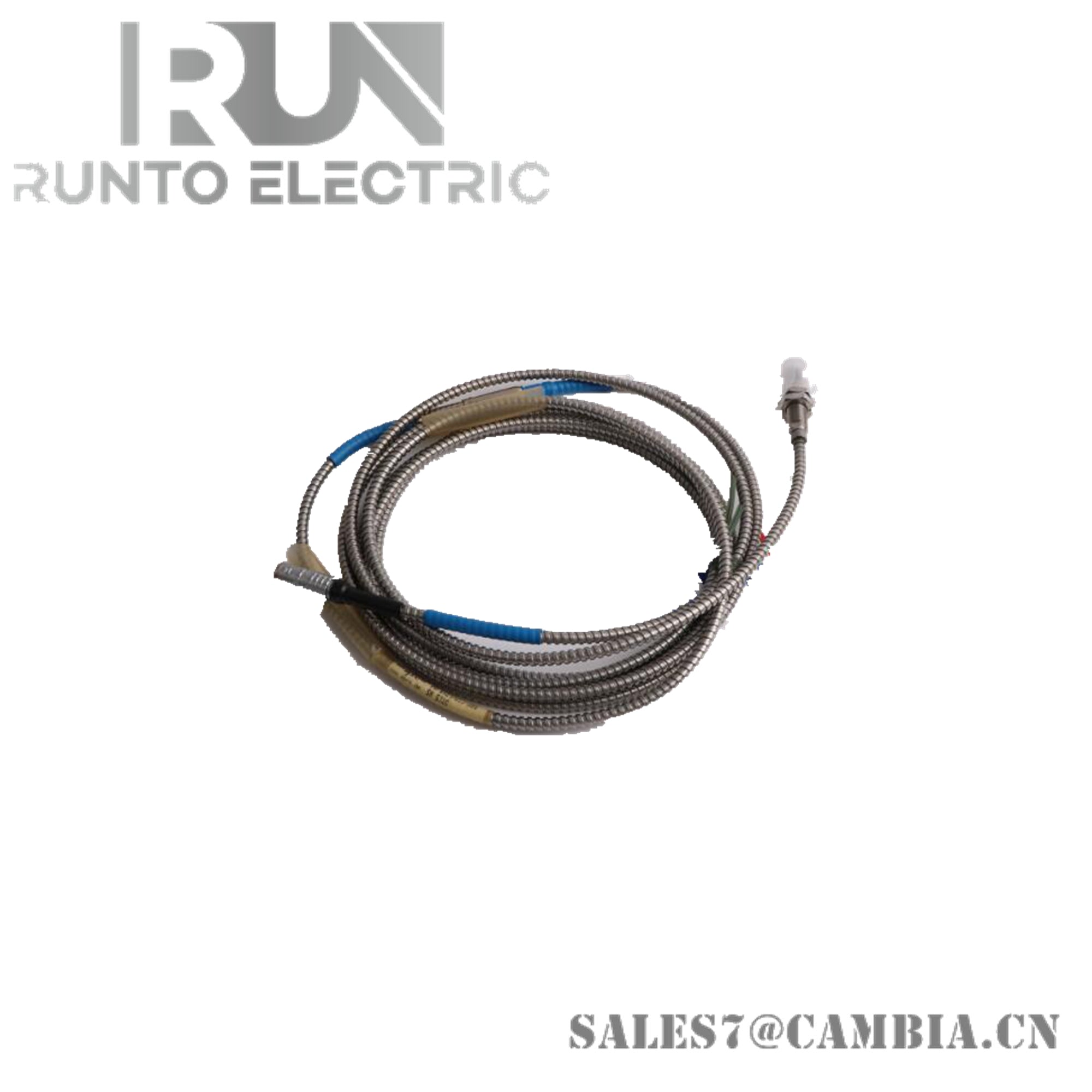

Emerson Epro PR6423/10R-131+CON031 Eddy Current Sensor

PR6423/10R-131

• Operating Principle: Measures the distance to a conductive target using the eddy current effect.
• Measurement Range: Linear measurement range of 2 mm, with an initial air gap of 0.5 mm.
• Accuracy: Incremental Scale Factor (ISF) of 8V/mm, with an accuracy of ±5% within the temperature range of 0 to 45°C.
• Stability: Deviation from Best Fit Straight Line (DSL) of ±0.025 mm within the temperature range of 0 to 45°C.

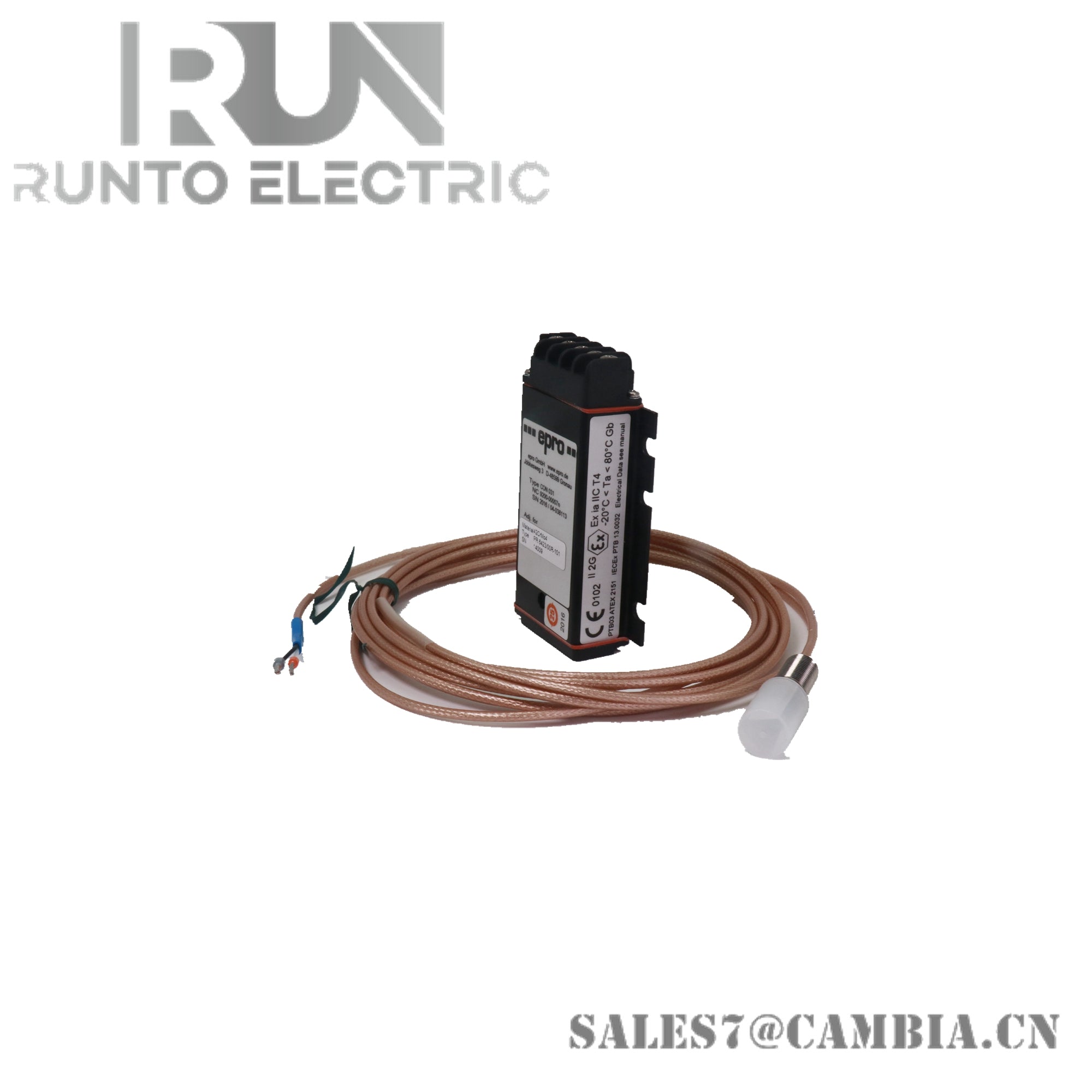

CON031

Function: Processes sensor signals for further use.

Purpose: Used in conjunction with the sensor to measure axial motion of shafts.

Features and Advantages

• Non-Contact Measurement: Measures without physical contact with the target, avoiding wear and contamination.
• High Accuracy: Provides high precision, suitable for precise measurement applications.
• Good Stability: Minimal temperature influence, ensuring reliable measurement results.
• Wide Application: Suitable for various industrial measurement scenarios, such as axial displacement measurement and vibration monitoring.

Applications

• Shaft Motion Measurement: Monitors axial displacement of rotating components such as motor shafts and pump shafts.
• Vibration Monitoring: Detects vibration levels in equipment for fault diagnosis and preventive maintenance.
• Thickness Measurement: Measures the thickness of thin plates and foils.
