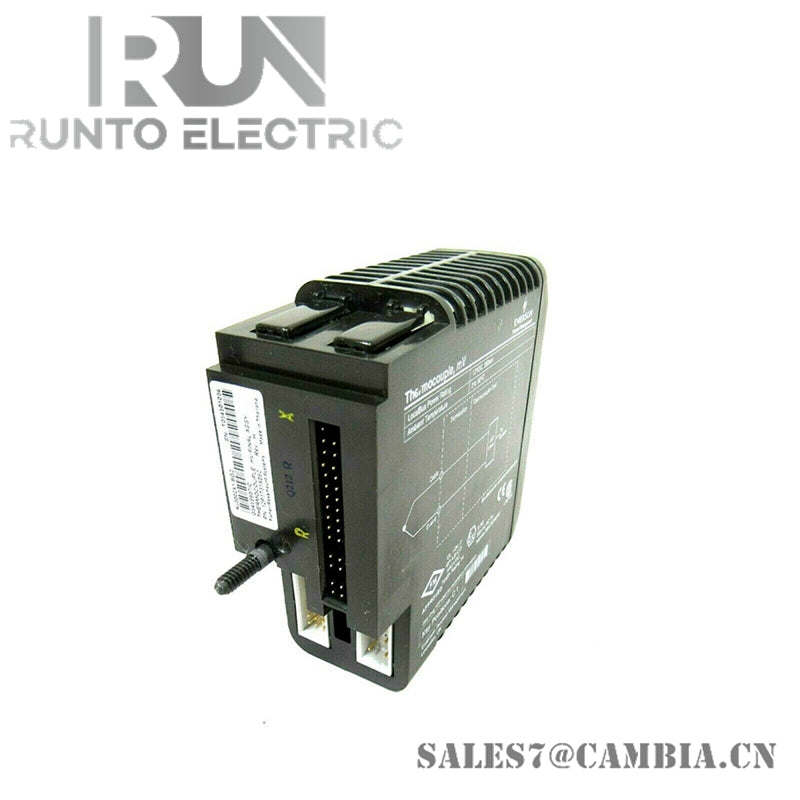

Emerson KC3010X1-BA2 16-Channel Analog Input Module

Description

The Emerson KC3010X1-BA2 is a high-performance 16-channel analog input module designed for the DeltaV S-Series system. It supports 4–20 mA signals with HART Plus communication, enabling precise data acquisition and advanced diagnostics in demanding industrial environments.

Specifications

• Model Number: KC3010X1-BA2
• Input Channels: 16 analog inputs
• Signal Type: 4–20 mA with HART Plus support
• Local Bus Power: 12 VDC at 150 mA
• Field Circuit Power: 24 VDC at 30 mA per channel
• Bussed Field Power: 24 VDC at 500 mA
• Operating Temperature: –40°C to +70°C
• Shock Resistance: 10 g half-sine wave for 11 ms
• Vibration Tolerance: 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz)
• Humidity Range: 5% to 95% non-condensing
• Contaminant Rating: ISA-S71.04 Class G3
• Dimensions: 4.3 cm × 12.6 cm × 16 cm
• Weight: Approx. 0.32 kg
• Certifications: CE, ATEX, IECEx, FM Class I Div 2

Features

• HART Plus Communication: Enables enhanced diagnostics and smart device integration
• Electrically Isolated Channels: Ensures high signal integrity and noise immunity
• Hot-Swappable Design: Allows safe replacement when field power is disconnected
• Rotary Keying System: Prevents incorrect module installation
• No Calibration Required: Reduces maintenance complexity
• Hazardous Area Compliance: Safe for use in Zone 2 and Class I Div 2 environments
• Rugged Build: Withstands harsh industrial conditions including vibration and airborne contaminants
