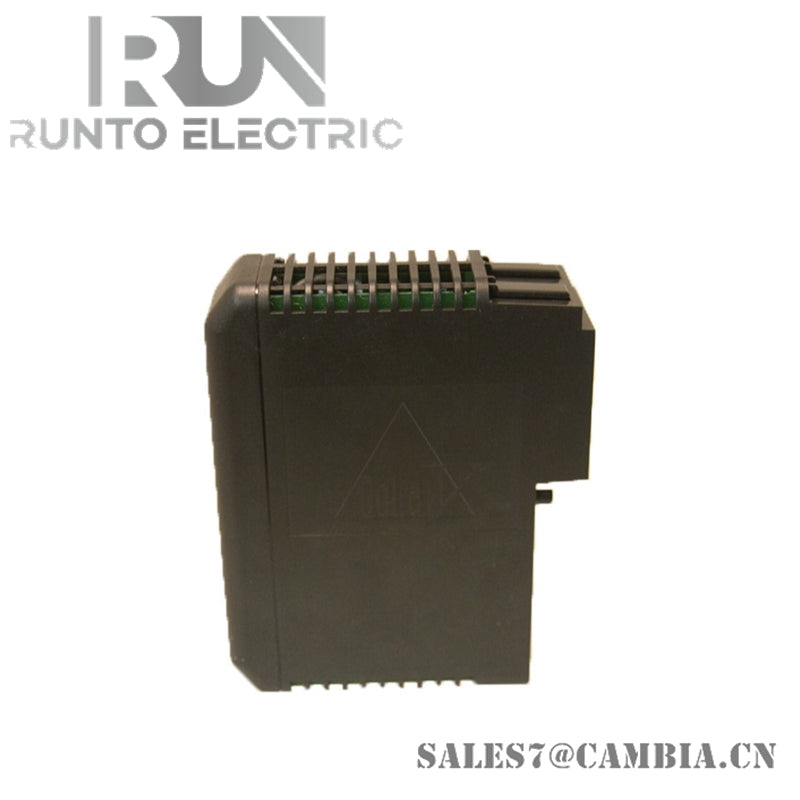

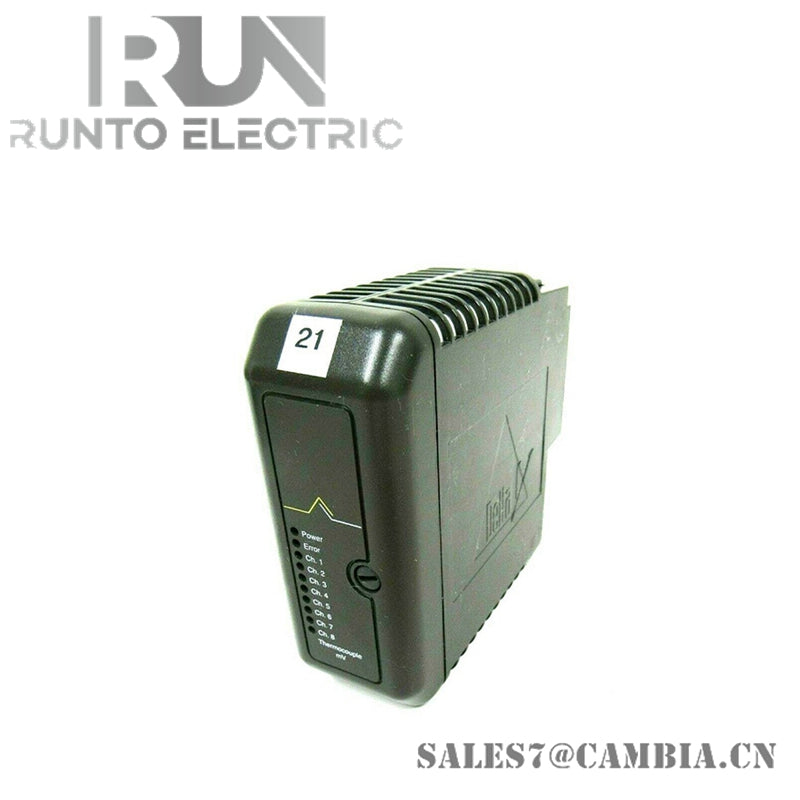

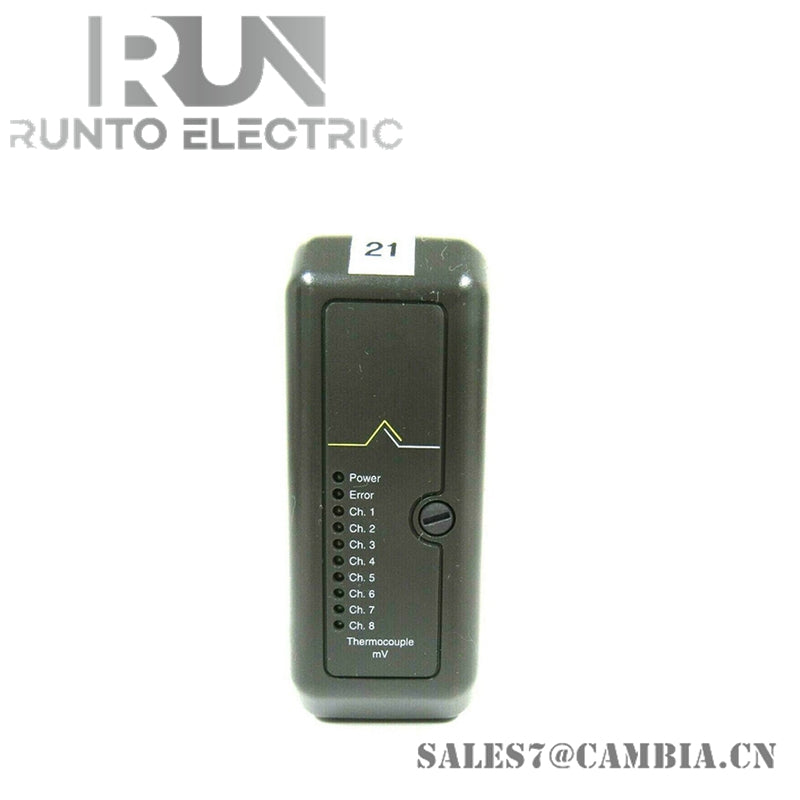

Emerson KJ3006X1-BA1 Multifunction I/O Module

Description

The Emerson KJ3006X1-BA1 is a multifunction I/O module designed for industrial automation systems such as DeltaV™ and Ovation™. It provides high-precision analog and digital signal processing, making it ideal for demanding control environments including hazardous areas.

Specifications

• Power Supply: +12 VDC (local bus), +24 VDC (field circuit)

• Analog Inputs: 4 channels, ±40V range, 16-bit resolution

• Analog Outputs: 2 channels, 0–10V range, 16-bit resolution

• Digital Inputs: 8 channels, single-ended

• Output Signal Types: 4–20 mA, 0–10V

• Communication Protocols: Modbus RTU/TCP, HART, PROFIBUS DP

• Operating Temperature: -40°C to +70°C

• Shock Resistance: 10g half-sine wave (11 ms)

• Vibration Resistance: 1 mm (2–13.2 Hz), 0.7g (13.2–150 Hz)

• Humidity Range: 5% to 95% non-condensing

Features

• High Channel Density: Supports multiple analog and digital I/O in a compact form

• Flexible Signal Handling: Configurable channels for various input/output types

• Built-in Counter & Timer: Enables event counting and time-based control

• Hazardous Area Compliance: Certified for use in explosive environments

• Fast Response: Real-time signal processing for precise control

• System Compatibility: Seamless integration with Emerson DCS platforms

• Diagnostic Capabilities: LED indicators and self-monitoring functions

• Robust Design: Withstands harsh industrial conditions
