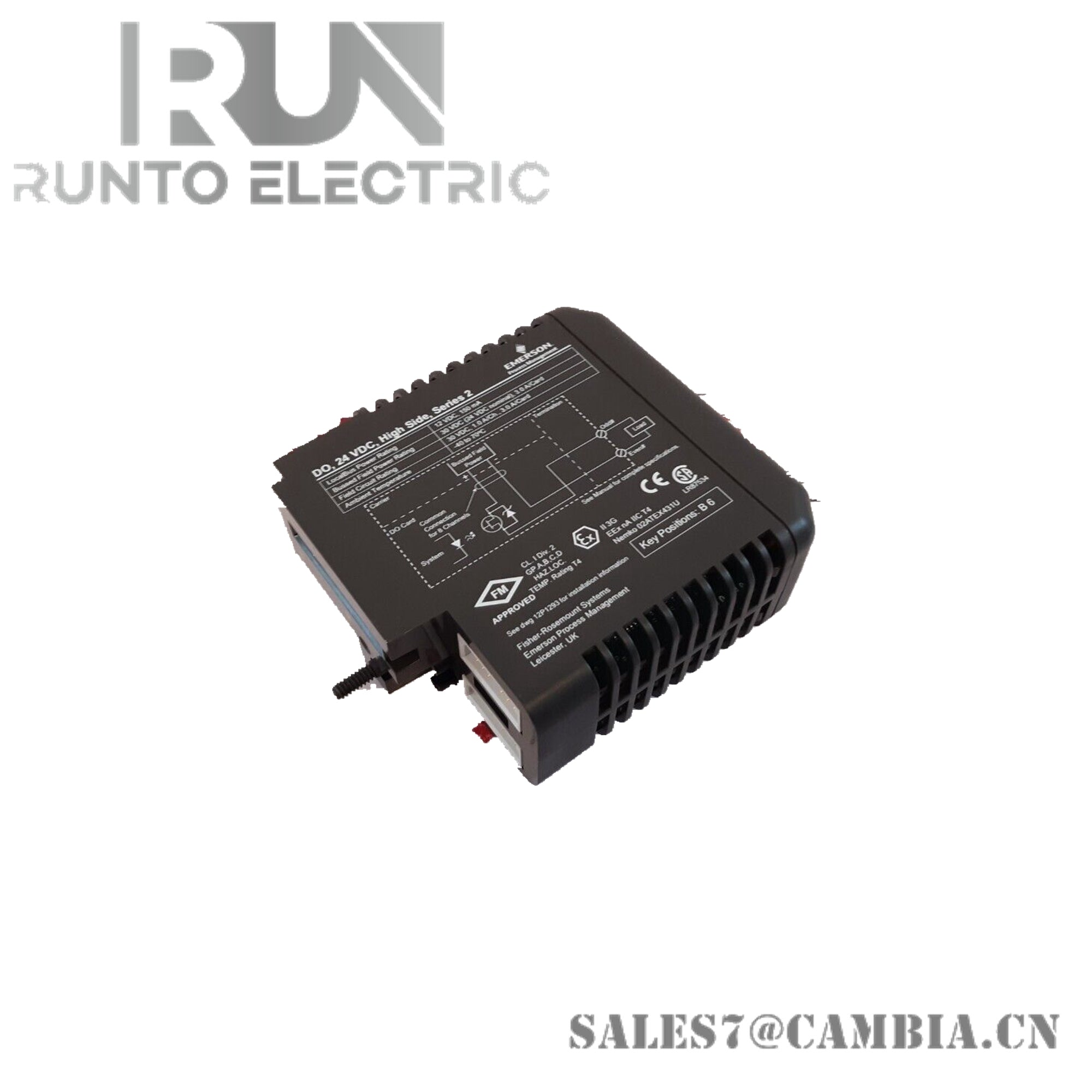

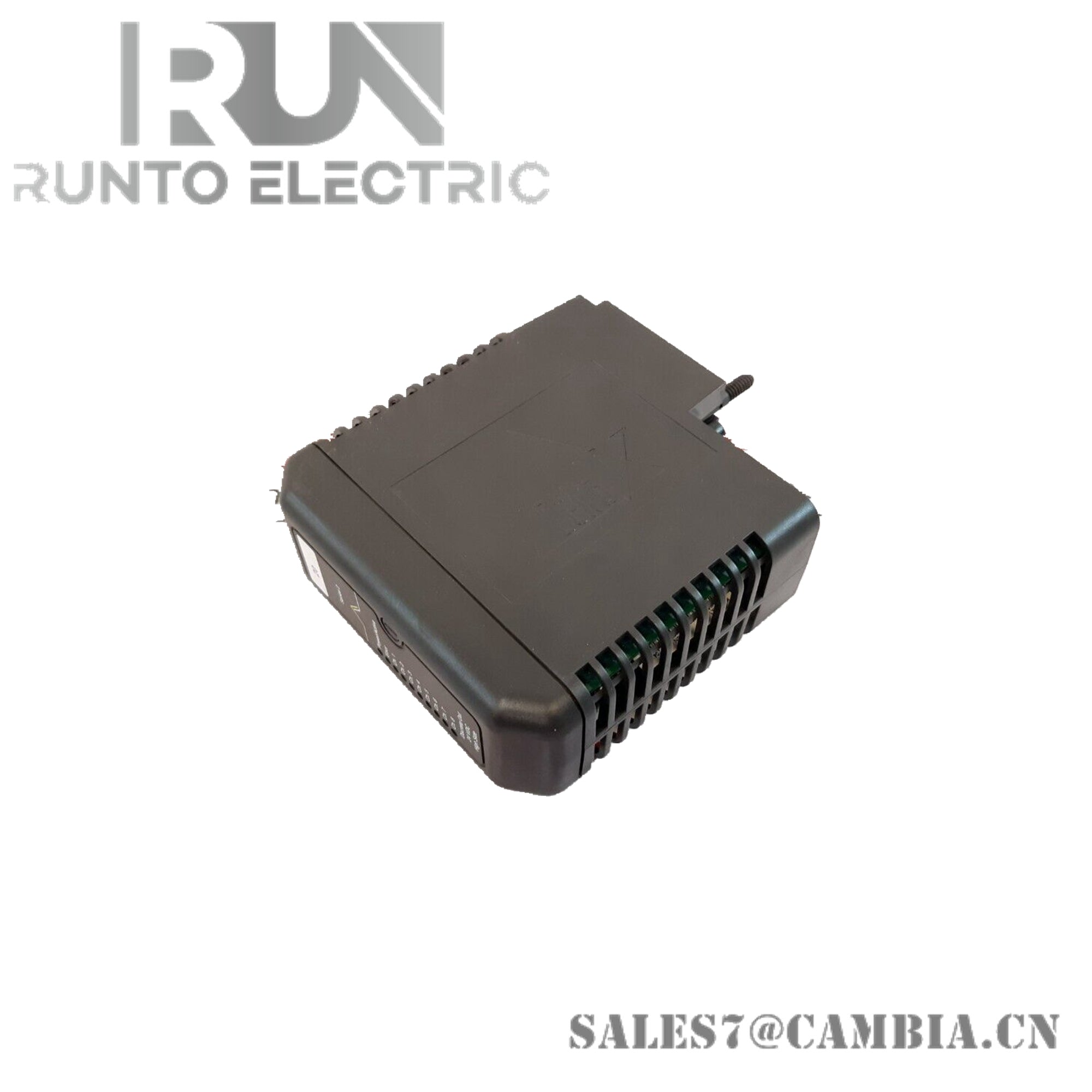

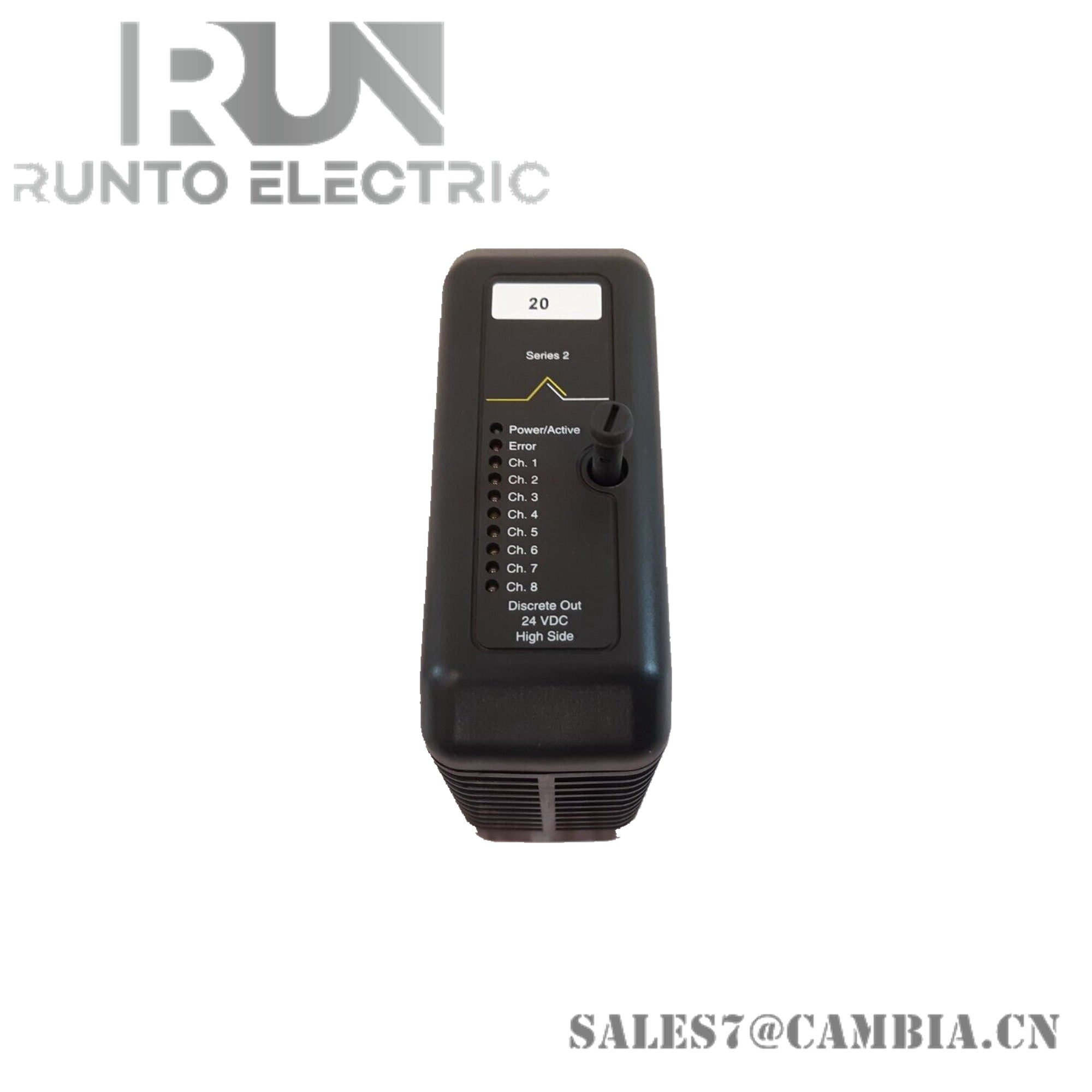

Emerson KJ3202X1-BA1 8-Channel high-side Digital Output Module

Description

Emerson KJ3202X1-BA1 is an 8-channel high-side digital output module designed for DeltaV distributed control systems. It provides reliable switching for field devices in demanding industrial environments.

Specifications

• Model Number: KJ3202X1-BA1
• Channels: 8 digital outputs
• Output Type: High-side switching
• Local Bus Power: 12 VDC at 150 mA
• Field Power Supply: 30 VDC at 3 A
• Field Circuit Output: 30 VDC at 1 A per channel, 3 A per card
• Operating Temperature: -40°C to +70°C
• Shock Resistance: 10g, ½ sinewave for 11 ms
• Vibration Resistance: 1 mm peak (2–13.2 Hz), 0.7g (13.2–150 Hz)
• Humidity Range: 5% to 95%, non-condensing
• Protection Class: IP20
• Dimensions: Approx. 100 mm × 50 mm × 30 mm
• Certifications: ATEX, IECEx, FM, CE

Features

• High-Side Switching: Ideal for controlling solenoids, relays, and contactors
• Robust Environmental Tolerance: Operates in extreme temperatures and vibration conditions
• Compact Design: Saves panel space and simplifies installation
• Rotary Keying System: Prevents mismatched terminal block connections
• Maintenance-Free: No calibration required; contains no user-serviceable parts
• Global Compliance: Certified for use in hazardous zones and industrial applications
