Description

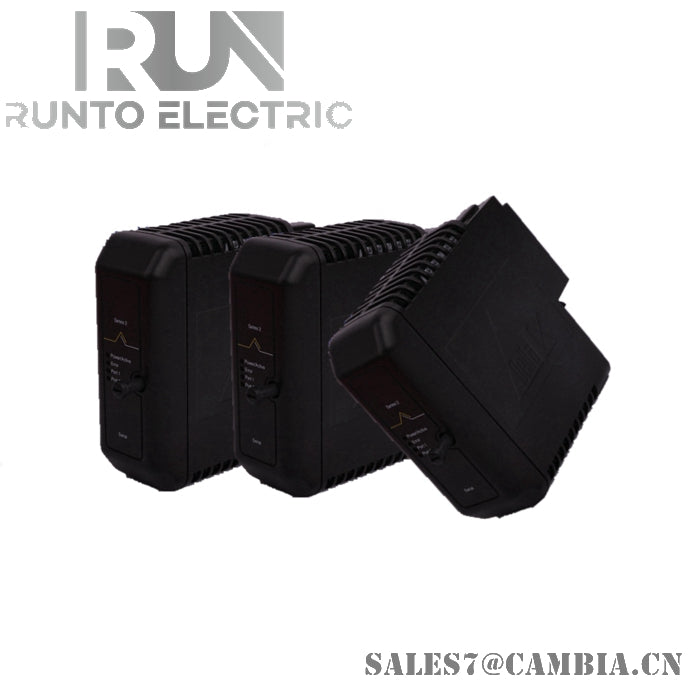

The Emerson KJ3202X1-BK1 is an 8-channel, 24 VDC High-Side Digital Output Card designed for DeltaV™ S-Series systems. It provides reliable discrete control in hazardous industrial environments, supporting high-side switching for solenoids, relays, and indicators.
Specifications
- Part Number: KJ3202X1-BK1
- Output Channels: 8 high-side digital outputs
- Output Voltage: 24 VDC
- Output Current: 1 A per channel, 3 A total per card
- Local Bus Power: 12 VDC at 150 mA
- Bussed Field Power: 30 VDC at 3 A
- Operating Temperature: -40°C to +70°C
- Shock Resistance: 10 g, ½ sinewave for 11 ms
-
Vibration Resistance:
- 1 mm peak-to-peak (2–13.2 Hz)
- 0.7 g (13.2–150 Hz)
- Humidity: 5% to 95% non-condensing
- Airborne Contaminants: ISA-S71.04 Class G3
- Mounting: DIN rail or carrier-based
- Certifications: ATEX, IECEx, FM, CSA (Zone 2/Class I Div 2)
-
Country of Origin: United States
Features
- Hazardous Area Certified: Safe for use in Zone 2/Class I Div 2 environments
- Rotary Keying System: Prevents incorrect module installation
- Hot-Swappable: Can be inserted or removed with system power on (under specific conditions)
- Diagnostic Capabilities: Includes output status monitoring and fault detection
- System Compatibility: Seamlessly integrates with DeltaV™ S-Series and AMS Suite
- Maintenance-Free: No calibration or user-serviceable parts required
