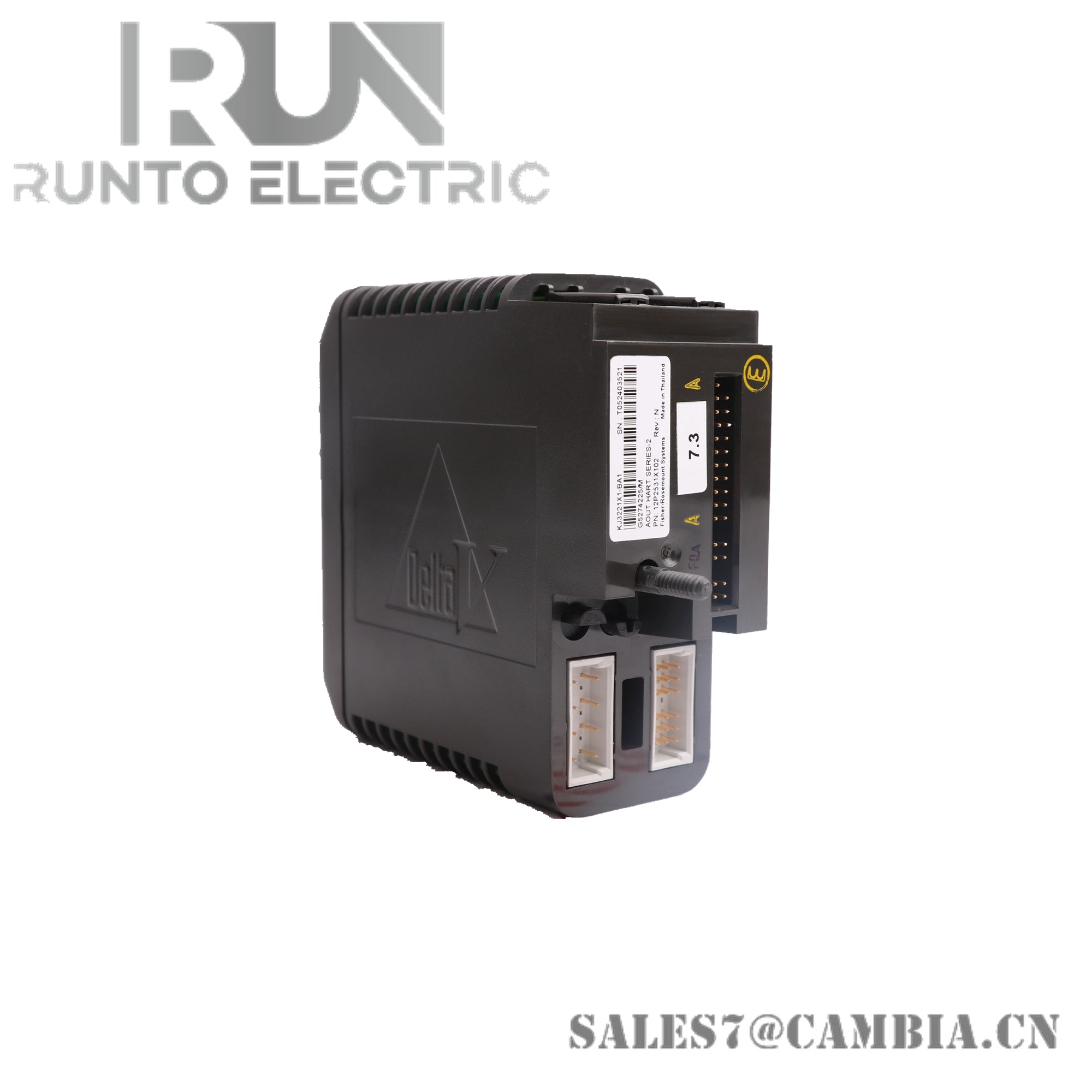

Emerson KJ3206X1-BK1 8-Channel 24 VDC Isolated Digital Input Module

Description

The Emerson KJ3206X1-BK1 is an S-Series 8-channel 24 VDC isolated digital input module designed for high-performance monitoring in industrial automation systems. It integrates seamlessly with the DeltaV™ DCS and is suitable for hazardous environments.

Specifications

• Model Number: KJ3206X1-BK1
• Input Channels: 8 isolated channels
• Input Voltage: 24 VDC
• Local Bus Power: 12 VDC at 100 mA
• Field Circuit Power: 24 VDC at 6 mA per channel
• Operating Temperature: -40°C to +70°C
• Shock Resistance: 10g ½ sinewave for 11 ms
• Vibration Tolerance: 1 mm peak-to-peak (2–13.2 Hz), 0.7g (13.2–150 Hz)
• Relative Humidity: 5% to 95% non-condensing
• Airborne Contaminants: ISA-S71.04 –1985 Class G3
• Terminal Block Key Position: B2

Features

• Hazardous Area Certified: Suitable for Zone 2 installations
• Signal Integrity: Isolated channels ensure reliable input monitoring
• System Compatibility: Designed for Emerson DeltaV™ systems
• Durability: Operates under extreme environmental conditions
• Maintenance-Free: No calibration or user serviceable parts required
• Safety Mechanism: Non-sparking field circuits must be de-energized before removal or insertion
