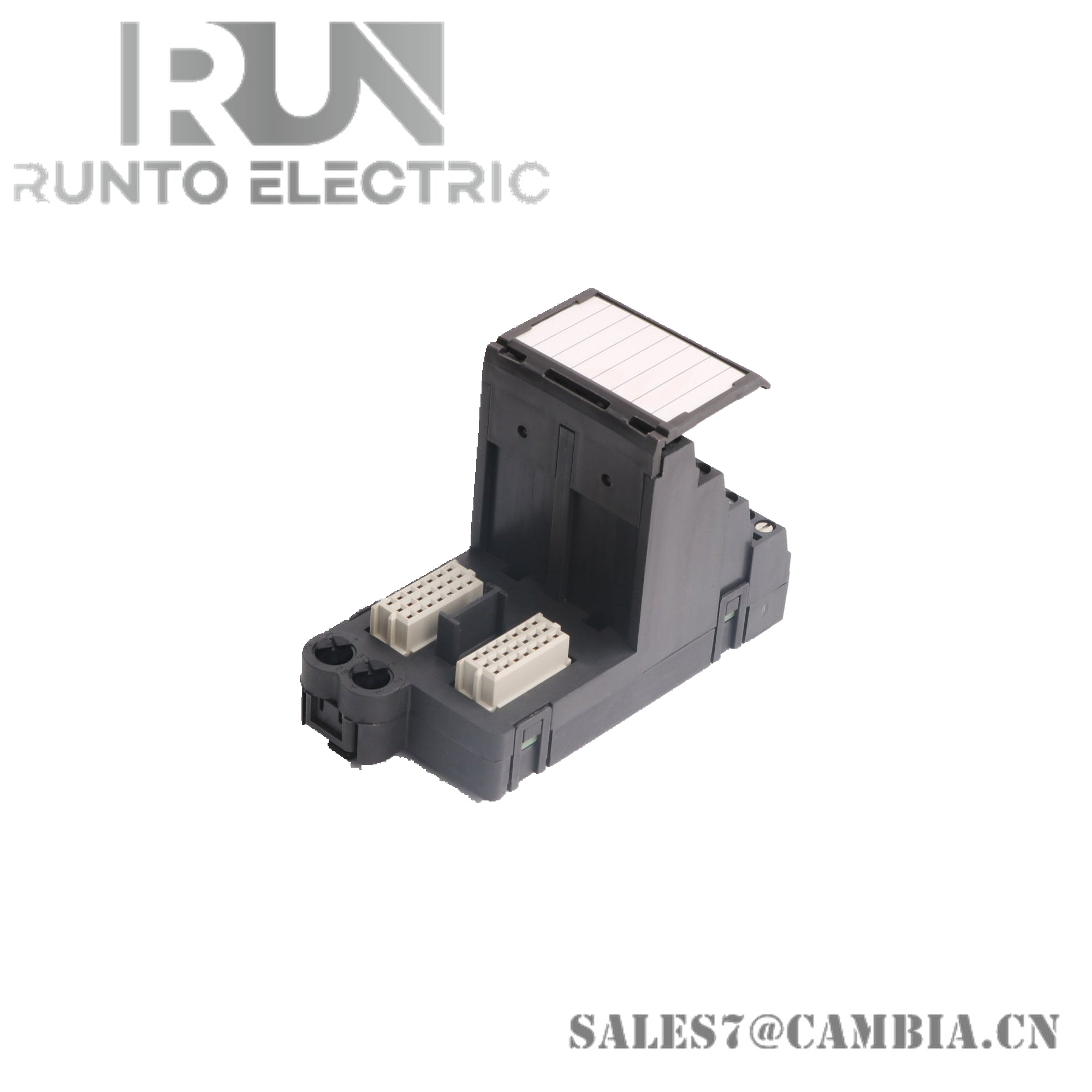

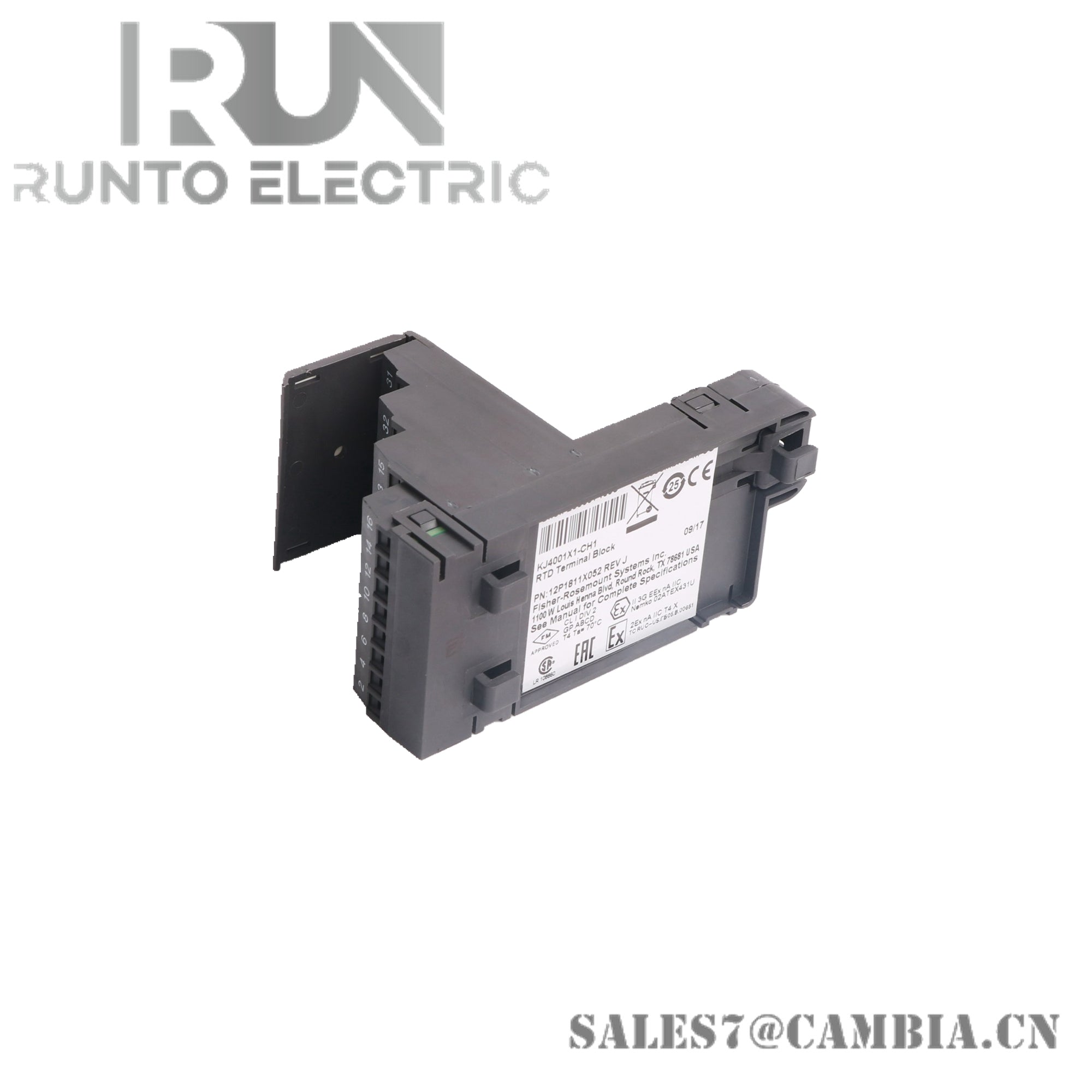

Emerson KJ4001X1-CH1 RTD Terminal Block

Description

The KJ4001X1-CH1 is a terminal block specifically designed for connecting RTD (Resistance Temperature Detector) sensors in industrial automation systems. It is particularly suited for use in hazardous atmospheres and harsh industrial environments.

Specifications

• Input Power Rating: 5 VDC @ 100mA
• Operating Temperature: -40°C to +70°C
• Shock Resistance: 10 g half-sine wave for 11 ms
• Vibration Resistance: 1 mm peak-to-peak (2 to 13.2 Hz); 0.7 g (13.2 to 150 Hz)
• Relative Humidity: 5 to 95%, non-condensing
• Airborne Contaminants: Class G3

Features

• Hazardous Area Certification: Certified for use in hazardous atmospheres, including ATEX, IECEx, and FM standards.
• High Precision: Delivers accurate and reliable temperature measurements.
• Easy Installation: Simplifies installation and removal processes.
• No Calibration Required: No user serviceable parts; operates maintenance-free.
• Robust Design: Engineered to perform reliably in challenging industrial conditions.
