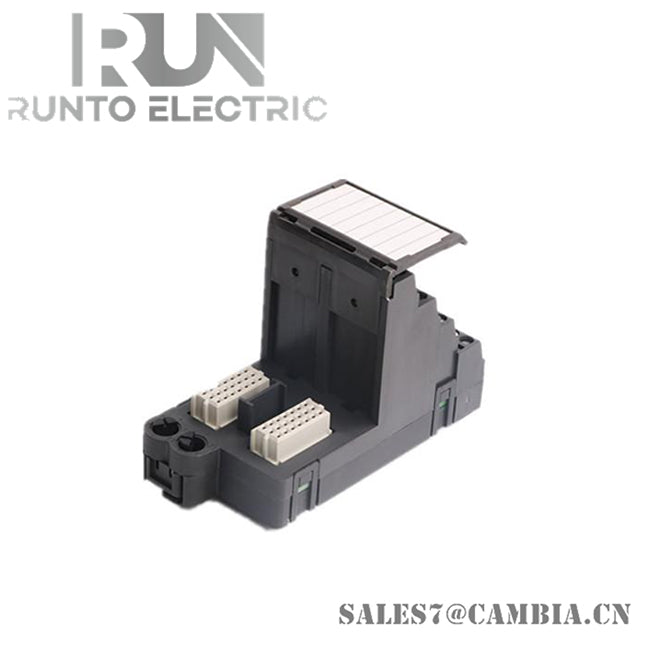

Emerson KJ4006X1-BB1 Terminal Block

Description

The Emerson KJ4006X1-BB1 is an 8-channel terminal block designed for secure field wiring and seamless integration with DeltaV S-series digital I/O cards. It ensures reliable signal transmission and meets stringent safety standards for hazardous area installations.

Specifications

• Manufacturer: Emerson Process Management
• Model Number: KJ4006X1-BB1
• Product Type: 8-Channel Terminal Block
• Compatible System: DeltaV S-series digital I/O
• Field Power (nL or ic installation): 30 VDC at 100 mA
• Field Power (ec installation): 60 VDC at 1.0 A
• Operating Temperature: -40°C to +70°C
• Shock Resistance: 10 g half-sine wave for 11 ms
• Vibration Resistance: 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz)
• Humidity Range: 5% to 95%, non-condensing
• Contaminant Tolerance: ISA-S71.04–1985 Class G3
• Hazardous Area Certifications: ATEX II 3G Ex ec IIC Gc, IECEx FMG 19.0019U, FM Class I Zone 2
• Terminal Block Keying: Rotary keyed for I/O card compatibility
• Maintenance: No user-serviceable parts; calibration not required
• Country of Origin: USA

Features

• Secure Field Wiring: Provides stable and safe connection for up to 8 channels
• Hazardous Area Ready: Certified for Zone 2 installations with multiple global approvals
• Environmental Resilience: Operates reliably under extreme temperature, shock, and vibration conditions
• Plug-and-Play Integration: Designed for seamless use with DeltaV S-series I/O cards
• Rotary Keying System: Prevents mismatched installation and ensures module compatibility
• Safe Installation Protocol: Can be removed or inserted with system power applied only when no I/O card or field wiring is connected
• Maintenance-Free Design: No calibration or disassembly required
