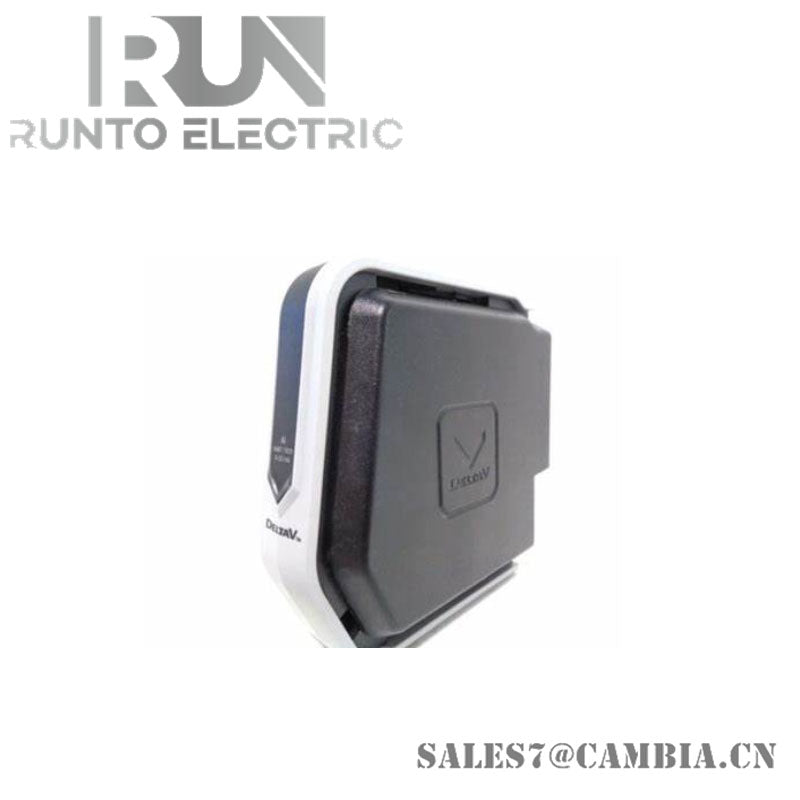

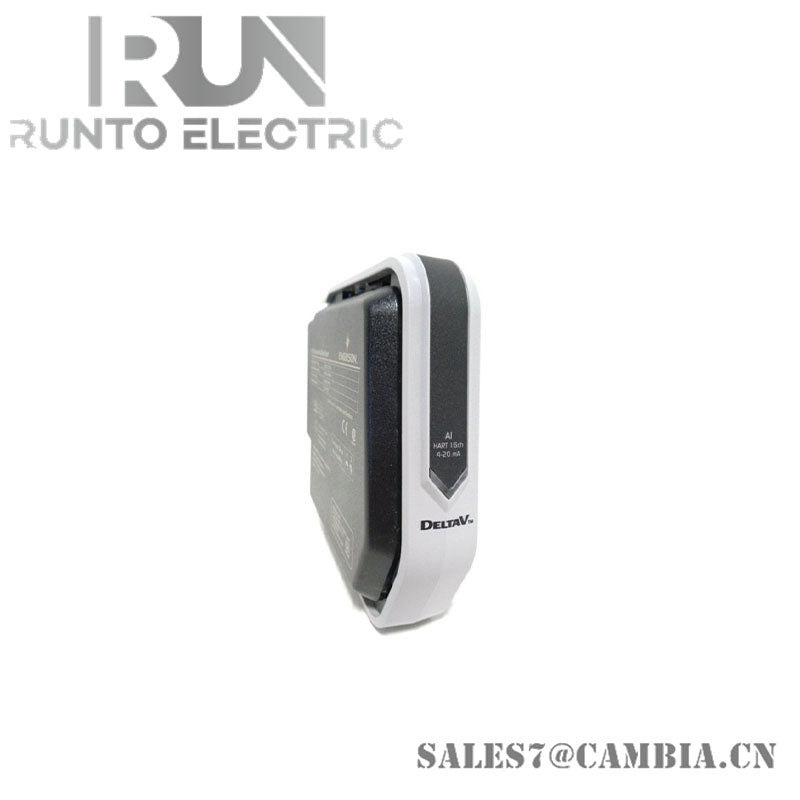

Emerson KL2101X1-BB1 CHARM I/O Card

Description

The Emerson KL2101X1-BB1 is a CHARM I/O Card designed for the DeltaV™ digital automation system. It provides signal conditioning and electrical isolation between field devices and the control network, making it ideal for hazardous industrial environments.

Specifications

• Input Power: 24 VDC at 2 A max
• Output Power: 6.3 VDC at 3.25 A
• Operating Temperature: -40°C to +70°C
• Humidity Range: 5% to 95% non-condensing
• Shock Resistance: 10 g half-sine wave for 11 ms
• Vibration Tolerance: 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)
• Dimensions: 4.7″ x 3.5″ x 1.8″
• Weight: 0.25 lbs
• Certifications: CE, FCC, ATEX, IECEx, FM
• Warranty: 1 year

Features

• Universal I/O Support: Handles both analog and digital signals across various field devices
• Hazardous Area Certified: Approved for use in Zone 2 and Class I Div. 2 environments
• Compact Form Factor: Saves space in control cabinets
• Robust Construction: Engineered for durability in harsh industrial conditions
• Electrical Isolation: Ensures safe and stable signal transmission
• No Calibration Required: Simplifies maintenance and setup
• DeltaV Integration: Seamlessly connects with Emerson’s distributed control system for scalable automation
