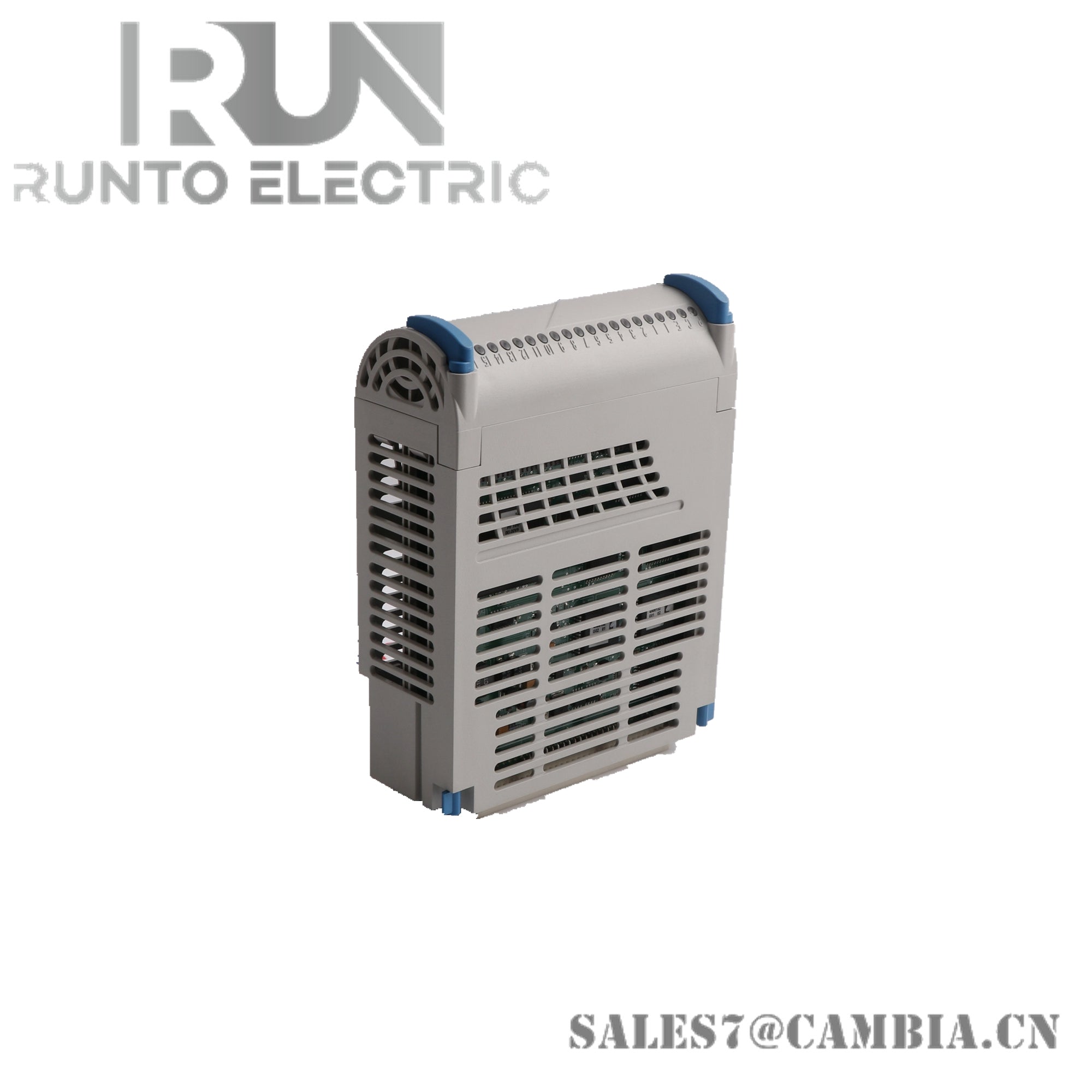

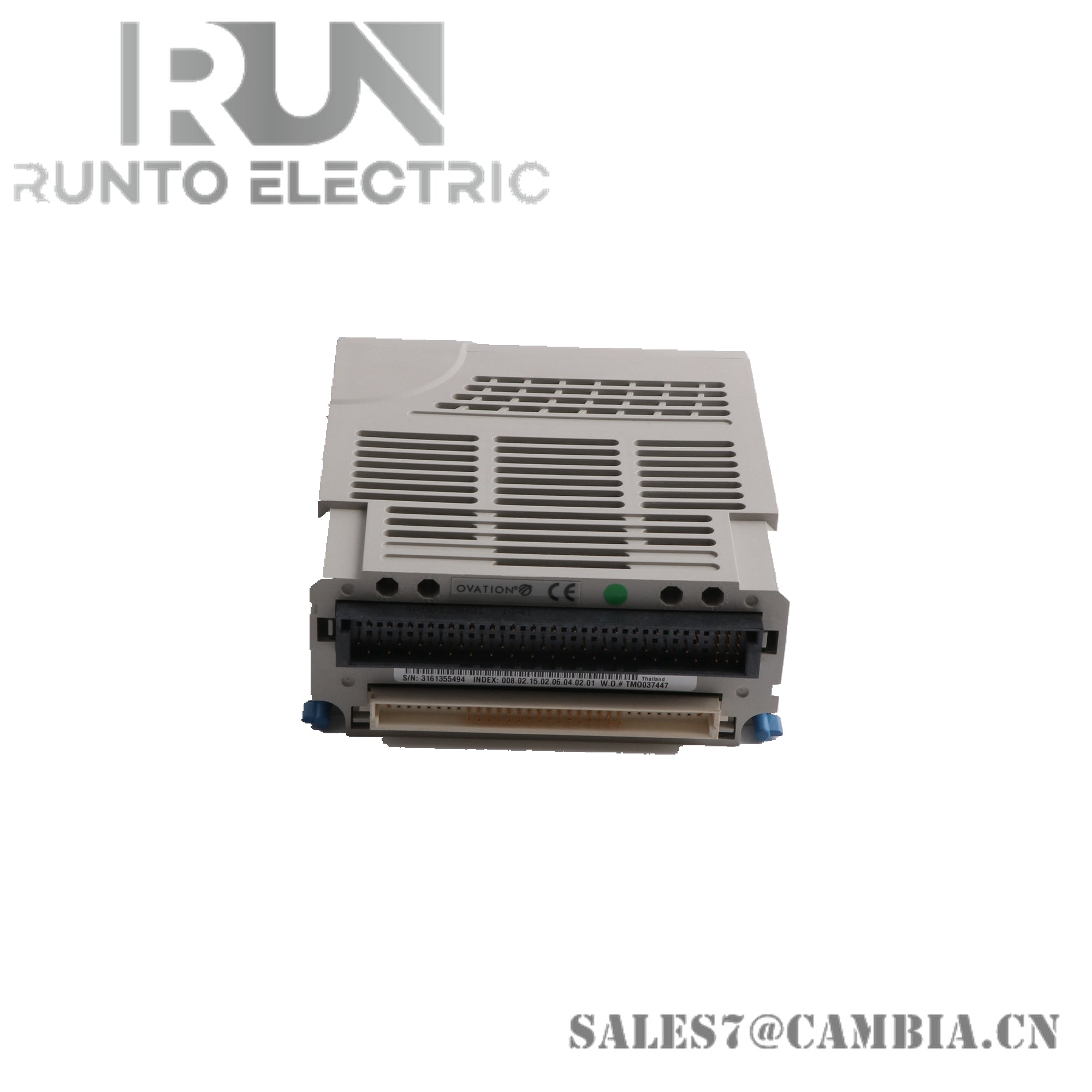

Emerson Ovation 1B30023H01 I/O Bus Terminator Module

Description

The Emerson Ovation 1B30023H01 is a high-performance I/O Bus Terminator Module designed for Ovation control systems. It ensures proper termination of the I/O communication bus, preventing signal reflections and maintaining stable data transmission in industrial environments.

Specifications

• Model: 1B30023H01
• Product Type: I/O Bus Terminator Module
• Termination Impedance: 120 Ω
• Reference Voltage: 5.0 VDC
• Power Consumption: 100 mA
• Power Supply Requirement: +24 VDC
• Mounting Type: DIN-rail
• Dimensions: 100 mm × 50 mm × 25 mm
• Weight: 0.2 kg
• Installation Location: End of I/O branch (A or B side)
• System Compatibility: Emerson Ovation I/O bases
• Warranty: 12 months
• Country of Origin: USA

Features

• Signal Termination: Prevents bus signal reflections for reliable communication
• Voltage Stabilization: Provides consistent reference voltage across the I/O bus
• Energy Absorption: Protects connected devices from excess electrical energy
• LED Indicators: Displays power and bus status for quick diagnostics
• Compact Design: Fits easily into tight control cabinet spaces
• Industrial Durability: Built for harsh environments with rugged construction
• Flexible Installation: Supports both A and B sides of standard Ovation I/O bases
