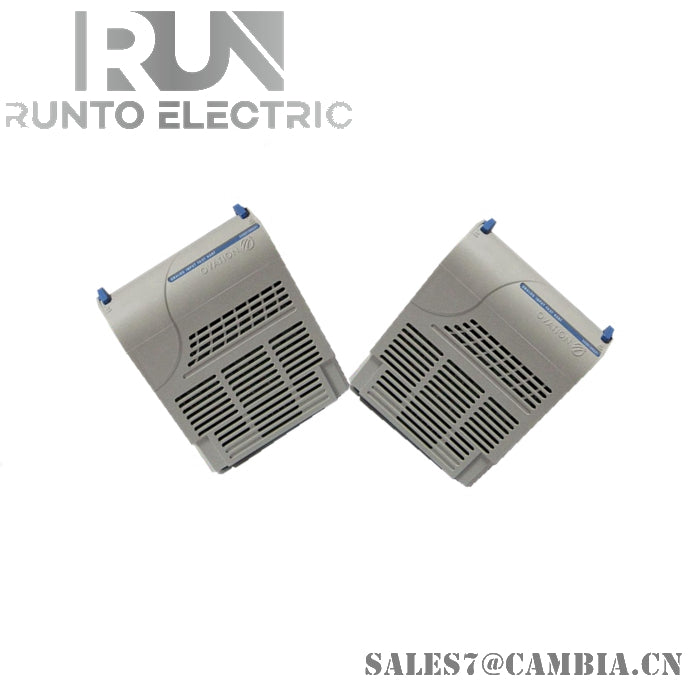

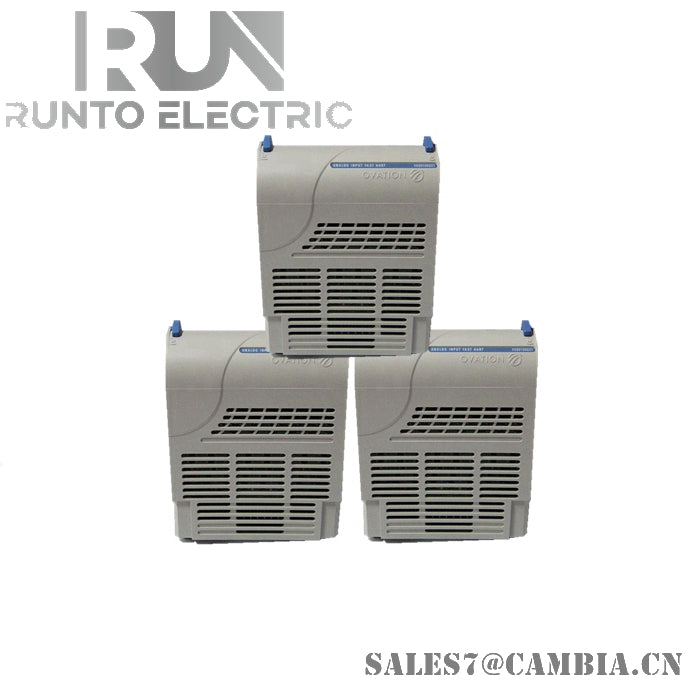

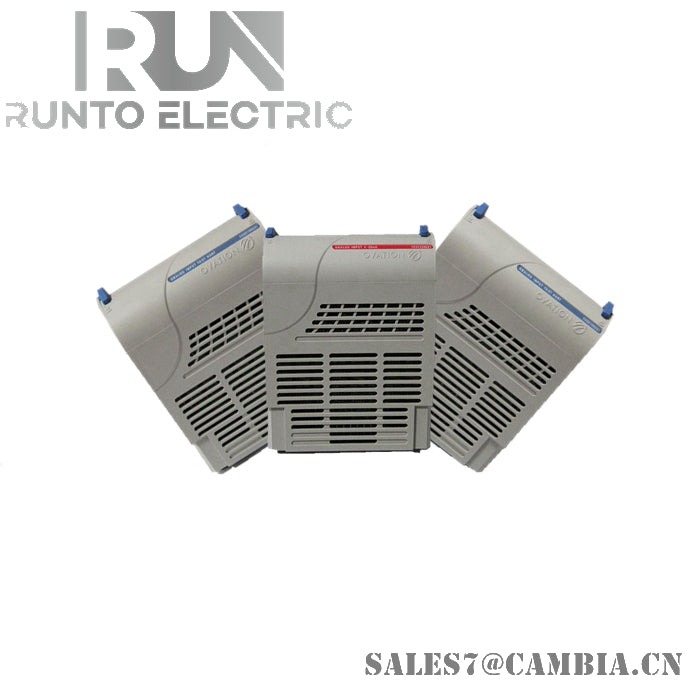

Emerson Ovation 1C31194G01 Valve Positioner Electronics Module

Description

The 1C31194G01 module is engineered to provide precise positioning of pneumatic valves in industrial automation systems. It converts electrical signals into proportional pneumatic outputs, ensuring accurate valve control for various applications.

Specifications

• Signal Input: 4-20 mA DC
• Signal Output: Pneumatic (proportional to input signal)
• Supply Pressure: 35 to 150 psi (2.4 to 10.3 bar)
• Output Pressure Range: 0 to supply pressure
• Accuracy: ±0.5% of full scale
• Communication Protocol: I/A Series backplane bus
• Protection Class: IP20
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Storage Temperature: -55°C to +85°C (-67°F to +185°F)
• Dimensions: 216 mm x 330 mm x 133 mm
• Weight: 6.8 kg

Features

• Precise Valve Positioning: Ensures accurate and repeatable control of flow rates, pressure, and other process variables.
• Proportional Response: Generates pneumatic output signals proportional to the input signal for smooth valve movement.
• Fast Response Time: Quickly reacts to changes in input signals for timely valve adjustments.
• Rugged Construction: Designed to withstand harsh industrial environments.
