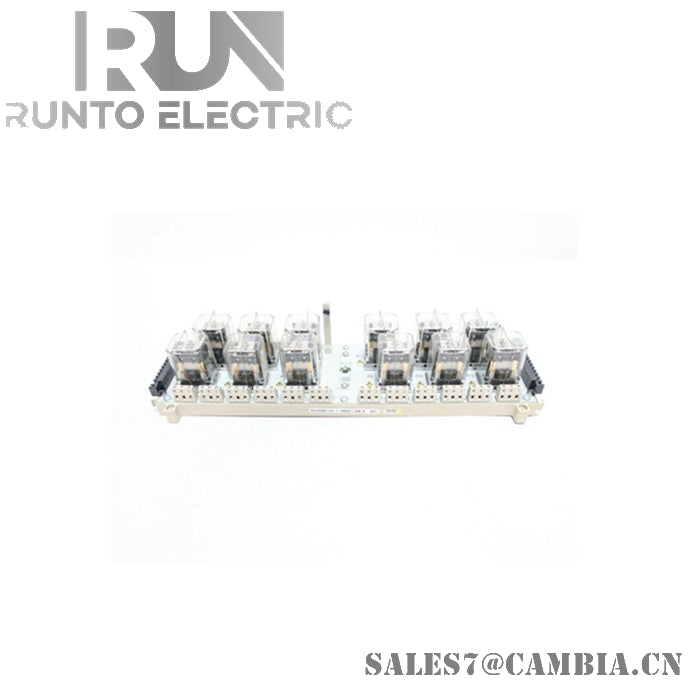

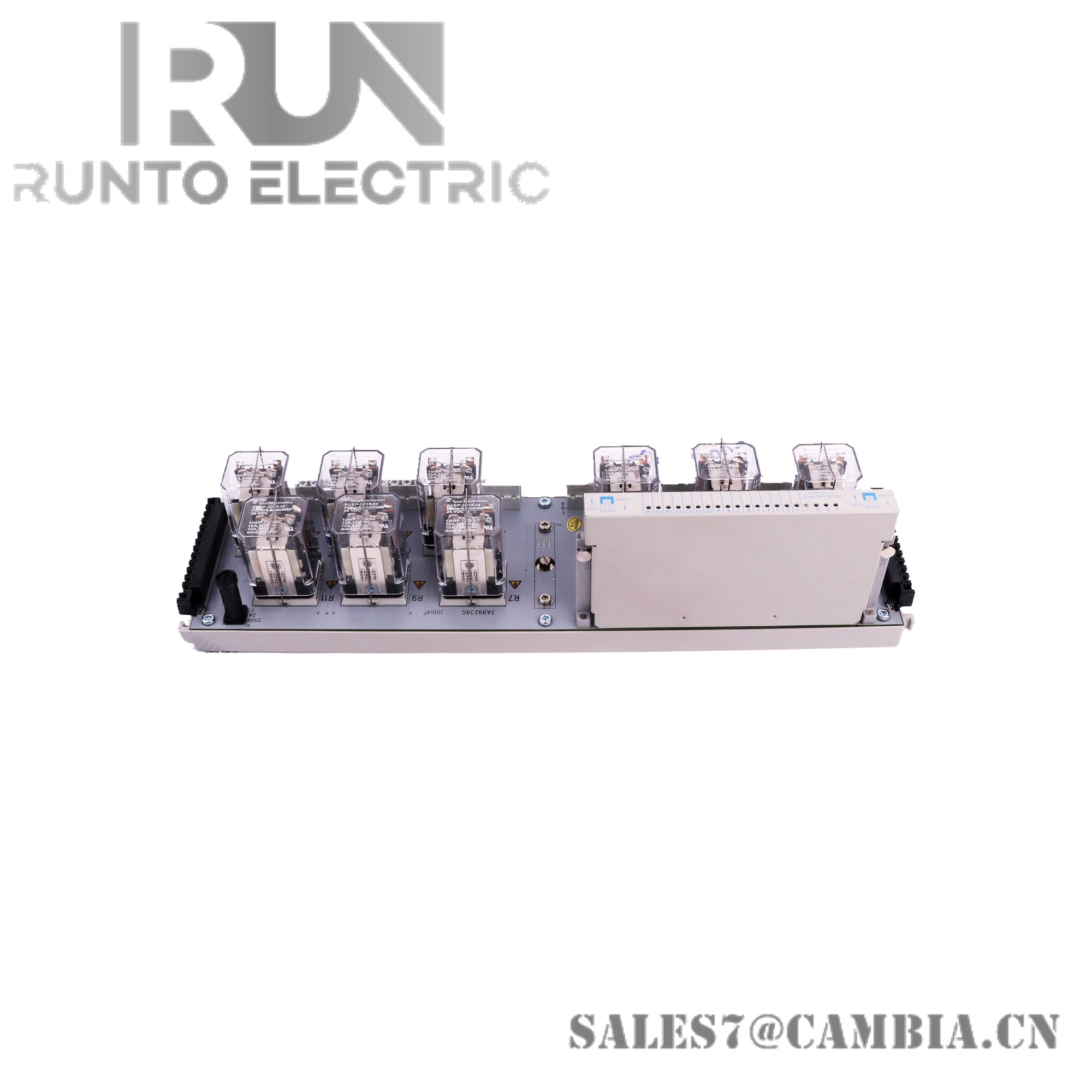

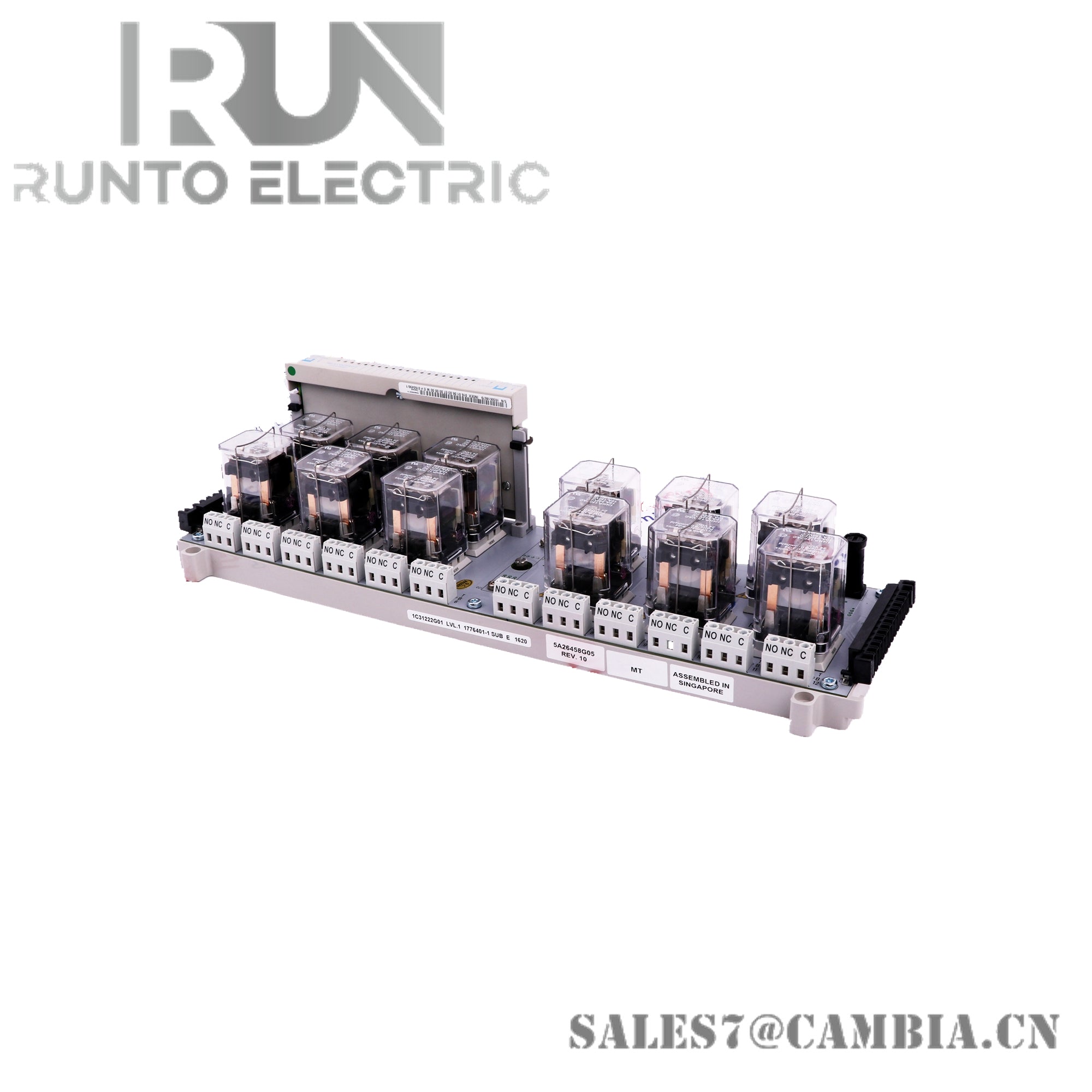

Emerson Ovation 1C31222G01 Relay Output Base Module

Description

The Emerson Ovation 1C31222G01 is a high-power relay output base module designed for use within the Ovation Distributed Control System (DCS). Engineered for rugged industrial environments, it provides reliable relay control for actuators, motors, and other high-current devices in power and process automation systems.

Specifications

• Model Number: 1C31222G01
• Type: Relay Output Base Module
• System Compatibility: Emerson Ovation and Westinghouse PLC systems
• Number of Channels: 16 relay outputs
• Output Rating: 250 VAC, 30 A per channel
• Contact Material: Silver cadmium oxide for enhanced durability
• Rated Voltage: Supports industrial-grade voltage systems
• Current Capacity: Handles high relay loads across all channels
• Operating Temperature: –40°C to +70°C
• Storage Temperature: –55°C to +85°C
• Humidity Range: 0 to 95% RH, non-condensing
• Protection Class: IP20
• Dimensions: 42.4 × 12.6 × 10.8 cm
• Weight: Approximately 0.8 kg

Features

• High-Power Switching: Converts low-voltage digital signals into high-current control commands
• Industrial Durability: Built to withstand extreme temperatures, vibration, and shock
• Flexible Integration: Seamlessly connects with Ovation and Westinghouse control platforms
• Reliable Performance: Ensures consistent operation in mission-critical applications
• Compact Design: Space-efficient module suitable for dense control cabinets
• Long-Term Stability: Designed for continuous operation with minimal maintenance
• Global Compliance: Meets international safety and environmental standards
