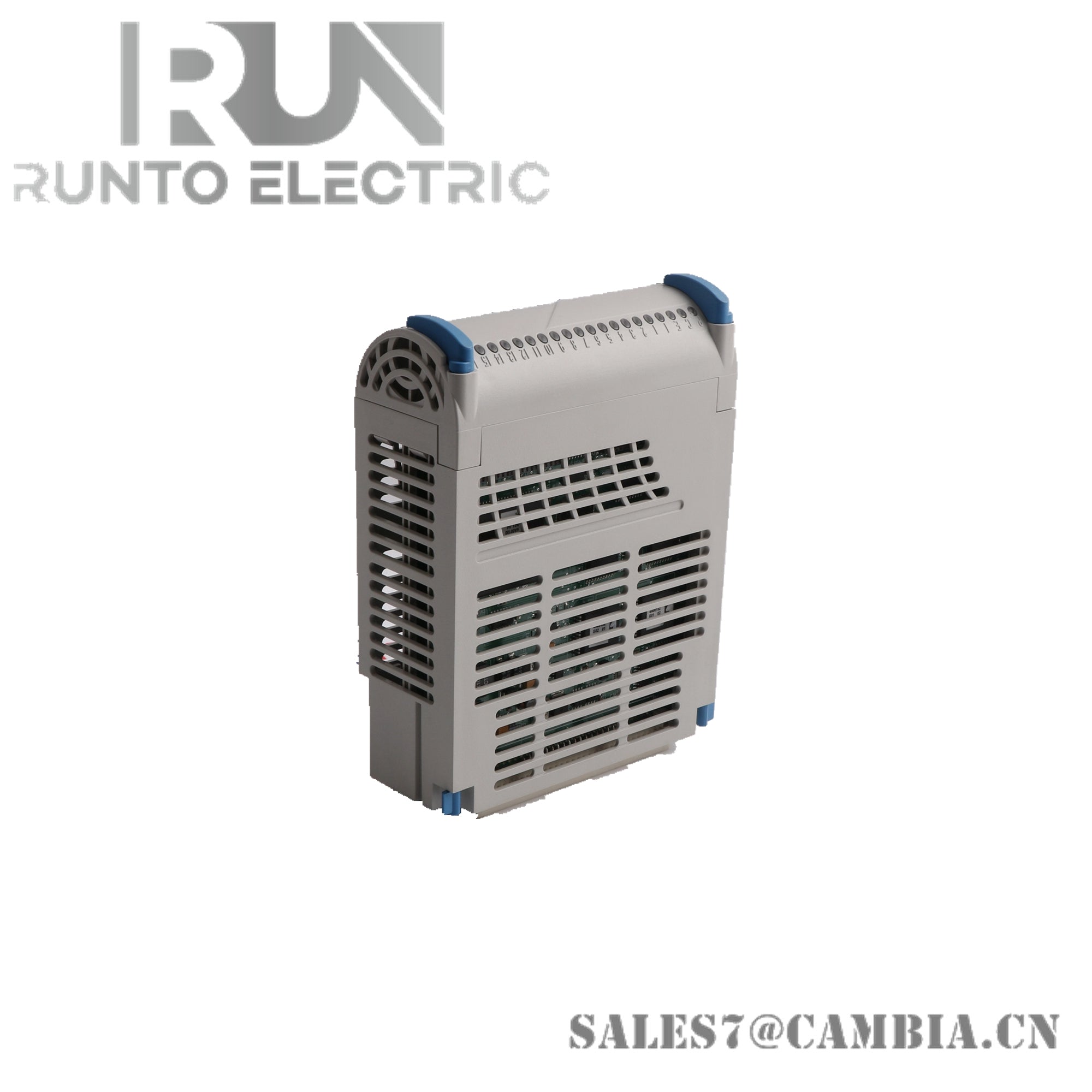

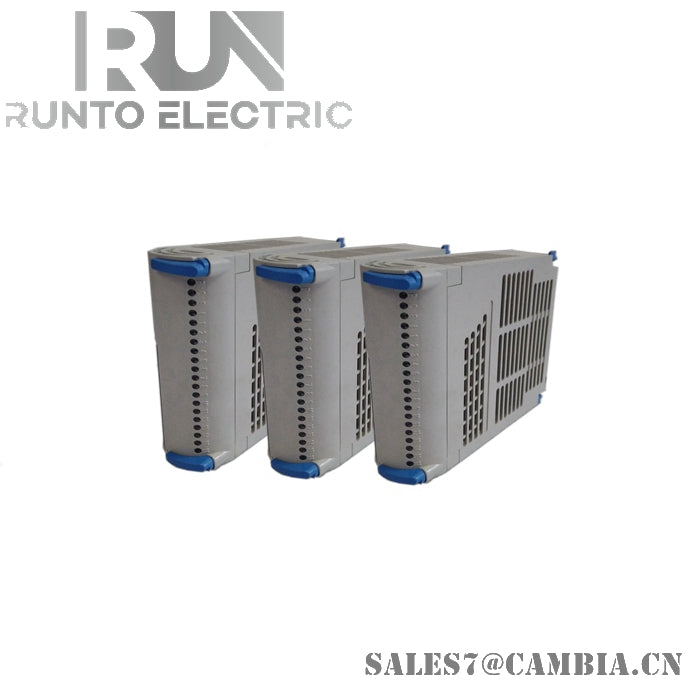

Emerson Ovation 5X00357G05 Analog Input Module

Description

The Emerson Ovation 5X00357G05 is a 16-channel enhanced events input module designed for high-speed signal acquisition in Ovation control systems. It supports differential 24 V inputs and wire break detection, making it ideal for demanding automation environments.

Specifications

• Model: 5X00357G05
• System: Emerson Ovation™
• Input Type: 24 V differential
• Channels: 16 individually isolated inputs
• Wire Break Detection: Integrated
• Filtering: Configurable per channel
• Diagnostics: Built-in status monitoring
• Operating Temperature: -40°C to +70°C
• Humidity: 0% to 95% RH (non-condensing)
• Shock Resistance: 15 g, 20 ms half-sine
• Vibration Resistance: 0.05 g RMS, 5–500 Hz
• Mounting: DIN rail
• Dimensions: 178 mm × 90 mm × 100 mm
• Weight: Approx. 0.5 kg
