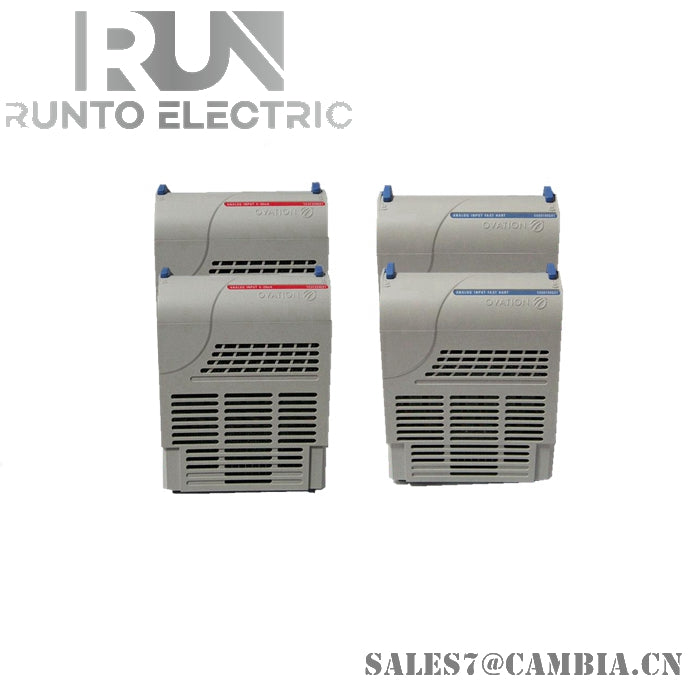

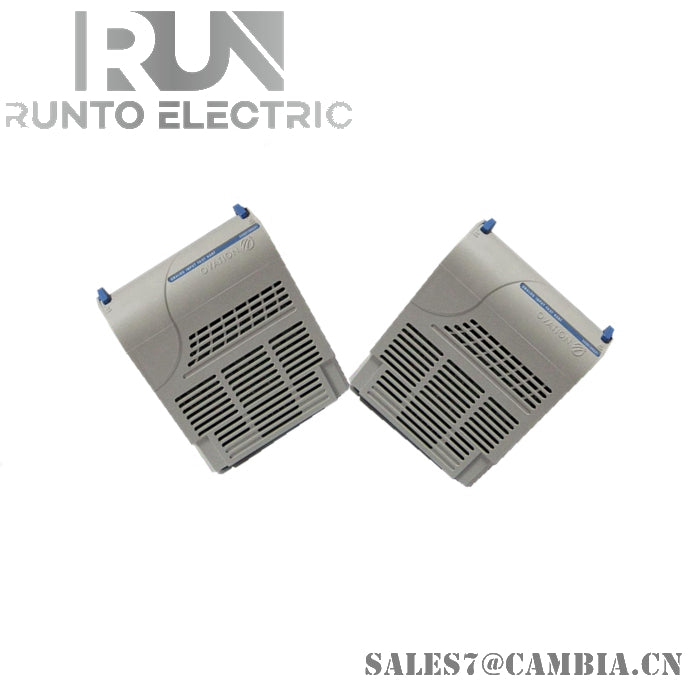

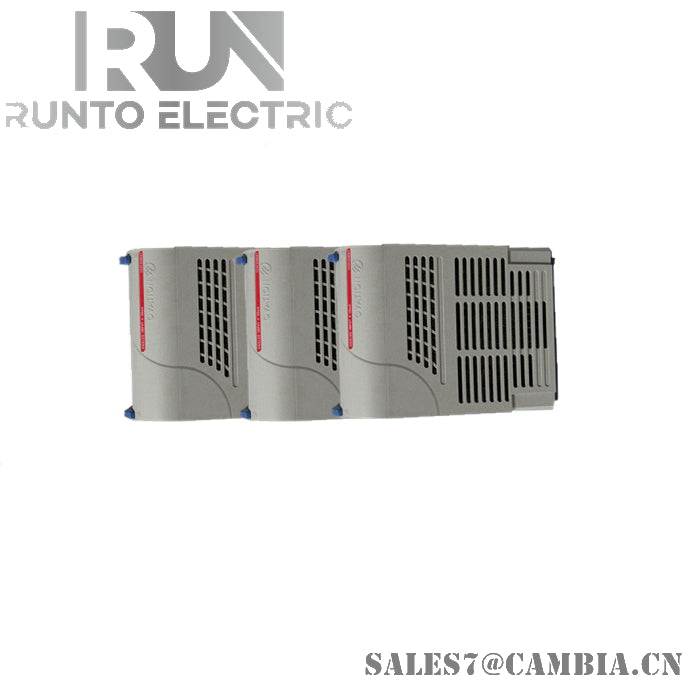

Emerson Ovation 5X00489G01 Power Distribution Module

Description

The Emerson Ovation 5X00489G01 is a Power Distribution Module engineered for Ovation Distributed Control Systems (DCS). It delivers stable, redundant 24 VDC power to controllers, I/O modules, and field devices, ensuring continuous operation in critical industrial environments such as power generation and process automation.

Specifications

• Model: 5X00489G01
• System Compatibility: Emerson Ovation DCS
• Input Voltage Range:
  • AC: 85–264 VAC (nominal 100–240 VAC)
  • DC: 90–375 VDC
• Frequency: 43–67 Hz
• Power Factor Correction: >0.92 (active)
• Output Voltage:
  • Dual 24 VDC outputs (adjustable 23.5–28.5 VDC)
  • Initial setting: 24.5 V ±1%
• Output Current:10 A (240 W) or 20 A (480 W) per channel depending on configuration
• Ripple:
  • <50 mVpp (10 A module)
  • <100 mVpp (20 A module)
• Hold-Up Time: >20 ms
• Efficiency: >90%
• Cooling: Passive (fanless design)
• Mounting: DIN-rail or backplate with pre-mounted rails
• Dimensions: Approx. 250 mm × 150 mm × 40 mm
• Weight: ~0.7 kg
• Warranty: 12 months


Features

• Redundant Power Feeds: Supports separate main and auxiliary supplies for high availability
• Diode Auctioneered Outputs: Ensures uninterrupted power delivery to Ovation controllers and I/O
• Hot-Swappable Design: Enables online replacement with minimal downtime
• Fanless Architecture: Reduces failure risk and extends equipment lifespan
• Modular Scalability: Available in 10 A and 20 A configurations for flexible deployment
• Industrial Reliability: Operates in harsh environments with wide temperature tolerance
• Quick Installation: Pre-mounted DIN-rails and terminal strips simplify setup
• Global Deployment: Trusted in power plants, water treatment, and critical infrastructure
