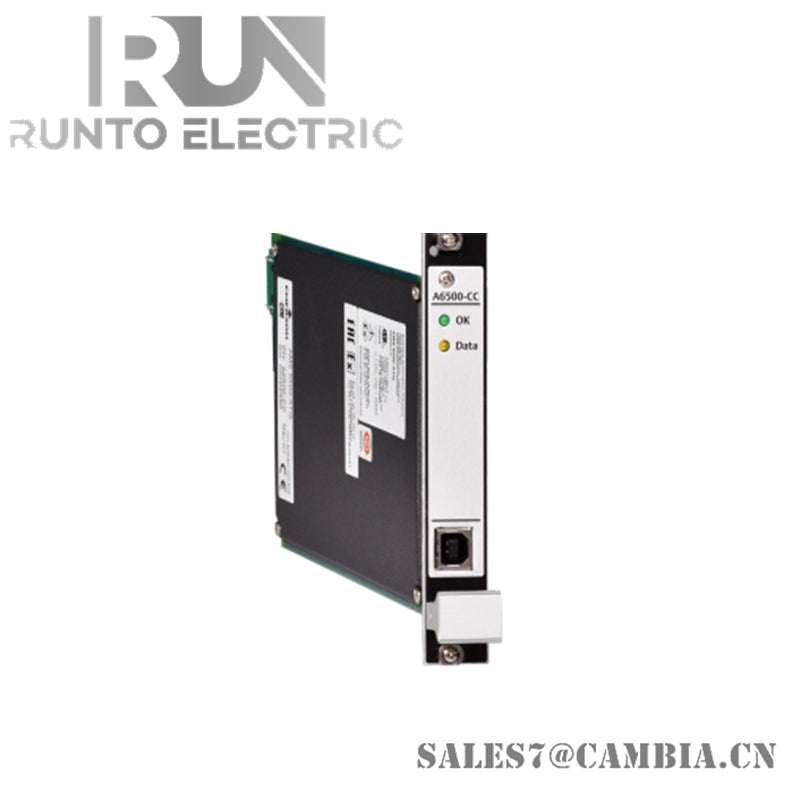

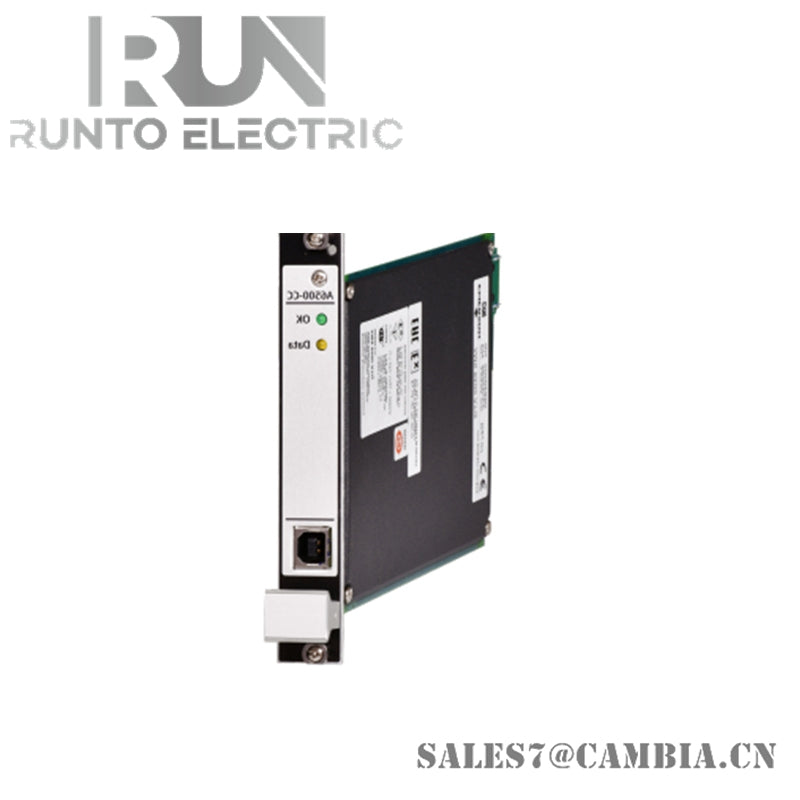

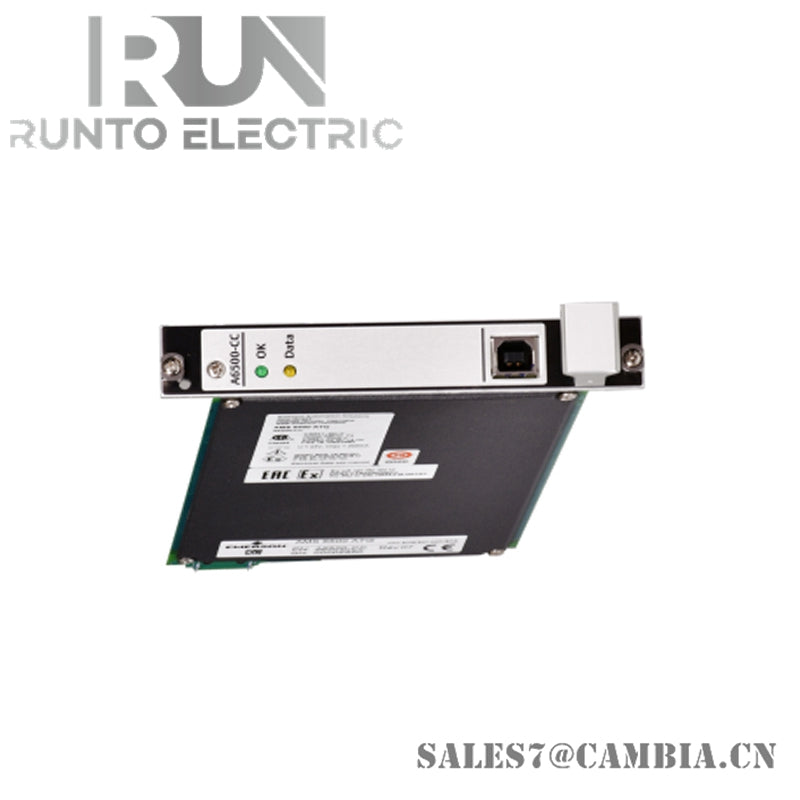

Epro A6500-CC System Communication Card

Description

The Emerson Epro A6500-CC is a System Communication Card, designed for high-reliability data transmission in industrial automation environments. It serves as a ModBus and Rack Interface Module, ensuring seamless integration with AMS A6500 ATG modules for machinery protection and monitoring.

Specifications

• Dimensions: 447.7 mm × 41.2 mm × 133.35 mm (17.63 in × 1.62 in × 5.25 in)
• Weight: 2.3 kg (5.07 lbs)
• Power Requirements: 24 VDC, 1.5 A max
• Communication Protocols: Modbus TCP/IP, Modbus RTU, OPC UA
• Ethernet Data Rate: 10/100 Mbit
• USB Data Rate: 12 Mbit/s
• Operating Temperature: -20°C to 70°C (-4°F to 158°F) with forced cooling
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity Tolerance: 5% to 95%, non-condensing
• Vibration Resistance: IEC 60068-2-6 (0.15mm, 10–55Hz; 20m/s², 55–150Hz)
• Compliance: CE, ATEX, IEC-Ex, CSA certifications

Features

• Reads parameters from all AMS A6500 ATG modules and outputs via Modbus TCP/IP or RTU
• Supports OPC UA for third-party system integration
• API 670 compliant for machinery protection applications
• Hot-swappable module for easy maintenance
• Password-protected configuration for security
• SD-Card support for AMS 6500 ATG Prediction functionality
• SNTP time synchronization for accurate data logging
