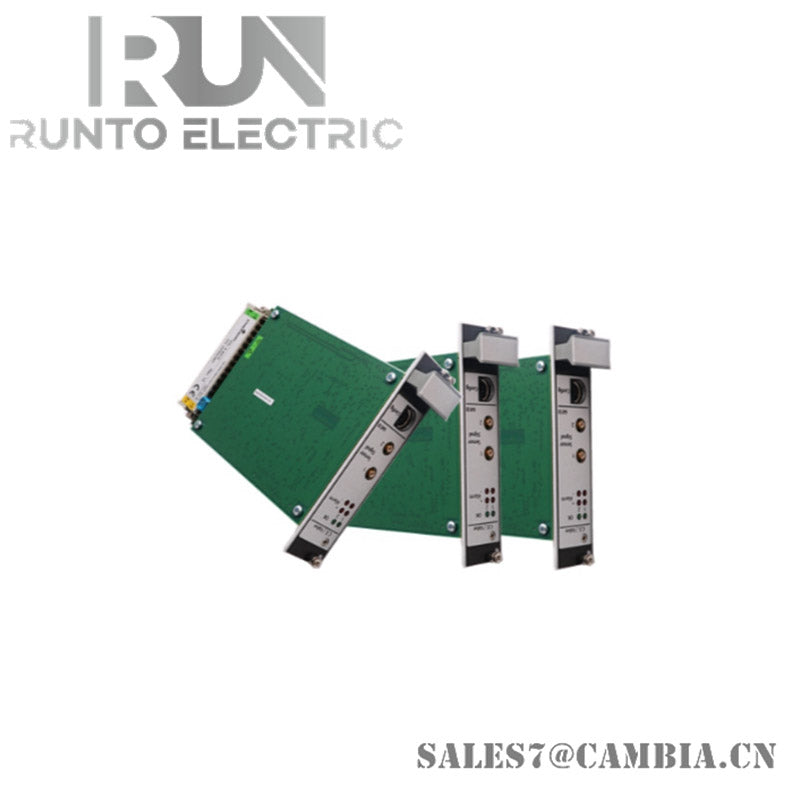

Epro A6500-UM Universal Measurement Card

Description

The Emerson Epro A6500-UM is a Universal Measurement Card designed for the AMS 6500 ATG machinery protection system. It supports a wide range of sensor types and provides both digital and analog outputs, enabling precise monitoring of critical machine parameters.

Specifications

• Sensor Inputs: 2 channels (independent or combined)
• Supported Sensors: Eddy-current, piezoelectric (accelerometer/velometer), seismic, LF bearing vibration, Hall-effect, LVDT (with A6500-LC)
• Digital I/O: 5 digital inputs, 6 digital outputs
• Analog Output: 0/4–20 mA, electrically isolated
• Communication: RS-485 to A6500-CC Com Card; Modbus RTU/TCP/IP; USB for configuration
• Voltage Range: -1 V to -22 V (eddy-current); +1 V to +23 V (piezoelectric)
• Frequency Range: 0 to 18,750 Hz
• Operating Temperature: -20°C to +70°C
• Protection Class: IP20
• Power Consumption: Max. 6W
• Compliance: CE, ATEX, IEC-Ex, CSA, API 670

Features

• Versatile Measurement Functions: Shaft absolute/relative vibration, eccentricity, case vibration, thrust/rod position, valve position, speed, key signals
• Hot-Swappable Module: Enables easy maintenance without system shutdown
• Compact Design: 3U size, 1-slot module reduces cabinet space
• Self-Diagnostics: Monitors hardware, temperature, sensor, and cable integrity
• Buffered Outputs: Front and rear proportional outputs
• Remote Configuration: Limit multiply and trip bypass selectable remotely
• Environmental Robustness: Shock and vibration resistant, wide temperature range
• Global Certifications: Suitable for hazardous areas and marine applications
