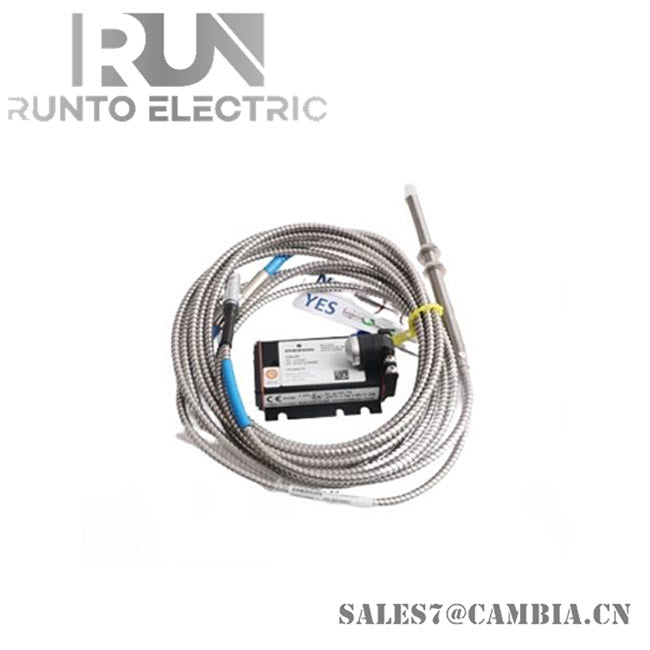

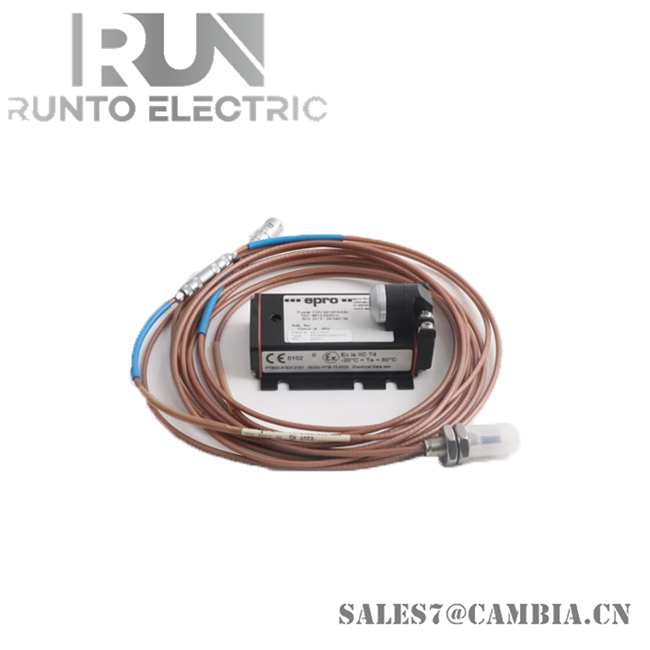

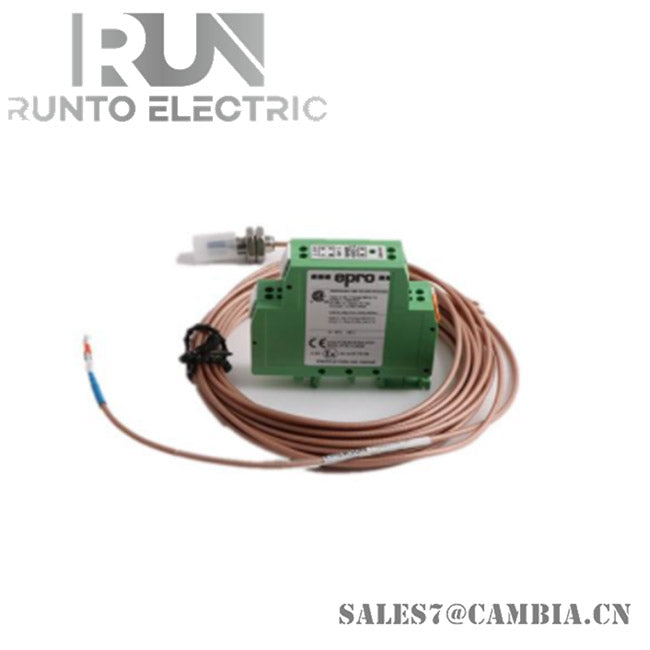

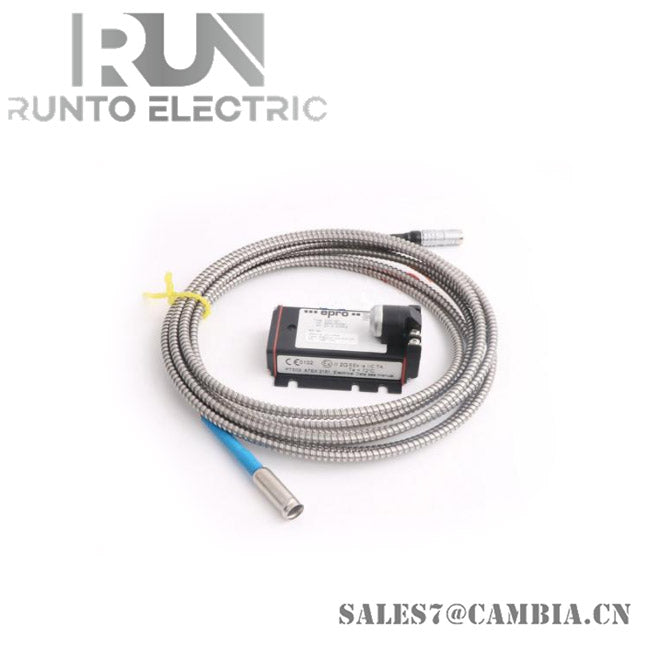

Epro PR6423/002-030 is an 8mm Eddy Current Sensor

Description

The Epro PR6423/002-030 module is used to measure radial and axial shaft dynamic displacement, position, eccentricity, and speed in critical turbomachinery such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.

Specifications

• Type: Eddy Current Sensor
• Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils)
• Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% at 0 to 45°C
• Deviation from Best Fit Straight Line (DSL): ±0.025 mm (±1 mil) at 0 to 45°C
• Minimum Shaft Diameter: 25 mm (0.79 inches)
• Target Material: Ferromagnetic Steel (42CrMo4, AISI/SAE 4140)
• Protection Class: IP66, IEC 60529
• Operating Temperature Range:
  • Sensor (with 1m cable): -35 to +200°C (-31 to 392°F)
  • Cable & Connector Operating Temperature Range: -35 to +150°C (-31 to 302°F)
• Material: Sensor Tip (PEEK Polyetheretherketone)

Features

• High Sensitivity: Capable of detecting minute vibrations for early fault detection.
• Wide Operating Temperature Range: Suitable for various industrial environments.
• Robust Design: Built to withstand tough industrial conditions.
• Modbus RTU Communication: Ensures compatibility with various control systems.
• 4-20 mA Output: Standard output for easy integration with control systems.
