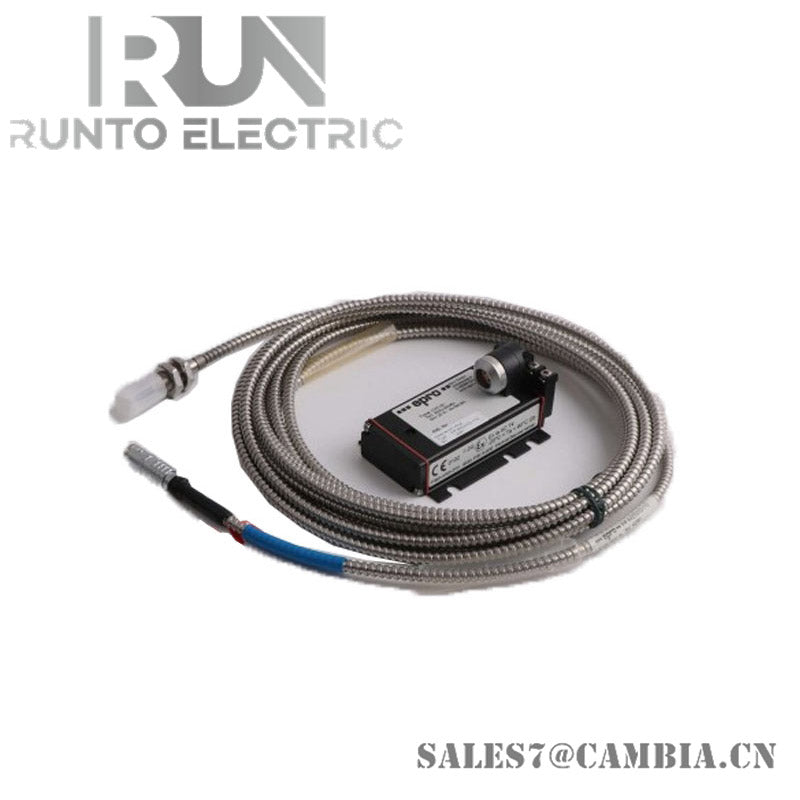

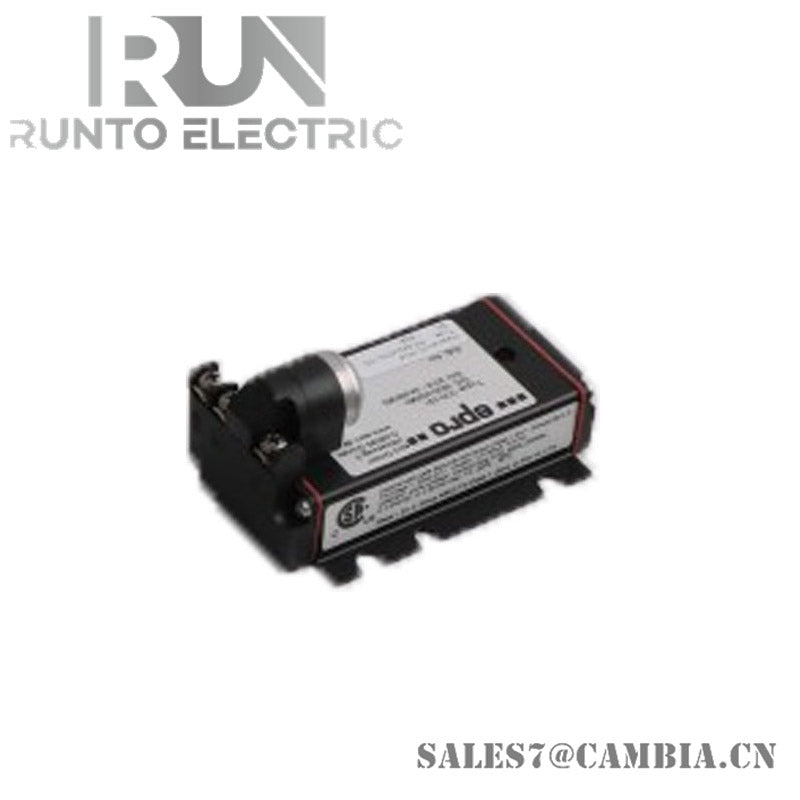

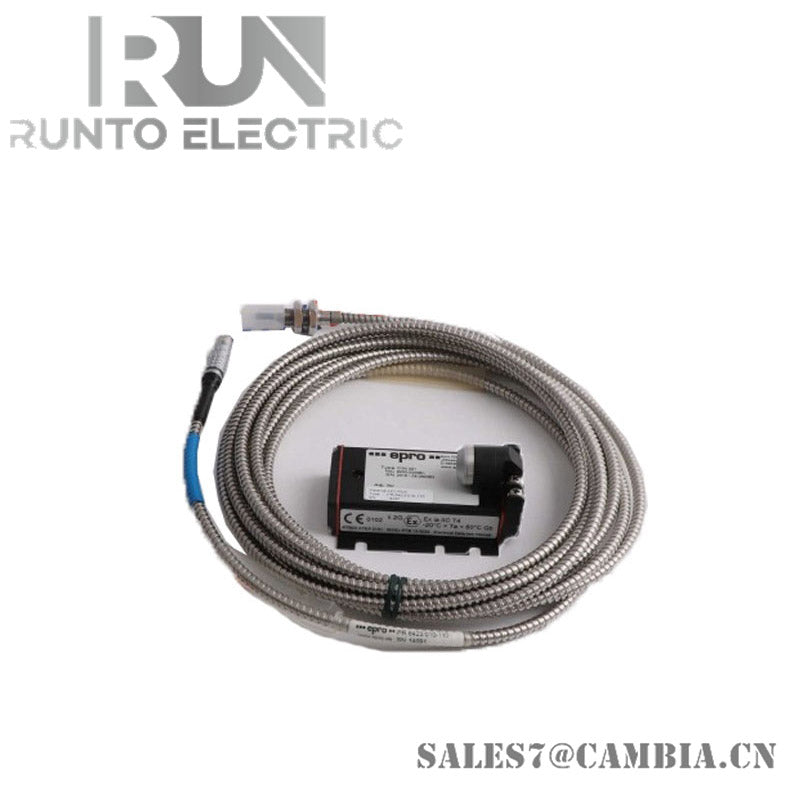

Epro PR6423/010-040 Eddy Current Signal Converter

Specifications:

• Brand: Epro
• Lead Time: 2-3 Working Days
• Condition: In Stock
• Product Name: PR6423-010-040
• Warranty: One Year Warranty

Product Details:

• Product: Epro PR6423-010-040
• Description: Eddy current displacement sensor with 10m Cable PR6423/010-040
• Operating Temperature Range: -35...+180°C (short-term up to +200°C)
• Temperature Range for Storage and Transport: -40...+70°C
• Thread of Sensor Housing: M10 x 1 or 3/8“-24-UNF-2A
• Housing Material: Stainless Steel
• Endurance to Pressure: 2 bar
• Vibration and Shock (Nominal Values at Max. 25°C): 5 g at 60 Hz
• Cable Length Options: 1 m at the transducer + 3 m extension cable (other lengths possible)
• Max. Cable Temperature: +200°C
• Connection Options: Lemo plug or open cable ends for screw terminal
• Direct Connection to MMS 3000 Transmitters: MMS 3110, MMS 3210, MMS 3311
• Cable Protection: PTFE
• Weight: Net weight without/with metal protection tube: 0.1/0.3 kg, Gross weight without/with metal protection tube: 0.2/0.5 kg
• Dimensions: Refer to drawings fig. 1 and fig. 2 for standard versions.

Additional Information:

• Availability: New and origin item in stock
• Warranty: One year warranty
